Magnets shallow pot with internal thread NdFeB
09072

Magnets shallow pot with internal thread NdFeB

go back

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core NdFeB.

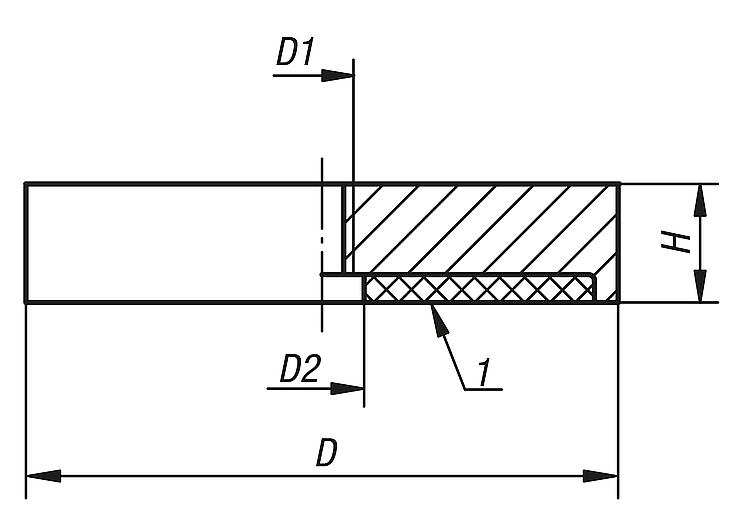

Version:Housing, electro zinc-plated.Note:Shielded systemTemperature range:max. 80°C.Drawing reference:
1) magnetic face
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 09072 Magnets shallow pot with internal thread NdFeB 143 kB

Drawings

Magnets shallow pot with internal thread NdFeB

Item selection/filter

Order No.

DD1D2HMagnetic
force
N
CADAcc.PriceOrder
09072-0132M55,57330 on request
09072-0240M510,58550 on request
09072-0363M1011,7141100 on request
09072-0475M1013151750 on request
