09094

Magnets deep pot

Products
- Product overview
  - Flexible standard component system
    - Magnets
      - Magnets deep pot

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core AlNiCo.Version:Housing painted red.Note:Hard magnet in aluminium housing and steel jacket. Shielded system. Pot magnets are used for retaining, lifting and mounting in fixtures.

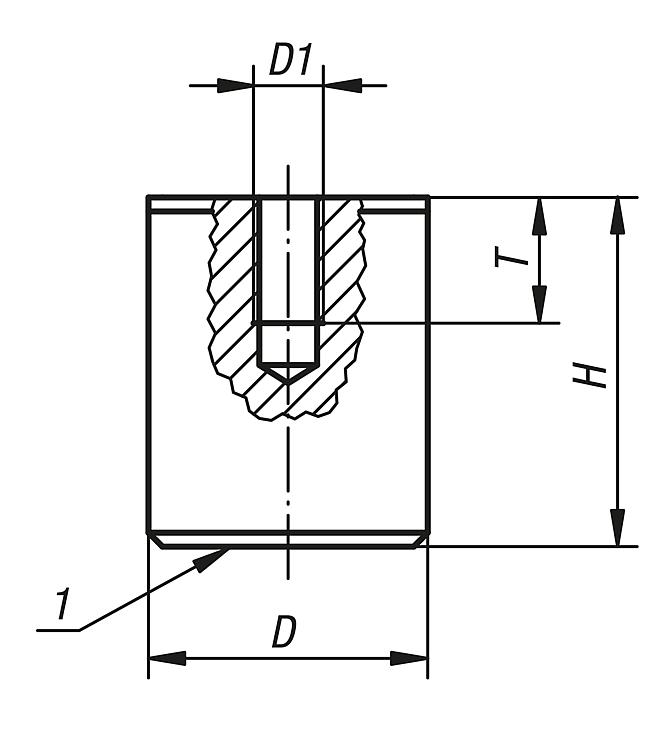

Due to the painted surface, the diameter D can be up to +0.8 mm.Temperature range:max. 450°C.Drawing reference:

1) magnetic face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09094 Magnets deep pot

Drawings

Magnets deep pot

Item selection/filter

	17 21 27 35 65	M6 M12	16 19 25 30 43	4 5 6 9 13	18 28 65 115 400				Reset
Order No.	D	D1	H	T	Magnetic force N	CAD	Acc.	Price	Order
09094-01	17	M6	16	4	18			on request
09094-02	21	M6	19	5	28			on request
09094-03	27	M6	25	6	65			on request
09094-04	35	M6	30	9	115			on request
09094-05	65	M12	43	13	400			on request
