Magnets shallow pot

Products
- Product overview
  - Flexible standard component system
    - Magnets
      - Magnets shallow pot

Item description/product images

DescriptionMaterial:Housing, steel.

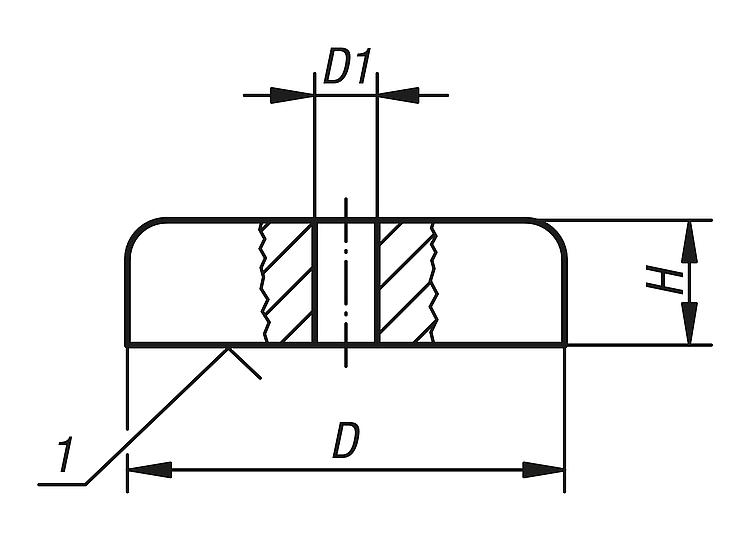

Magnetic core AlNiCo.Version:Housing painted red.Note:Shielded system. Shallow pot magnets are used in fixtures with minimal space. Temperature range:max. 450°C.On request:Other colours.Drawing reference:

1) magnetic face

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09096 Magnets shallow pot

117 kB

Technical data for retaining magnets and raw magnets

159 kB

Drawings

Item selection/filter

Order No.	D	D1	H	Magnetic force N	Price
09096-01	19	3,5	8	30	on request
09096-02	29	5	9	55	on request
09096-03	38	5	10,5	95	on request
