      - Magnets shallow pot with through hole NdFeB, with rubber protective jacket

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core NdFeB (neodym).
Protective rubber jacket, synthetic rubber.Version:Housing, electro zinc-plated.

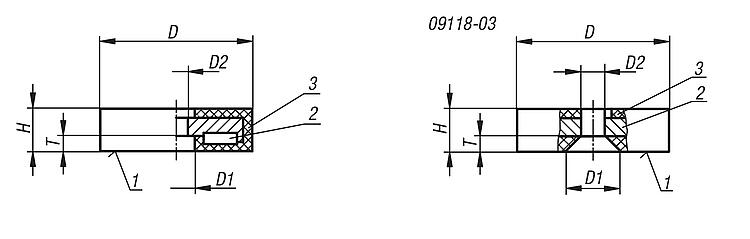

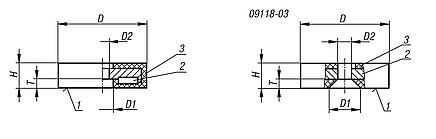

Black protective rubber jacket.Note:Shallow pot magnets, shielded system. With rubber protective jacket for protecting sensitive surfaces. The coefficient of friction is increased by the rubber jacket so that high lateral friction is achieved.Temperature range:max. 60°C.Drawing reference:

1) magnetic face
2) magnet
3) rubber

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09118 Magnets shallow pot with through hole NdFeB, with rubber protective jacket

105 kB

Drawings

Item selection/filter

Order No.	D	D1	D2	H	T	Magnetic force N	Price
09118-01	22	8,2	4	6	3,5	35	on request
09118-02	31	9	6	6	3,5	75	on request
09118-03	43	12,8	7,5	6	4,2	85	on request
09118-04	57	25,3	8	7,6	3,3	175	on request
09118-05	66	22	5,5	8,5	3,2	210	on request
