        Swivel and fixed castors standard version

Item description/product images

Show/filter all items

DescriptionMaterial:Housing steel plate.
Wheel body PA 6 with abrasion-resistant polyurethane tread.Version:Housing press formed.
Double ball bearing with ball shield in the castor head.
Plain bearing in the wheels.Note:The wheels are unbreakable, maintenance-free and non-corroding. Wheel axle bolted. Tread non-marking.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95024 Swivel and fixed castors standard version

358 kB

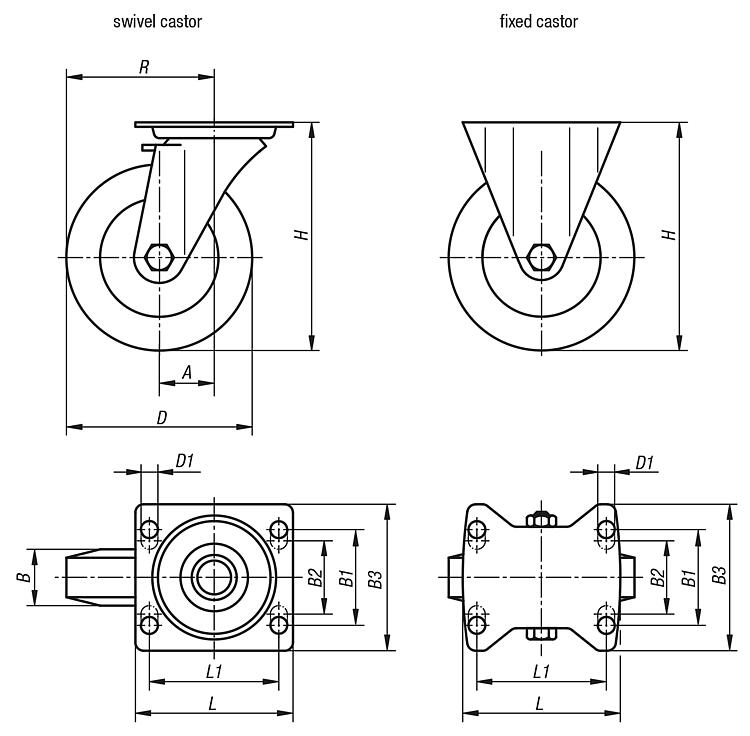

Drawings (total overview)

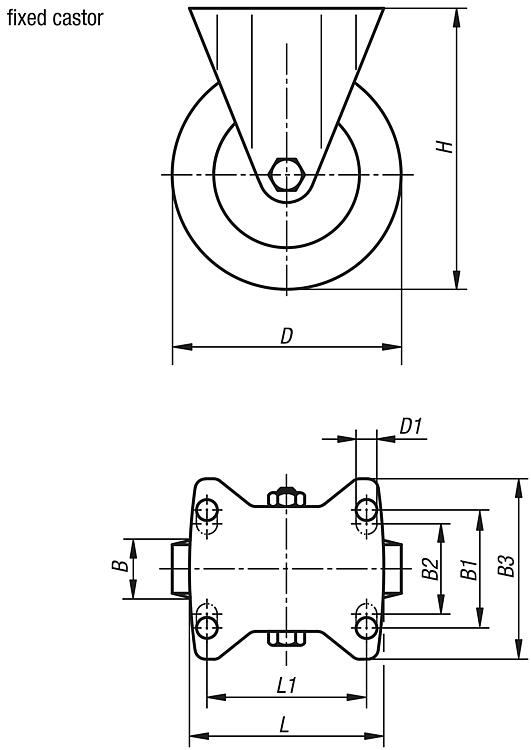

Fixed castors

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	Permissible load kg	Price
95024-100351	Fixed castor	without locking system	plain bearing	35	60	-	85	100	9	125	100	80	200	on request
95024-125351	Fixed castor	without locking system	plain bearing	40	60	-	85	125	9	150	100	80	200	on request
95024-150401	Fixed castor	without locking system	plain bearing	45	80	75	110	150	11	190	140	105	400	on request
95024-200501	Fixed castor	without locking system	plain bearing	50	80	75	110	200	11	235	140	105	400	on request

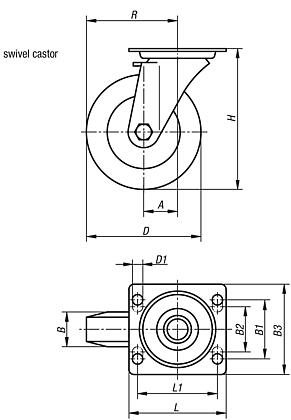

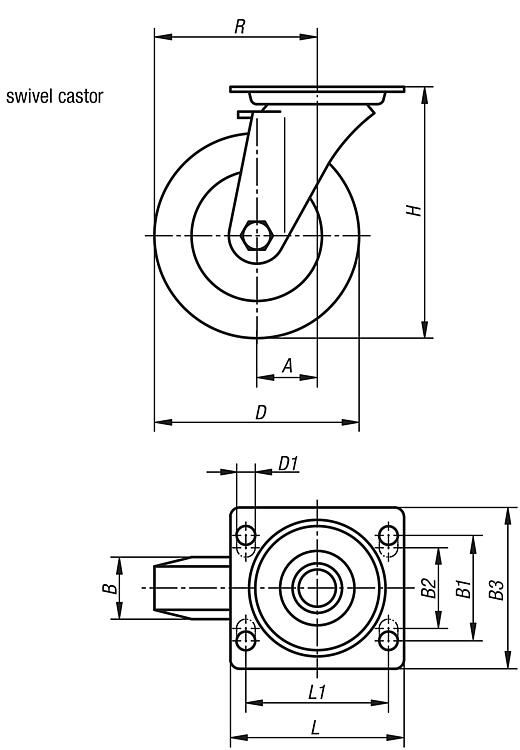

Swivel castors

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	Price
95024-10035	Swivel castor	without locking system	plain bearing	36	35	60	-	85	100	9	125	100	80	86	200	on request
95024-12535	Swivel castor	without locking system	plain bearing	40	40	60	-	85	125	9	150	100	80	102,5	200	on request
95024-15040	Swivel castor	without locking system	plain bearing	60	45	80	75	110	150	11	190	140	105	135	400	on request
95024-20050	Swivel castor	without locking system	plain bearing	65	50	80	75	110	200	11	235	140	105	165	400	on request

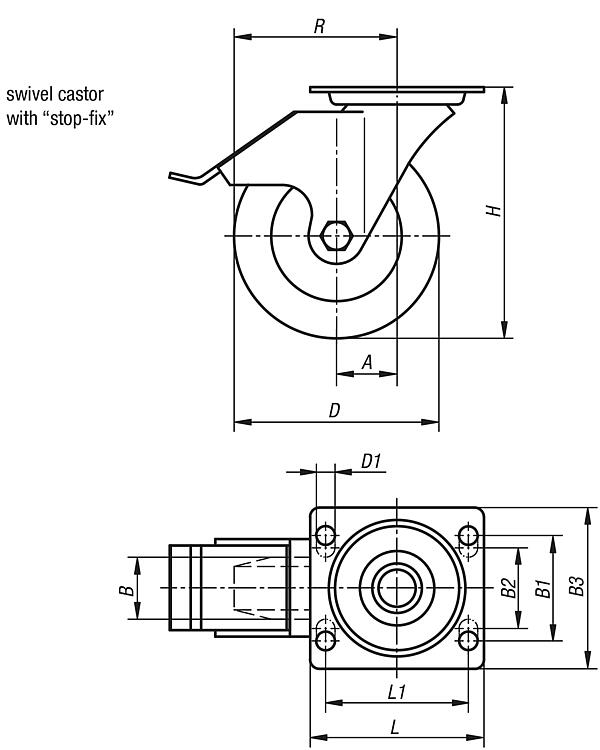

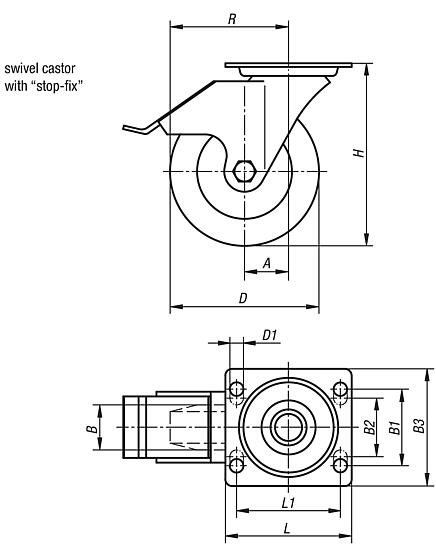

Swivel castors with "stop-fix"

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	Price
95024-100352	Swivel castor	with stop-fix locking system	plain bearing	36	35	60	-	85	100	9	125	100	80	86	200	on request
95024-125352	Swivel castor	with stop-fix locking system	plain bearing	40	40	60	-	85	125	9	150	100	80	102,5	200	on request
95024-150402	Swivel castor	with stop-fix locking system	plain bearing	60	45	80	75	110	150	11	190	140	105	135	400	on request
95024-200502	Swivel castor	with stop-fix locking system	plain bearing	65	50	80	75	110	200	11	235	140	105	165	400	on request
