        Steel plate swivel and fixed castors, electrically conductive with rubber tread, standard version

Item description/product images

Show/filter all items

DescriptionMaterial:Housing steel plate.
Wheels with thermoplastic rubber tread.
Wheel body polypropylene.Version:Housing press formed.
Double ball bearing in the castor head.
Plain bearing in wheels.Note:Wheel axle threaded. Swivel and fixed castors with mounting plate. Electrically conductive wheels, non-marking grey. The ohmic resistance of the wheel is less than 10⁴Ω. Application:Electrically conductive wheels on swivel and fixed castors are used to protect against electrostatic discharge generated by transport equipment or the transported goods. Damage to sensitive goods and painful electrostatic shocks to the personal is so prevented.Temperature range:-20 °C to +60 °C.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95016 Swivel and fixed castors steel plate, electrically conductive standard version

335 kB

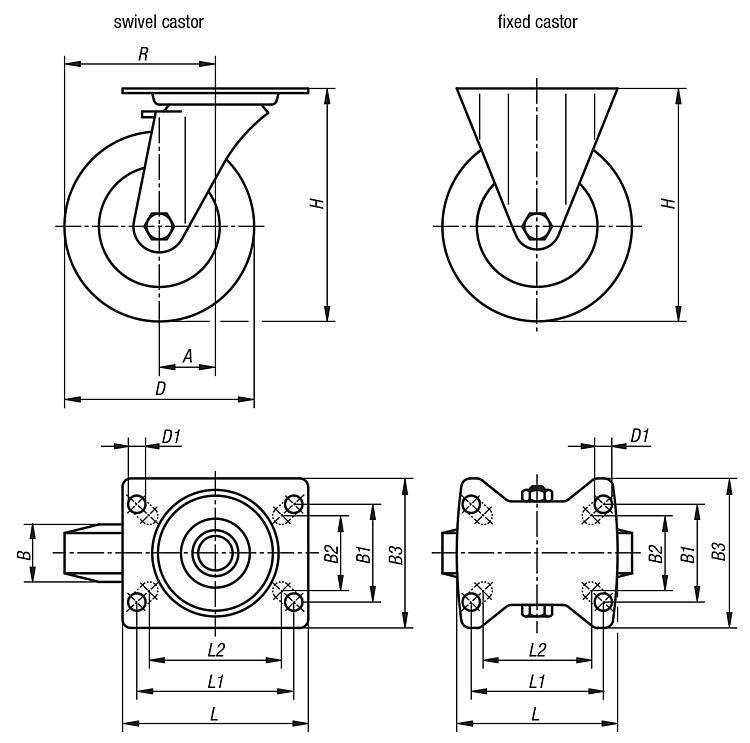

Drawings (total overview)

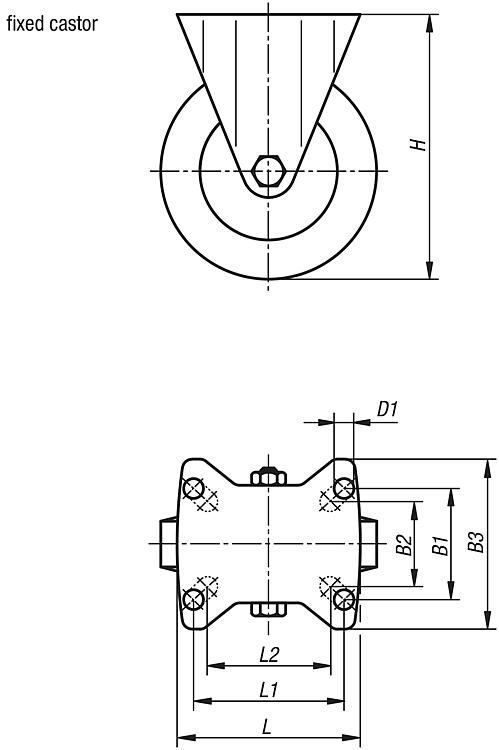

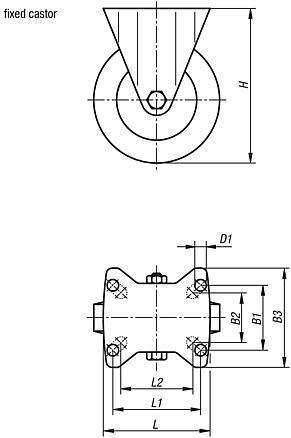

Steel plate fixed castors, electrically conductive with rubber tread, standard version

More information

Drawings

Steel plate fixed castors, electrically conductive with rubber tread, standard version

Item selection/filter

	without locking system	plain bearing	32 40	55 75	60 80	85 110	80 100 125 160 200	9 11	100 140	80 105	102 125 150 195 235	76 -	65 70 80 130 160				Reset
Order No.	Version 1	Wheel bearing	B	B1	B2	B3	D	D1	L	L1	H	L2	Permissible load kg	CAD	Acc.	Price	Order
95016-11080321	without locking system	plain bearing	32	55	60	85	80	9	100	80	102	76	65			on request
95016-11100321	without locking system	plain bearing	32	55	60	85	100	9	100	80	125	76	70			on request
95016-11125321	without locking system	plain bearing	32	55	60	85	125	9	100	80	150	76	80			on request
95016-11160401	without locking system	plain bearing	40	75	80	110	160	11	140	105	195	-	130			on request
95016-11200401	without locking system	plain bearing	40	75	80	110	200	11	140	105	235	-	160			on request

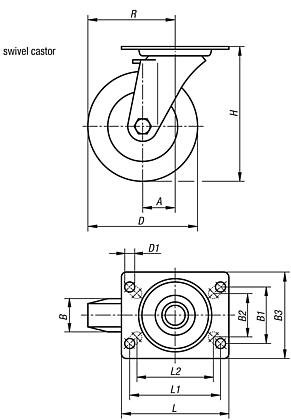

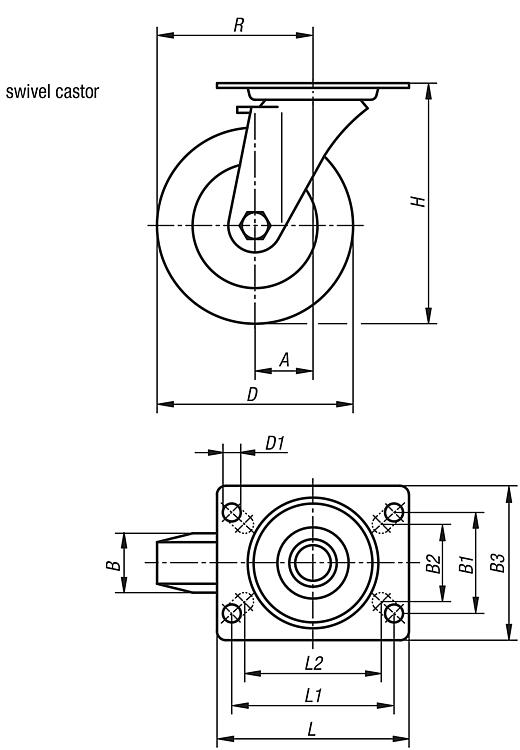

Steel plate swivel castors, electrically conductive with rubber tread, standard version

More information

Drawings

Steel plate swivel castors, electrically conductive with rubber tread, standard version

Item selection/filter

	without locking system	plain bearing	38 36 40 54	32 40	55 75	60 80	85 110	80 100 125 160 200	9 11	100 140	80 105	102 125 150 195 235	76 -	78 86 102,5 134 154	65 70 80 130 160				Reset
Order No.	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	L	L1	H	L2	R	Permissible load kg	CAD	Acc.	Price	Order
95016-1108032	without locking system	plain bearing	38	32	55	60	85	80	9	100	80	102	76	78	65			on request
95016-1110032	without locking system	plain bearing	36	32	55	60	85	100	9	100	80	125	76	86	70			on request
95016-1112532	without locking system	plain bearing	40	32	55	60	85	125	9	100	80	150	76	102,5	80			on request
95016-1116040	without locking system	plain bearing	54	40	75	80	110	160	11	140	105	195	-	134	130			on request
95016-1120040	without locking system	plain bearing	54	40	75	80	110	200	11	140	105	235	-	154	160			on request

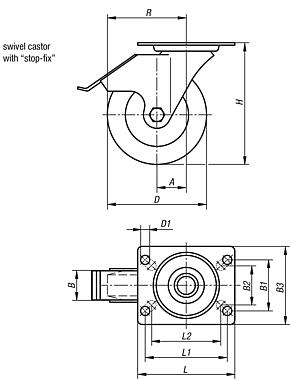

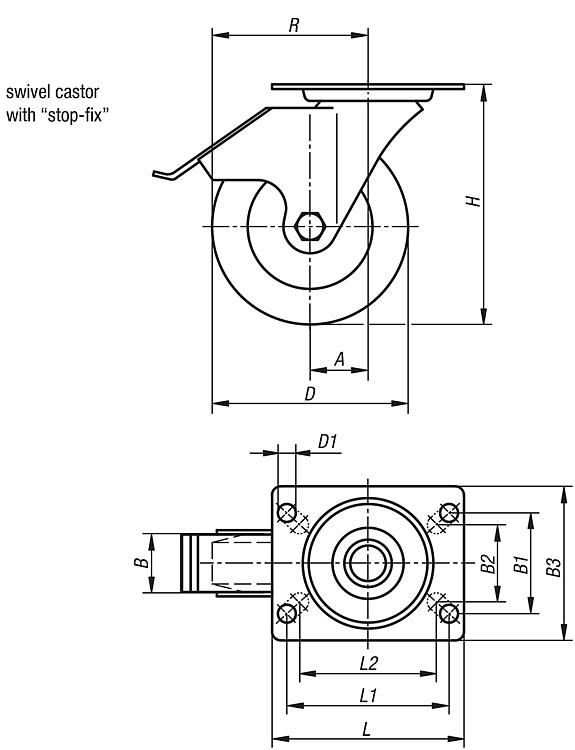

Steel plate swivel castors with stop-fix, electrically conductive with rubber tread, standard version

More information

Drawings

Steel plate swivel castors with stop-fix, electrically conductive with rubber tread, standard version

Item selection/filter

	with stop-fix locking system	plain bearing	38 36 40 54	32 40	55 75	60 80	85 110	80 100 125 160 200	9 11	100 140	80 105	102 125 150 195 235	76 -	78 86 102,5 134 154	65 70 80 130 160				Reset
Order No.	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	L	L1	H	L2	R	Permissible load kg	CAD	Acc.	Price	Order
95016-11080322	with stop-fix locking system	plain bearing	38	32	55	60	85	80	9	100	80	102	76	78	65			on request
95016-11100322	with stop-fix locking system	plain bearing	36	32	55	60	85	100	9	100	80	125	76	86	70			on request
95016-11125322	with stop-fix locking system	plain bearing	40	32	55	60	85	125	9	100	80	150	76	102,5	80			on request
95016-11160402	with stop-fix locking system	plain bearing	54	40	75	80	110	160	11	140	105	195	-	134	130			on request
95016-11200402	with stop-fix locking system	plain bearing	54	40	75	80	110	200	11	140	105	235	-	154	160			on request
