        Steel plate swivel and fixed castors with polyurethane elastomer tread, heavy duty version

Item description/product images

Show/filter all items

DescriptionMaterial:Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminium.Version:Housing, press-formed.

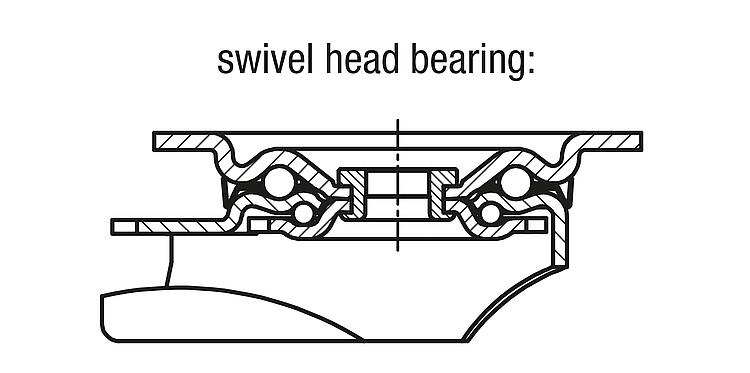

Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.Note:Wheel axle bolted.
Swivel and fixed castors with mounting plate.Application:Heavy loads can be easily transported using this load handling equipment. The roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.Temperature range:-25 °C to +70 °C

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95025-01 Swivel and fixed castors steel plate, heavy-duty version

383 kB

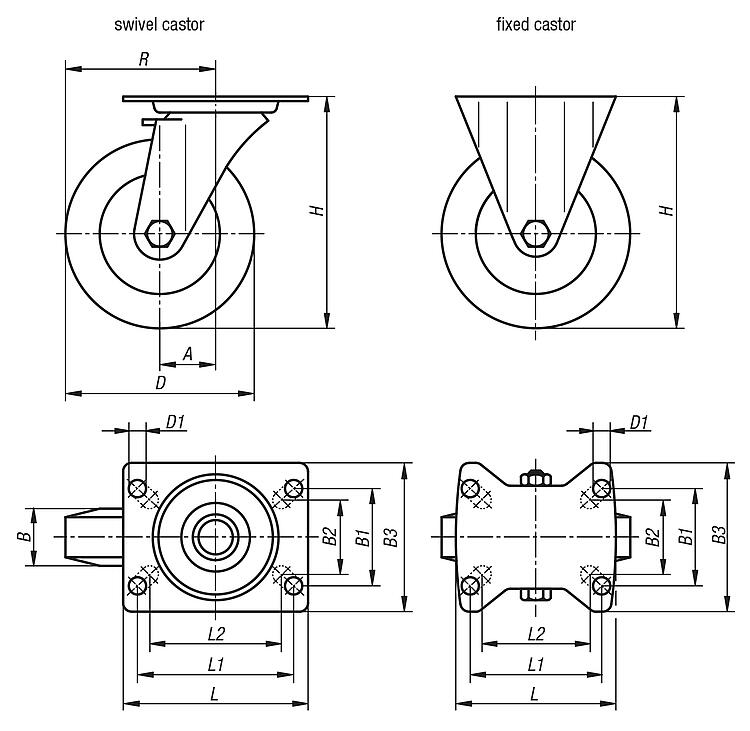

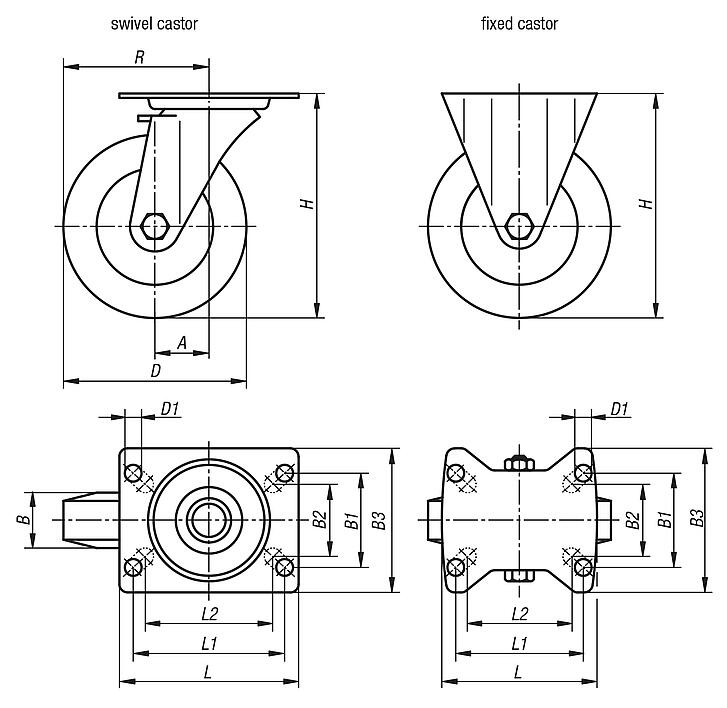

Drawings (total overview)

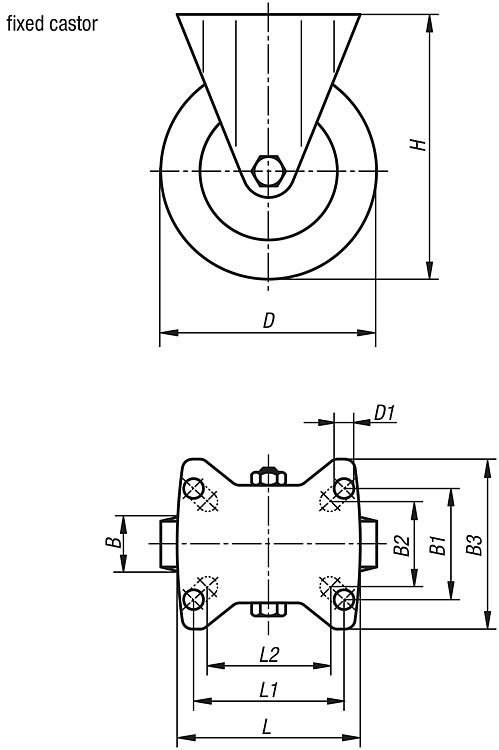

Steel plate fixed castors with polyurethane elastomer tread, heavy duty version

More information

Drawings

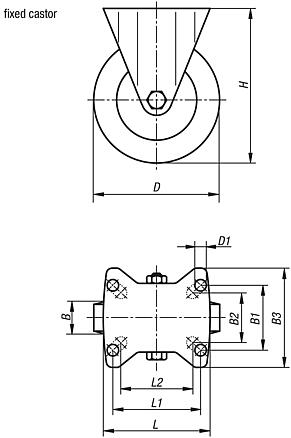

Steel plate fixed castors with polyurethane elastomer tread, heavy duty version

Item selection/filter

	Fixed castor	ball bearing	40 50	60 80	55 75	85 110	100 125 150 160 200	9 11	130 155 197 202 245	100 140	80 105	76 -	350 500 550 600				Reset
Order No.	Item	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	CAD	Acc.	Price	Order
95025-01-1010004011	Fixed castor	ball bearing	40	60	55	85	100	9	130	100	80	76	350			on request
95025-01-1010004013	Fixed castor	ball bearing	40	80	75	110	100	11	130	140	105	-	350			on request
95025-01-1012504011	Fixed castor	ball bearing	40	60	55	85	125	9	155	100	80	76	350			on request
95025-01-1012504013	Fixed castor	ball bearing	40	80	75	110	125	11	155	140	105	-	350			on request
95025-01-101500501	Fixed castor	ball bearing	50	80	75	110	150	11	197	140	105	-	500			on request
95025-01-101600501	Fixed castor	ball bearing	50	80	75	110	160	11	202	140	105	-	550			on request
95025-01-102000501	Fixed castor	ball bearing	50	80	75	110	200	11	245	140	105	-	600			on request

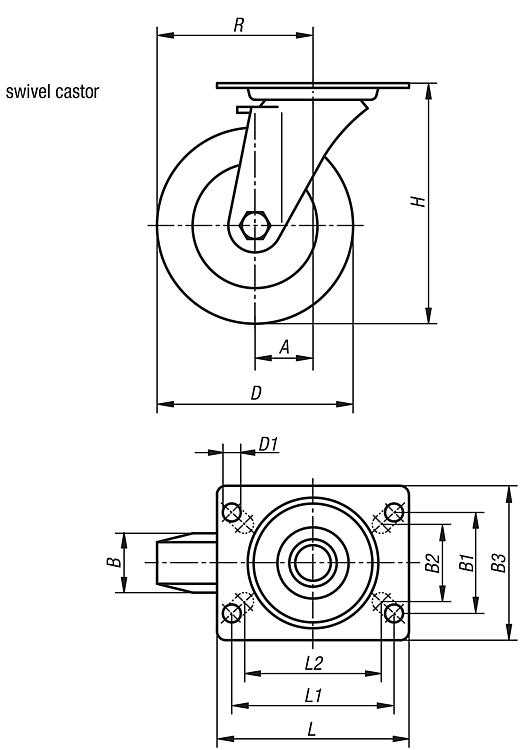

Steel plate swivel castors with polyurethane elastomer tread, heavy duty version

More information

Drawings

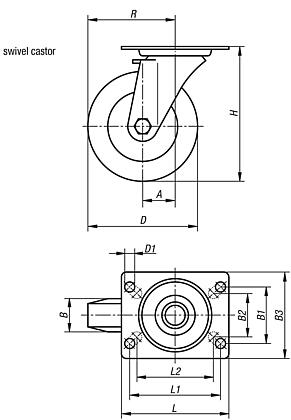

Steel plate swivel castors with polyurethane elastomer tread, heavy duty version

Item selection/filter

	Swivel castor	ball bearing	45 48 63 65	40 50	60 80	55 75	85 110	100 125 150 160 200	9 11	130 155 197 202 245	100 140	80 105	76 -	350 500 550 600				Reset
Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	CAD	Acc.	Price	Order
95025-01-101000401	Swivel castor	ball bearing	45	40	60	55	85	100	9	130	100	80	76	350			on request
95025-01-101000403	Swivel castor	ball bearing	45	40	80	75	110	100	11	130	140	105	-	350			on request
95025-01-101250401	Swivel castor	ball bearing	48	40	60	55	85	125	9	155	100	80	76	350			on request
95025-01-101250403	Swivel castor	ball bearing	48	40	80	75	110	125	11	155	140	105	-	350			on request
95025-01-10150050	Swivel castor	ball bearing	63	50	80	75	110	150	11	197	140	105	-	500			on request
95025-01-10160050	Swivel castor	ball bearing	63	50	80	75	110	160	11	202	140	105	-	550			on request
95025-01-10200050	Swivel castor	ball bearing	65	50	80	75	110	200	11	245	140	105	-	600			on request

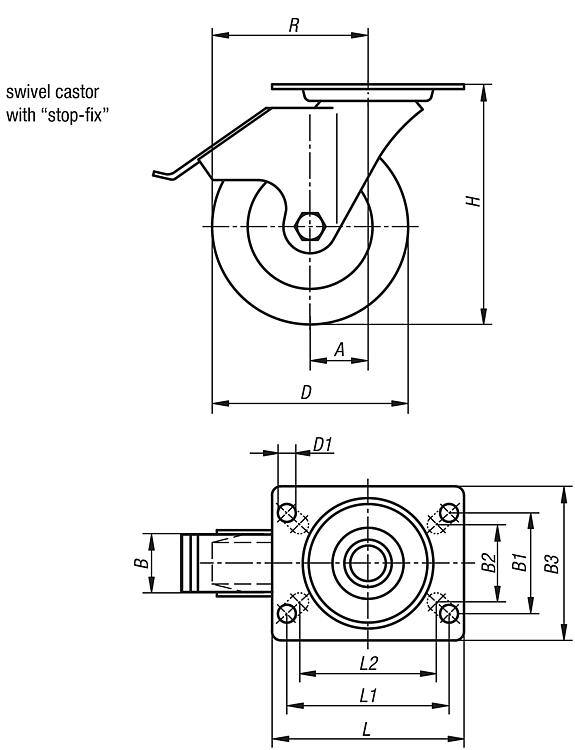

Steel plate swivel castors with stop-fix and polyurethane elastomer tread, heavy duty version

More information

Drawings

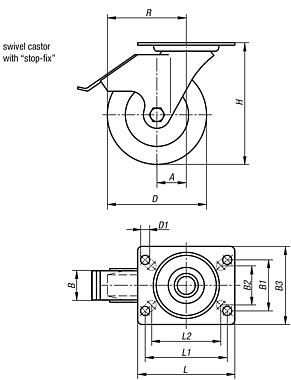

Steel plate swivel castors with stop-fix and polyurethane elastomer tread, heavy duty version

Item selection/filter

	Swivel castor	ball bearing	45 48 63 65	40 50	60 80	55 75	85 110	100 125 150 160 200	9 11	130 155 197 202 245	100 140	80 105	76 -	350 500 550 600				Reset
Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	CAD	Acc.	Price	Order
95025-01-1010004021	Swivel castor	ball bearing	45	40	60	55	85	100	9	130	100	80	76	350			on request
95025-01-1010004023	Swivel castor	ball bearing	45	40	80	75	110	100	11	130	140	105	-	350			on request
95025-01-1012504021	Swivel castor	ball bearing	48	40	60	55	85	125	9	155	100	80	76	350			on request
95025-01-1012504023	Swivel castor	ball bearing	48	40	80	75	110	125	11	155	140	105	-	350			on request
95025-01-101500502	Swivel castor	ball bearing	63	50	80	75	110	150	11	197	140	105	-	500			on request
95025-01-101600502	Swivel castor	ball bearing	63	50	80	75	110	160	11	202	140	105	-	550			on request
95025-01-102000502	Swivel castor	ball bearing	65	50	80	75	110	200	11	245	140	105	-	600			on request
