        Swivel and fixed castors steel plate, electrically conductive, heavy-duty version

Item description/product images

Show/filter all items

DescriptionMaterial:Housing steel plate.
Wheels with thermoplastic rubber tread.
Wheel body polypropylene.Version:Housing press formed.
Double ball bearing in the castor head.
Plain bearing in wheels.Note:Wheel axle threaded. Swivel and fixed castors with mounting plate. Electrically conductive wheels, non-marking grey. The ohmic resistance of the wheel is less than 10⁴Ω. Application:Electrically conductive wheels on swivel and fixed castors are used to protect against electrostatic discharge generated by transport equipment or the transported goods. Damage to sensitive goods and painful electrostatic shocks to the personal is so prevented.Temperature range:-20 °C to +60 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95012 Swivel and fixed castors steel plate, electrically conductive, heavy-duty version

381 kB

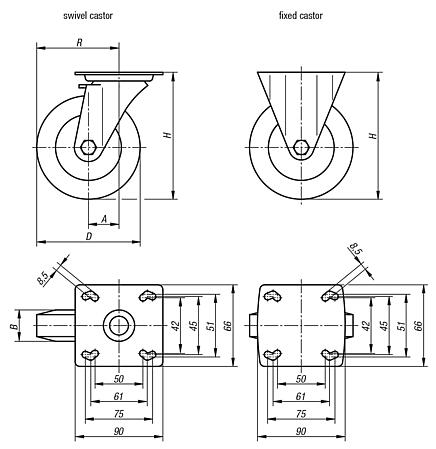

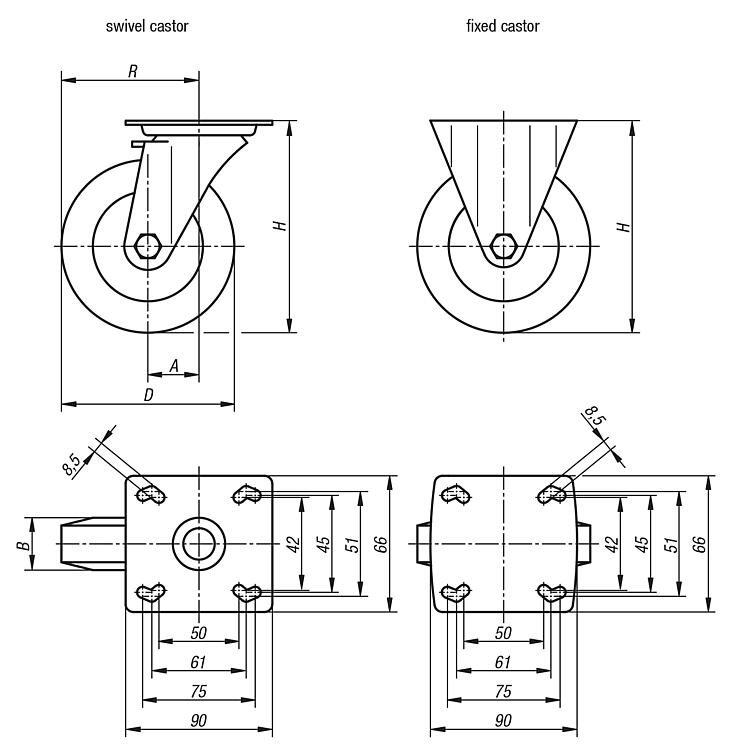

Drawings (total overview)

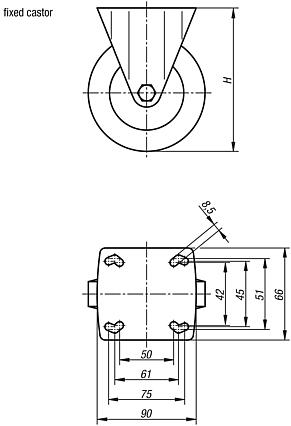

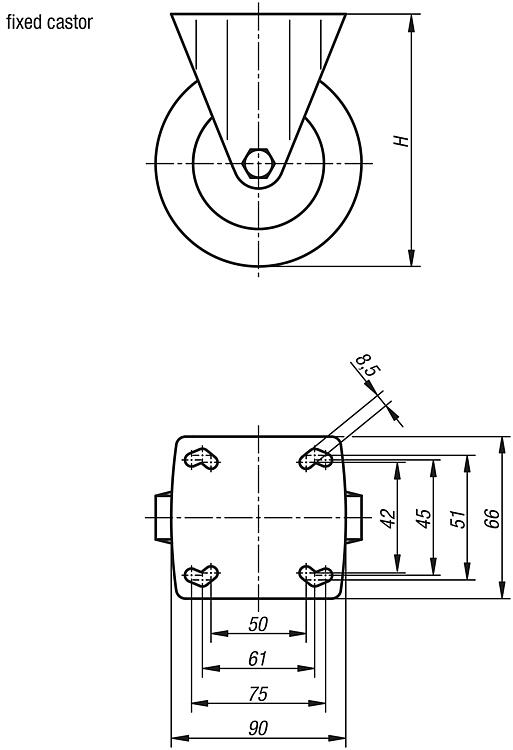

Fixed castor, electrically conductive

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	B	D	H	Permissible load kg	Price
95012-11080321	Fixed castor	without locking system	plain bearing	32	80	111	65	on request
95012-11100321	Fixed castor	without locking system	plain bearing	32	100	136	70	on request
95012-11125321	Fixed castor	without locking system	plain bearing	32	125	161	80	on request

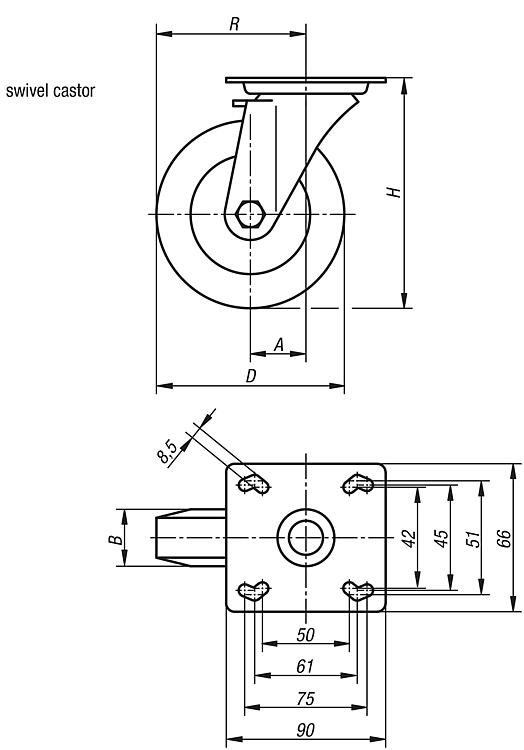

Swivel castor, electrically conductive

More information

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	D	H	R	Permissible load kg	Price
95012-1108032	Swivel castor	without locking system	plain bearing	40	32	80	111	80	65	on request
95012-1110032	Swivel castor	without locking system	plain bearing	40	32	100	136	90	70	on request
95012-1112532	Swivel castor	without locking system	plain bearing	40	32	125	161	102,5	80	on request

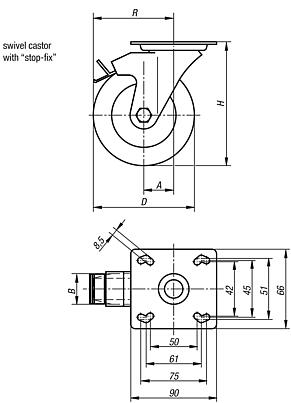

Swivel castor with stop fix, electrically conductive

More information

Drawings

Swivel castor with stop fix, electrically conductive

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	D	H	R	Permissible load kg	Price
95012-11080322	Swivel castor	with stop-fix locking system	plain bearing	40	32	80	111	80	65	on request
95012-11100322	Swivel castor	with stop-fix locking system	plain bearing	40	32	100	136	90	70	on request
95012-11125322	Swivel castor	with stop-fix locking system	plain bearing	40	32	125	161	102,5	80	on request
