        Steel plate swivel and fixed castors with elastic solid rubber tread, medium load version

Item description/product images

Show/filter all items

DescriptionMaterial:Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminium.Version:Housing, press-formed.

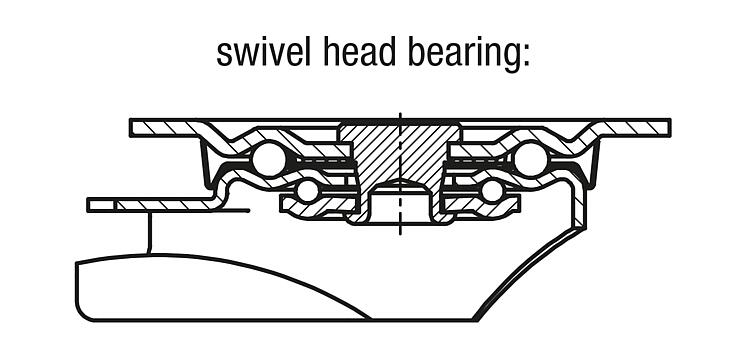

Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.Note:Wheel axle bolted.
Swivel and fixed castors with mounting plate.Application:Heavy loads can be easily transported using this load handling equipment. The roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.Temperature range:-25 °C to +70 °C

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95025 Swivel and fixed castors medium-duty version

399 kB

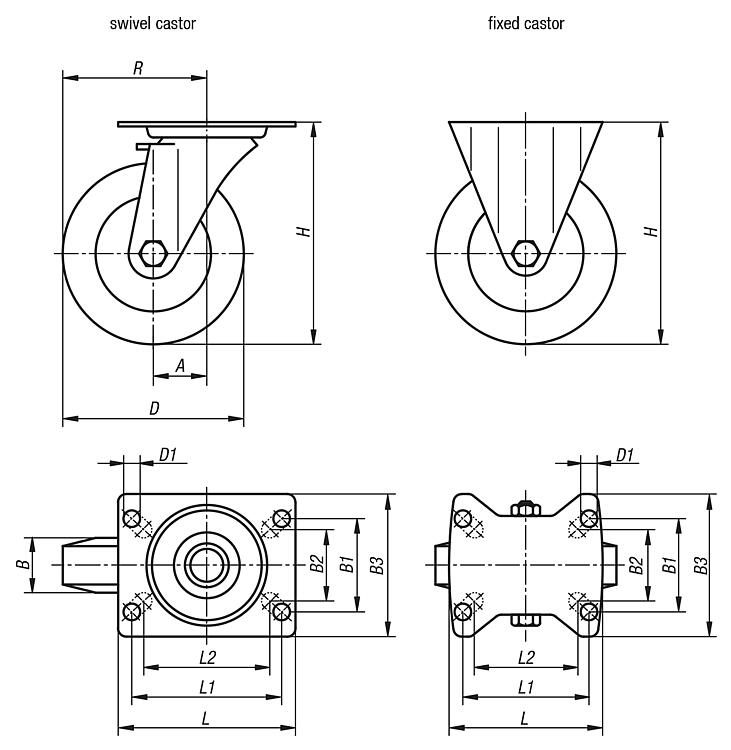

Drawings (total overview)

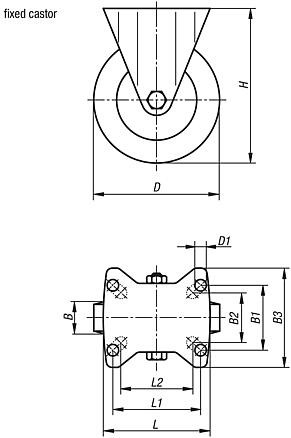

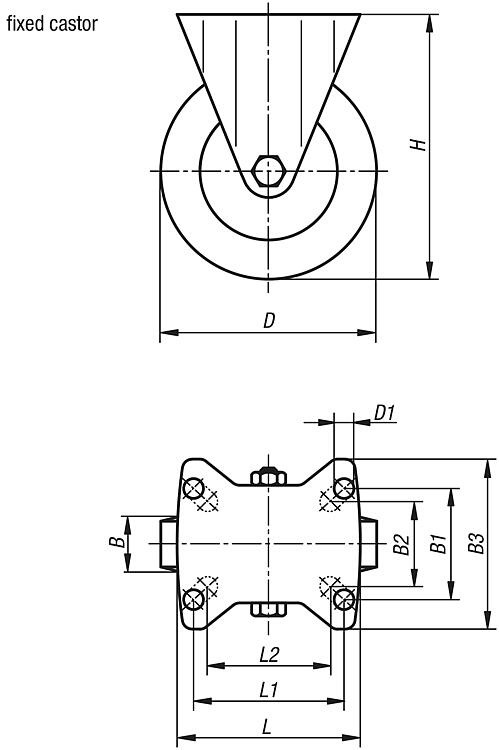

Steel plate fixed castors with elastic solid rubber tread, medium load version

More information

Drawings

Steel plate fixed castors with elastic solid rubber tread, medium load version

Item selection/filter

Order No.	Item	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	Price
95025-101000401	Fixed castor	ball bearing	40	60	55	85	100	9	125	100	80	76	200	on request
95025-101250401	Fixed castor	ball bearing	40	60	55	85	125	9	150	100	80	76	200	on request
95025-101500501	Fixed castor	ball bearing	50	80	75	110	150	11	190	140	105	-	400	on request
95025-101600501	Fixed castor	ball bearing	50	80	75	110	160	11	195	140	105	-	400	on request
95025-102000501	Fixed castor	ball bearing	50	80	75	110	200	11	235	140	105	-	400	on request

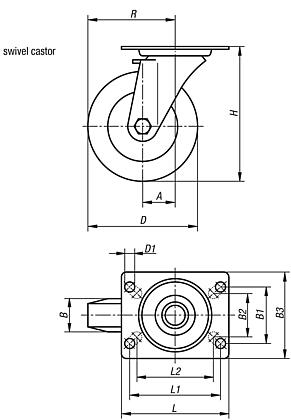

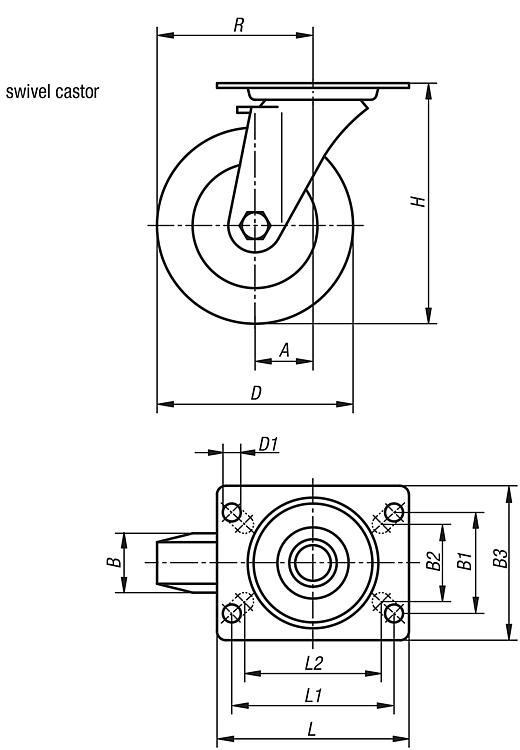

Steel plate swivel castors with elastic solid rubber tread, medium load version

More information

Drawings

Steel plate swivel castors with elastic solid rubber tread, medium load version

Item selection/filter

Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	R	Permissible load kg	Price
95025-10100040	Swivel castor	ball bearing	36	40	60	55	85	100	9	125	100	80	76	86	200	on request
95025-10125040	Swivel castor	ball bearing	40	40	60	55	85	125	9	150	100	80	76	102,5	200	on request
95025-10150050	Swivel castor	ball bearing	60	50	80	75	110	150	11	190	140	105	-	135	400	on request
95025-10160050	Swivel castor	ball bearing	60	50	80	75	110	160	11	195	140	105	-	140	400	on request
95025-10200050	Swivel castor	ball bearing	65	50	80	75	110	200	11	235	140	105	-	165	400	on request

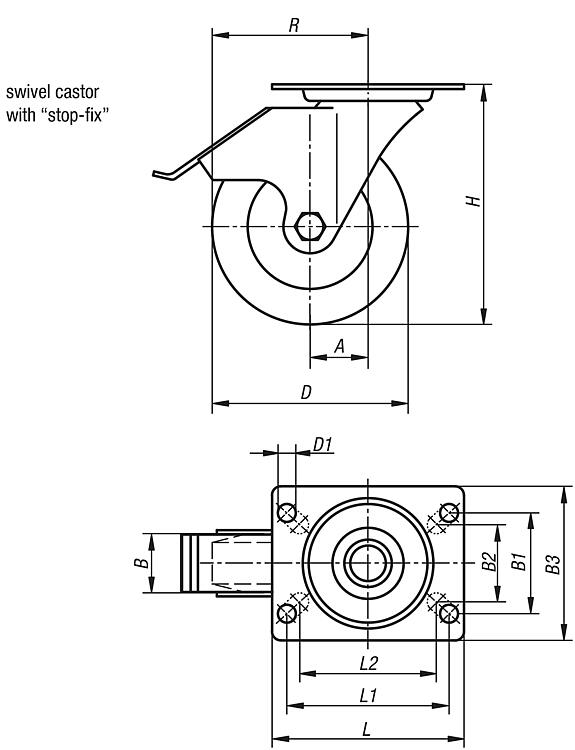

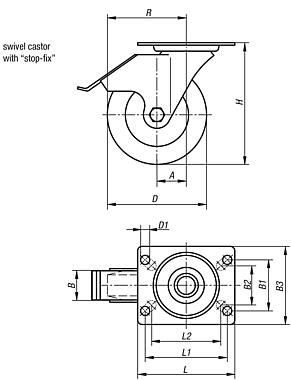

Steel plate swivel castors with stop-fix and elastic solid rubber tread, medium load version

More information

Drawings

Steel plate swivel castors with stop-fix and elastic solid rubber tread, medium load version

Item selection/filter

Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	R	Permissible load kg	Price
95025-101000402	Swivel castor	ball bearing	36	40	60	55	85	100	9	125	100	80	76	86	200	on request
95025-101250402	Swivel castor	ball bearing	40	40	60	55	85	125	9	150	100	80	76	102,5	200	on request
95025-101500502	Swivel castor	ball bearing	60	50	80	75	110	150	11	190	140	105	-	135	400	on request
95025-101600502	Swivel castor	ball bearing	60	50	80	75	110	160	11	195	140	105	-	140	400	on request
95025-102000502	Swivel castor	ball bearing	65	50	80	75	110	200	11	235	140	105	-	165	400	on request
