Dial gauge holders short version with thread

33012

Dial gauge holders short version with thread

Products
- Product overview
  - Measuring and testing components
    - Standard inspection and test fixture elements
      - Dial gauge holders short version with thread

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidised.
Collet and body tempered.Note:Dial gauge and probe are not included.
Dial gauges see 32540 and 32542.
Probes see 33020 up to 33026.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 33012 Dial gauge holders short version with thread

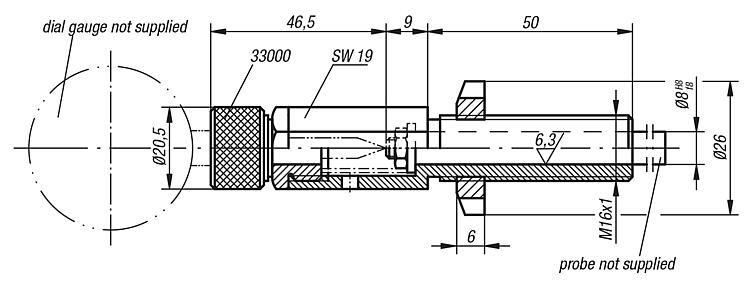

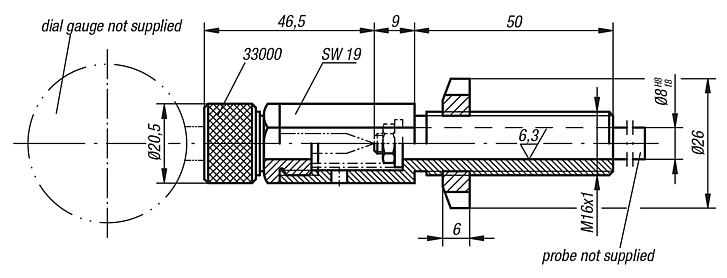

Drawings

Dial gauge holders short version with thread

Item selection/filter

Order No.	Supplied for the probe pin	CAD	Acc.	Price	Order
33012-08050	1 washer 5.3 x 14 x 11 hex nut M51 spring			on request
