Dial gauge holders short version with smooth shaft

33016

Dial gauge holders short version with smooth shaft

Products
- Product overview
  - Measuring and testing components
    - Standard inspection and test fixture elements
      - Dial gauge holders short version with smooth shaft

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidised.
Collet and body tempered.Note:Dial gauge and probe are not included.
Dial gauges see 32540 and 32542.
Probes see 33020 up to 33026.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 33016 Dial gauge holders short version with smooth shaft

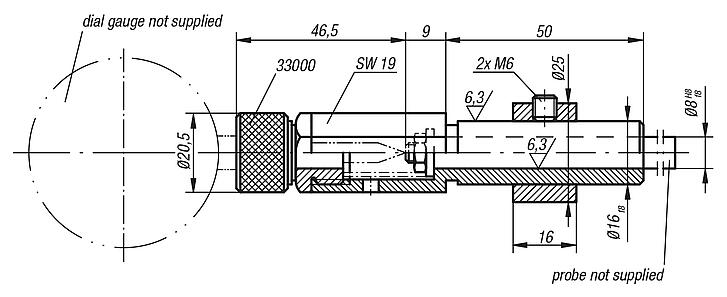

Drawings

Dial gauge holders short version with smooth shaft

Item selection/filter

Order No.	Supplied for the probe pin	CAD	Acc.	Price	Order
33016-08050	1 washer 5.3 x 14 x 11 hex nut M51 spring			on request
