Probe with reduced flat face

Products
- Product overview
  - Measuring and testing components
    - Standard inspection and test fixture elements
      - Probe with reduced flat face

Item description/product images

DescriptionMaterial:Steel.Version:Black oxidised.Note:These probes are suitable for dial gauge holders 33010 to 33016.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet c Probe with reduced face surface

136 kB

Datasheet 33024 Probe with reduced flat face

156 kB

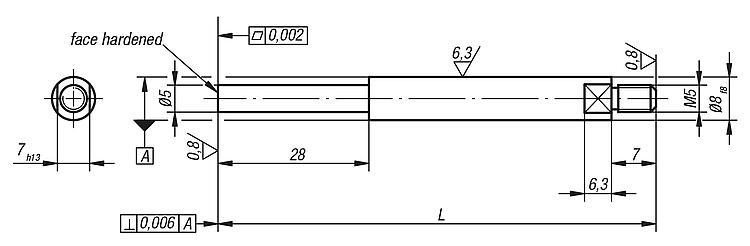

Drawings

Item selection/filter

	80 100 160 250				Reset
Order No.	L	CAD	Acc.	Price	Order
33024-08080	80			on request
33024-08100	100			on request
33024-08160	160			on request
33024-08250	250			on request
