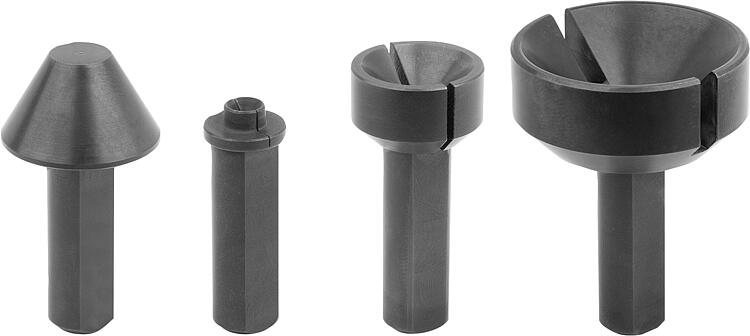

34024-01Centre, steel for tailstock with centre height 12 mm |
go back |
|
|
DescriptionMaterial:Steel.Version:Nitro-carburised.Note for ordering:Single.Note:Centre fits in the tailstock 34024.
The slit in Forms C and D enable the length of the workpiece to be measured.
D min. and D max. refer to the workpiece being measured.Accessory:Tailstock 34024.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

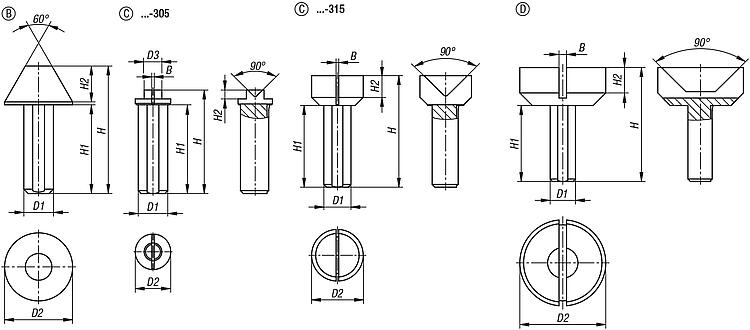

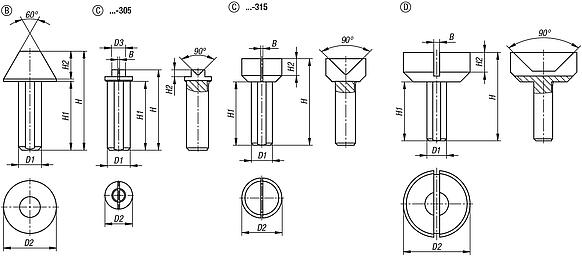

Drawings (total overview) |

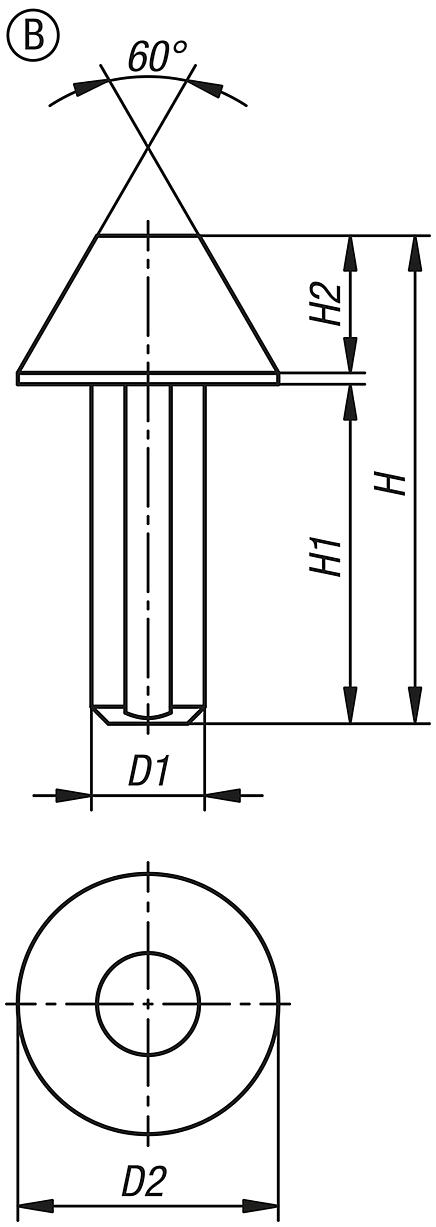

Centre, steel, for tailstock with centre height 12 mm, Form B, flattened |
More information |
| Order No. | Form | Form definition | D
min. | D
max. | D1
| D2 | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| 34024-01-222 | B | flattened | 10 | 22 | 10 | 23 | 43,1 | 30 | 12,1 |  | | on request | |
|

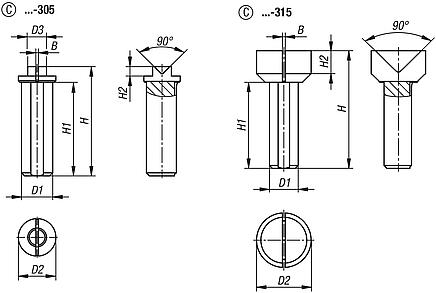

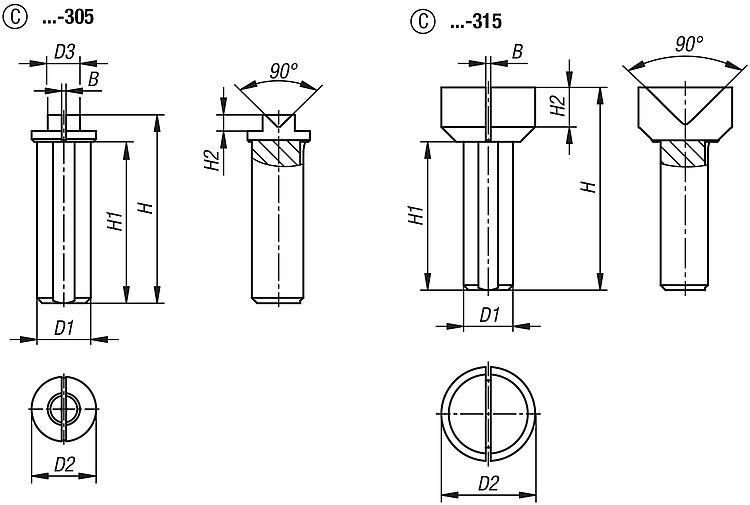

Centre, steel for tailstock with centre height 12 mm, Form C hollow cup centre |
More information |
| Order No. | Form | Form definition | B | D
min. | D
max. | D1
| D2 | D3 | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| 34024-01-305 | C | Hollow cup centres | 0,3 | 0,5 | 5 | 10 | 12 | 6 | 35 | 30 | 3 | | | on request | | | 34024-01-315 | C | Hollow cup centres | 1 | 2 | 15 | 10 | 19 | - | 41 | 30 | 8 | | | on request | |
|

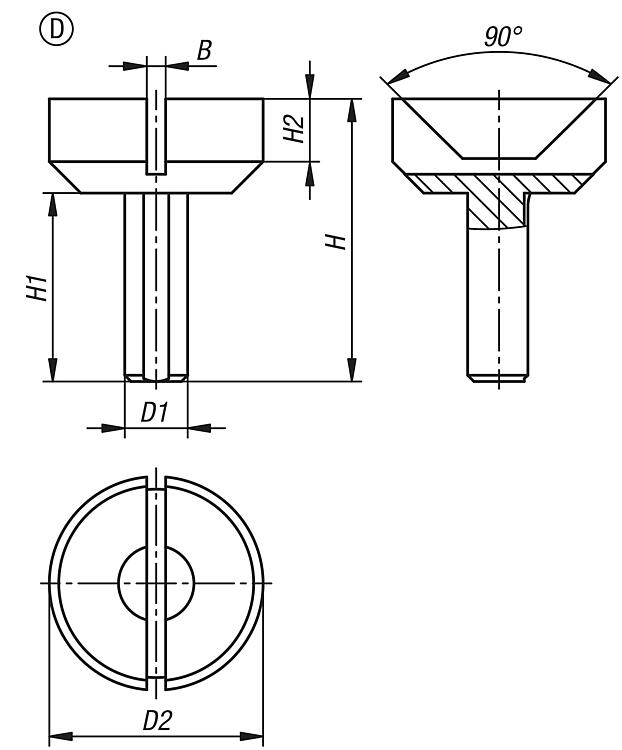

Steel centres for tailstock with centre height 12 mm, Form D flattened hollow cup |
More information |
| Order No. | Form | Form definition | B | D
min. | D
max. | D1
| D2 | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| 34024-01-430 | D | - | 3 | 14 | 30 | 10 | 34 | 45 | 30 | 10 | | | on request | |
|
