34024-06Centre, steel for tailstock with centre height 75 mm |
go back |
|
|
DescriptionMaterial:Steel.Version:Nitro-carburised.Note for ordering:In pairs.Note:Centre fits in the tailstock 34024-05.
The slit in Forms C and D enable the length of the workpiece to be measured.
D min. and D max. refer to the workpiece being measured.Accessory:Tailstock 34024-05.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

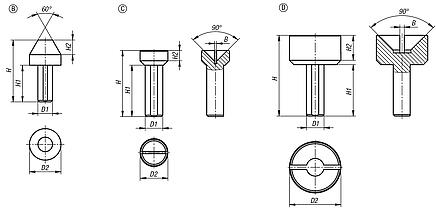

Drawings (total overview) |

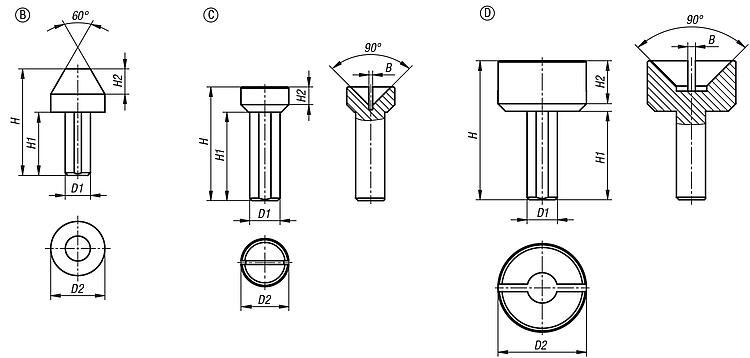

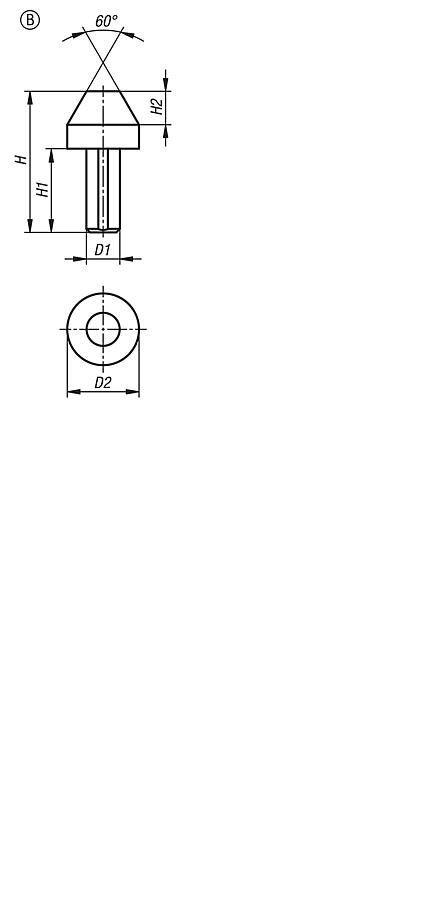

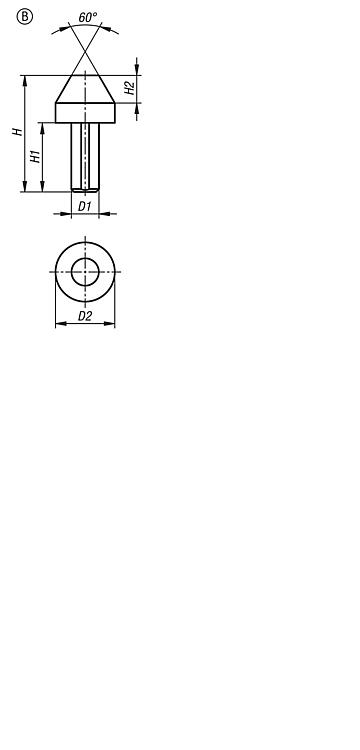

Centre, steel, for tailstock with centre height 75 mm, Form B, flattened |
More information |
| Order No. | Form | Form definition | D
min. | D
max. | D1
| D2 | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| 34024-06-230 | B | flattened | 15 | 30 | 12/14 | 30 | 59 | 35 | 14 |  | | on request | |
|

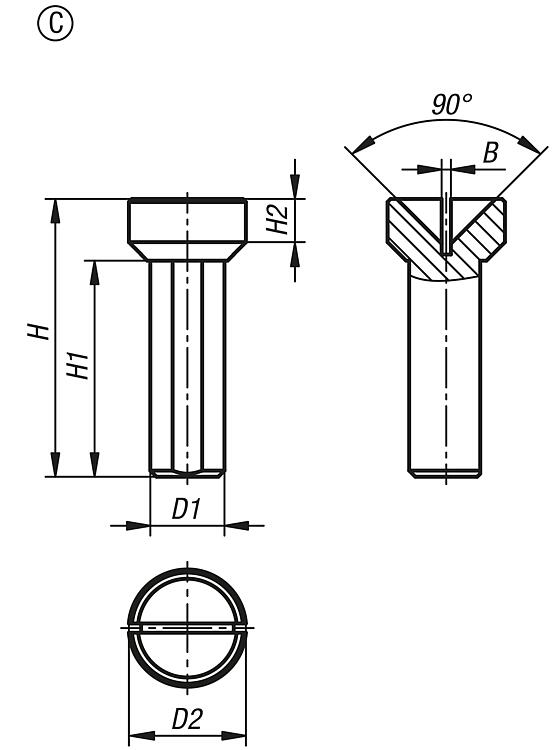

Centre, steel for tailstock with centre height 75 mm, Form C hollow cup centre |
More information |
| Order No. | Form | Form definition | B | D
min. | D
max. | D1
| D2 | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| 34024-06-315 | C | Hollow cup centres | 1,5 | 9 | 15 | 12/14 | 19 | 45 | 35 | 7 | | | on request | |
|

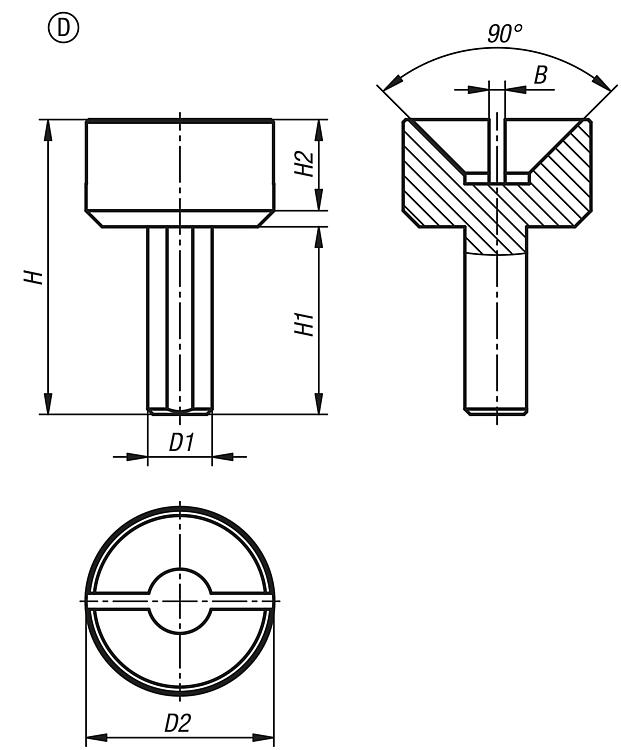

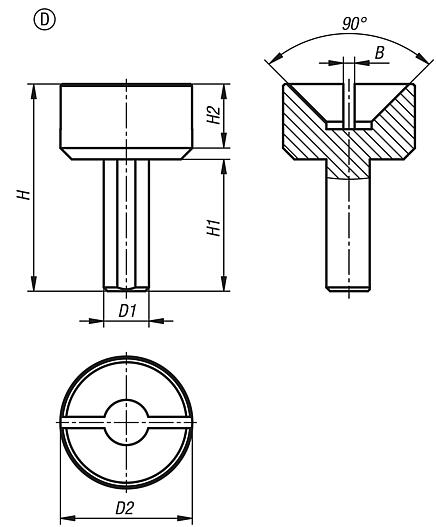

Centre, steel for tailstock with centre height 75 mm, Form D flattened hollow cup centre |
More information |
| Order No. | Form | Form definition | B | D
min. | D
max. | D1
| D2 | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| 34024-06-430 | D | - | 3 | 16 | 30 | 12/14 | 35 | 55 | 35 | 17 | | | on request | |
|
