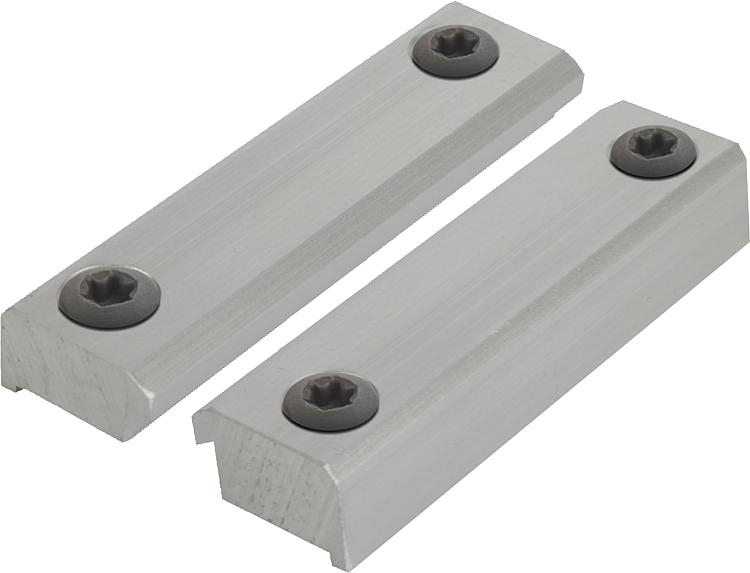

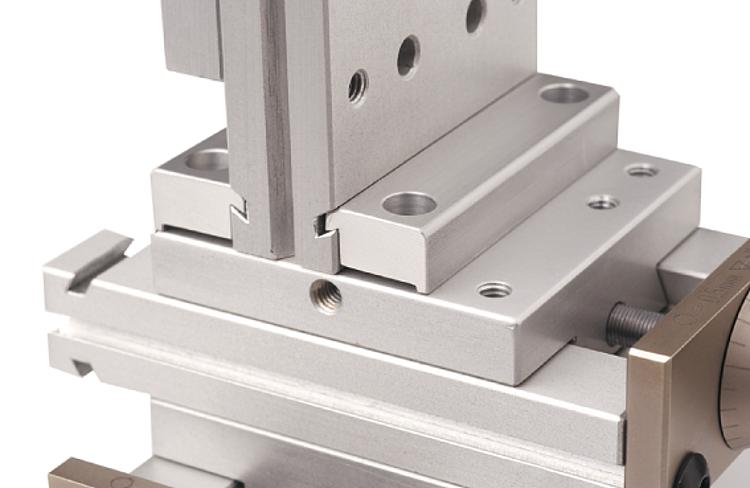

DescriptionMaterial:Aluminium EN AW-6063Note for ordering:21000-020 (1 strap with clamping screw)Note:The straps are used to clamp the dovetail slides in the X, Y and Z axes and to fix the slide unit in the machine.
End mounting will reduce the travel.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

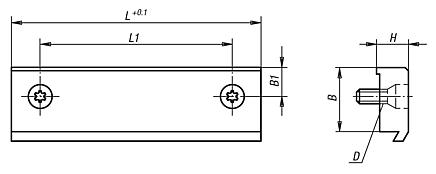

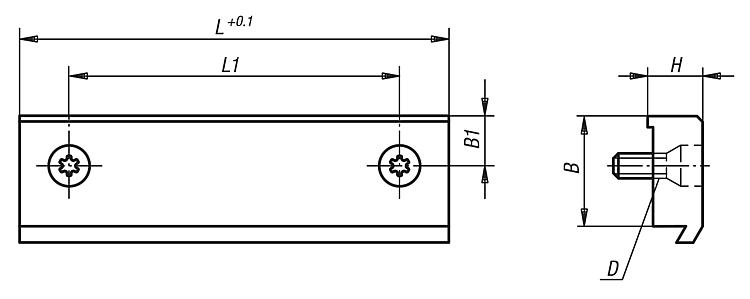

| Order No. | B
| B1 | D
for screw | H | L | L1 | travel
reduction | suitable
for slide
| CAD | Acc. | Price | Order |
|---|
| 21000-020 | 5,7 | 3,7 | M2 | 3,5 | 19,5 | 12 | 3,5 | 21000-020 ... |  | | on request | | | 21000-030 | 5,7 | 2,85 | M3 | 3,5 | 29,5 | 23 | 3,5 | 21000-030 ... | | | on request | | | 21000-050 | 11,5 | 5,25 | M4 | 8 | 49,3 | 38 | 8 | 21000-050 ... | | | on request | | | 21000-080 | 11,5 | 6 | M5 | 8 | 78,9 | 60 | 8 | 21000-080 ... | | | on request | | | 21000-120 | 15 | 10 | M5 | 11 | 118,4 | 90 | 10 | 21000-120 ... | | | on request | |
