Item description/product images |
|
|

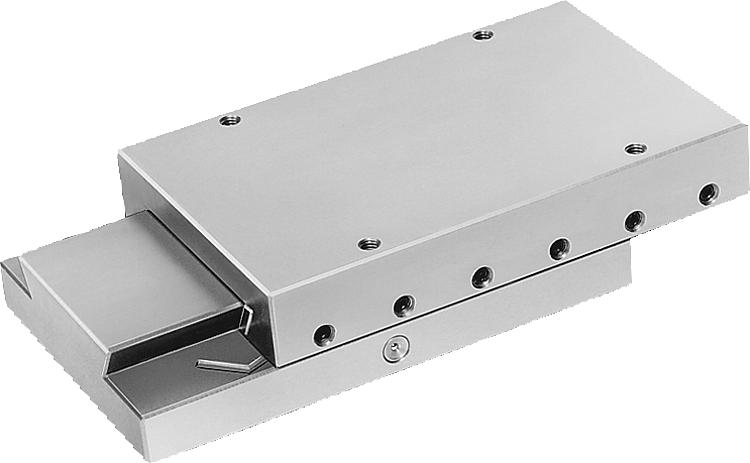

DescriptionMaterial:GJL 250Version:Bright, ground.Note:These precision dovetail slides find use in machine and fixture construction, metrology, optical instruments and fine mechanics. The middle set screw “N” can be replaced by clamping lever Art. No. 06460.
The stated permissible load ratings (F) are designed for dynamic loads with a lifespan of 1 million travel cycles.
For static loads 10 times the F value is permitted.
The torque values apply only for centred carriages.
TI = number of fastening holes E/M inside
TA = number of fastening holes E/M outsideSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | A | B | B1 | C | D
| E | Tl | TA | I | L | M | N | F
N | Mx
Nm | My
Nm | Mz
Nm | CAD | Acc. | Price | Order |
|---|
| 21030-050080 | 25 | 50 | 49,5 | 15 | 15 | 28 | 6 | 6 | 17,6 | 80 | M4 | M5 | 72 | 4 | 6 | 5 |  | | on request | | | 21030-050105 | 25 | 50 | 49,5 | 20 | 15 | 28 | 8 | 8 | 17,6 | 105 | M4 | M5 | 95 | 7 | 7 | 8 | | | on request | | | 21030-050130 | 25 | 50 | 49,5 | 25 | 15 | 28 | 10 | 10 | 17,6 | 130 | M4 | M5 | 117 | 10 | 9 | 12 | | | on request | | | 21030-075105 | 32 | 75 | 74,5 | 20 | 19,5 | 62 | 4 | 4 | 22,5 | 105 | M5 | M5 | 128 | 9 | 15 | 10 | | | on request | | | 21030-075130 | 32 | 75 | 74,5 | 25 | 19,5 | 62 | 4 | 4 | 22,5 | 130 | M5 | M5 | 159 | 14 | 18 | 15 | | | on request | | | 21030-100110 | 40 | 100 | 99,5 | 20 | 24 | 86 | 4 | 4 | 27,5 | 110 | M6 | M6 | 156 | 11 | 26 | 12 | | | on request | | | 21030-100135 | 40 | 100 | 99,5 | 25 | 24 | 86 | 4 | 4 | 27,5 | 135 | M6 | M6 | 192 | 17 | 32 | 19 | | | on request | | | 21030-100160 | 40 | 100 | 99,5 | 30 | 24 | 86 | 4 | 4 | 27,5 | 160 | M6 | M6 | 227 | 24 | 37 | 26 | | | on request | |
