        Bullseye level body

Item description/product images

DescriptionMaterial:Bullseye level body stainless steel up to Ø14 mm, then aluminium.
Sight window glass.Version:Aluminium black anodised.Note:Bubble levels are used as a type of zero indicator instrument for checking horizontal inclination in e.g. spirit levels, inclinometers, metrology instruments and machine constructions.
Excellent bubble contour, with internal bubble ring to eliminate planar parallaxes.
- Sensitivity in angular minutes for 2 mm bubble travel
- Clear fillingTemperature range:-35 °C up to +55 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21808 Bullseye level body

260 kB

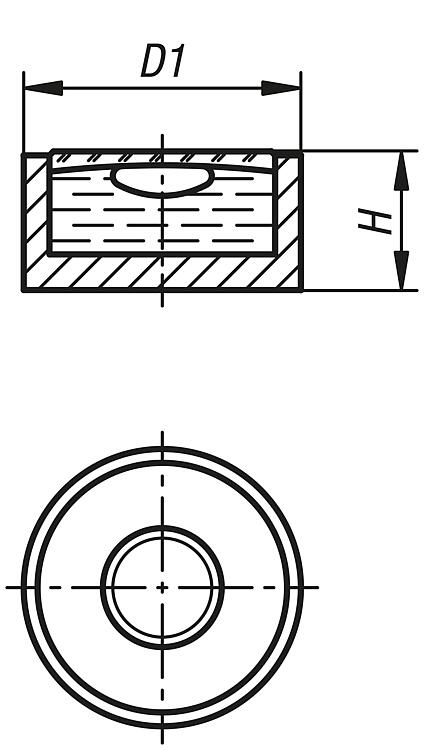

Drawings

Item selection/filter

Order No.	Main material	D1	H	Sensitivity	Price
21808-120710	stainless steel	12	6	10'	on request
21808-120725	stainless steel	12	6	25'	on request
21808-140710	aluminium	14	6,5	10'	on request
21808-140720	aluminium	14	6,5	20'	on request
21808-150710	aluminium	15	6,5	10'	on request
21808-150720	aluminium	15	6,8	20'	on request
21808-200810	aluminium	20	8,5	10'	on request
21808-200820	aluminium	20	8,5	20'	on request
21808-250910	aluminium	25	8,5	10'	on request
21808-250920	aluminium	25	8,5	20'	on request
