21812Tubular bubble levels with frame to screw on |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Frame brass.
Tubular bubble vial glass.Version:Nickel-plated and high-gloss polished. Form B: black anodised.Note:Bubble levels are used as a type of zero indicator instrument for checking horizontal inclination in e.g. spirit levels, inclinometers, metrology instruments and machine constructions.
The tubular levels can be fastened using the two holes.
- Form A: one sight window
- Form B: three sight windows
- Sensitivity in angular minutes for 2 mm bubble travel
- Green filling
Temperature range:-35 °C up to +55 °C.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

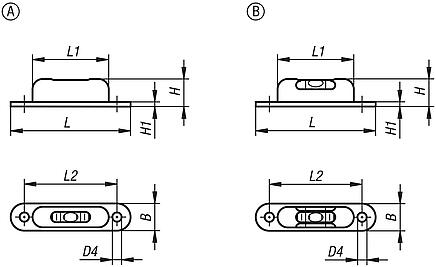

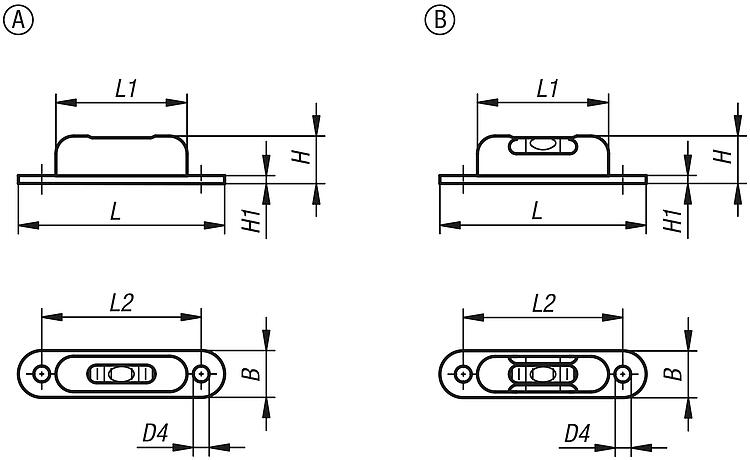

Drawings (total overview) |

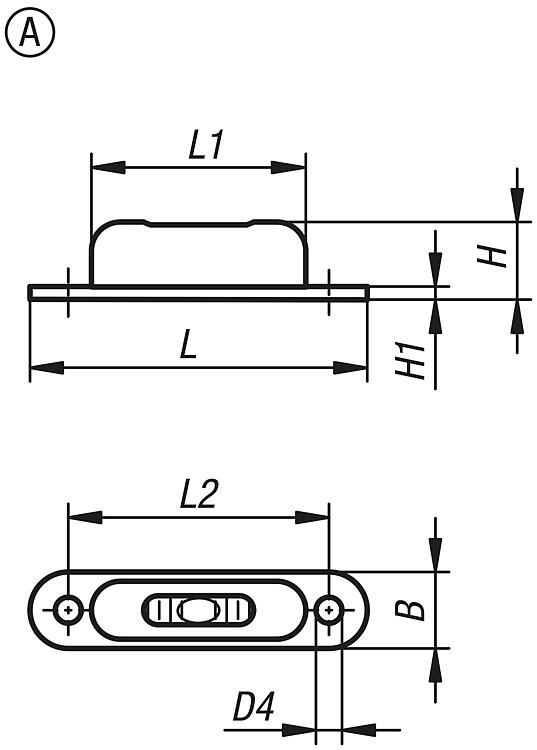

Tubular bubble levels with frame to screw on, Form A, one sight glass |
More information |
| Order No. | Form | B | D4 | H
| H1 | L | L1 | L2 | Sensitivity | CAD | Acc. | Price | Order |
|---|
| 21812-1571350 | A | 12,3 | 4,5 | 13 | 1 | 57 | 37 | 45 | 50' |  | | on request | |
|

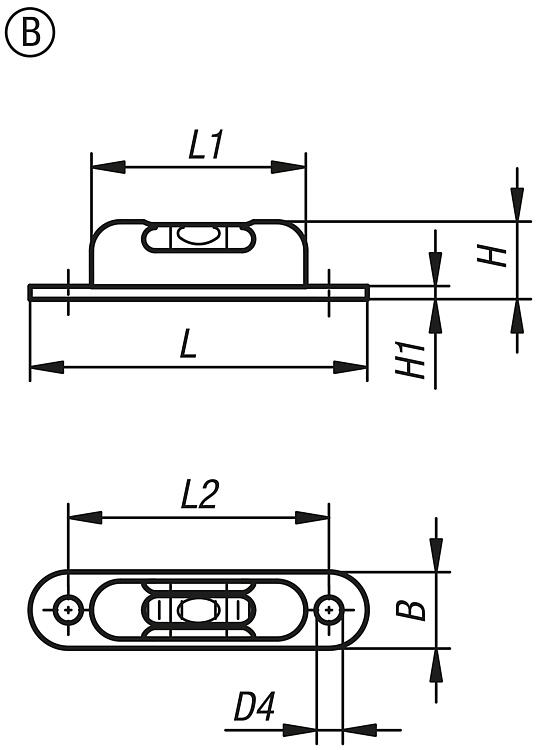

Tubular bubble levels with frame to screw on, Form B, three sight glasses |
More information |
| Order No. | Form | B | D4 | H
| H1 | L | L1 | L2 | Sensitivity | CAD | Acc. | Price | Order |
|---|
| 21812-2571305 | B | 12,3 | 4,5 | 13 | 1 | 57 | 37 | 45 | 5' | | | on request | |
|
