        Linear housing units with flange

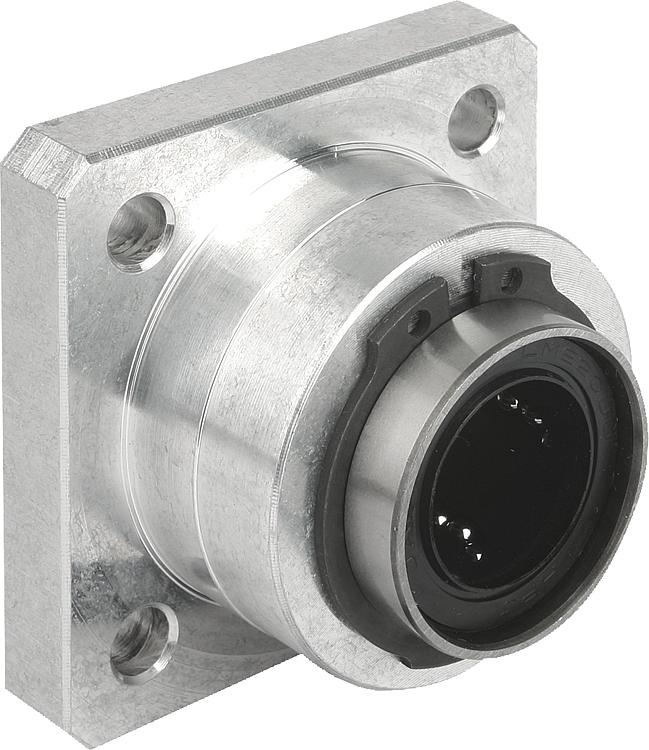

Item description/product images

DescriptionMaterial:Housing aluminium or grey cast iron.Version:Housing bright.Note:Ready to install linear housing units consisting of an extruded aluminium housing with a self-aligning linear ball bearing 21510 and seals both sides. The bearings are secured in the housing with DIN 472 circlips.

Recommended shaft tolerance: h6.

Load ratings according to the linear ball bearings specifications.On request:Linear housing units can be equipped with any of our linear ball bearings.Attention:Attention: The diameter D2 by article 21522-501002 is not machined, no g7 centring diameter.Accessory:Precision guide shafts 21595.
Fastening screws 07160 or 07161.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21522 Linear housing units with flange

237 kB

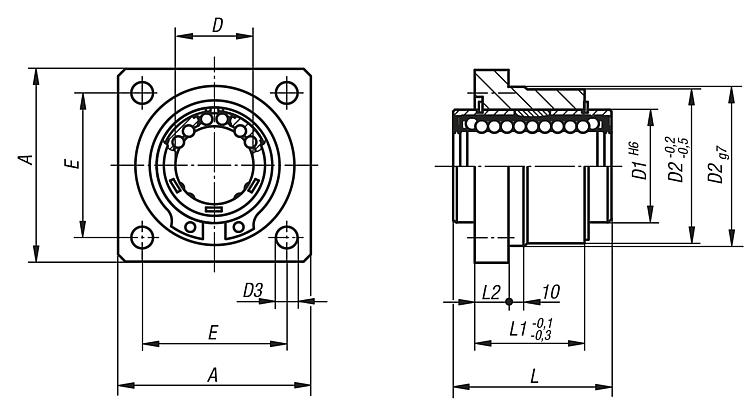

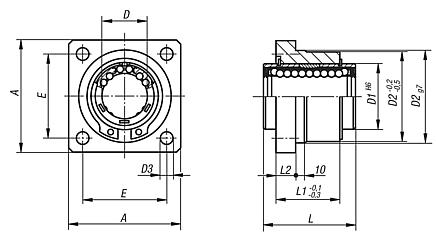

Drawings

Item selection/filter

Order No.	Main material	A	D	D1	D2	D3	E	L	L1	L2	Price
21522-121002	aluminium	40	12	22	32	5,5	30	32	22	6	on request
21522-161002	aluminium	50	16	26	38	5,5	35	36	24	8	on request
21522-201002	aluminium	60	20	32	46	6,6	42	45	30	10	on request
21522-251002	aluminium	70	25	40	58	6,6	54	58	42	12	on request
21522-301002	aluminium	80	30	47	66	9	60	68	50	14	on request
21522-401002	aluminium	100	40	62	90	11	78	80	59	16	on request
21522-501002	grey cast iron	130	50	75	100	11	98	100	75	18	on request
