DescriptionMaterial:Aluminium.Version:Bright.Note:Shaft supports are required to support shafts in conjunction with open linear ball bearings.
Shafts supported along the entire length result in particularly rigid assemblies, in many cases however, sectional supports suffice.
The standard length of our shaft supports is 600 mm. These can be shortened or set in series to produce longer supports.Accessory:Precision guide shafts with fastening holes 21590.
Fastening screws 07160.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

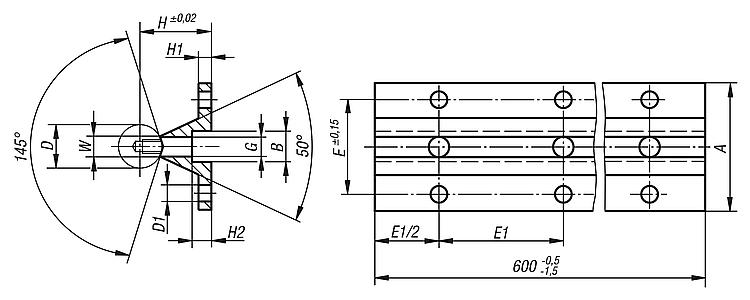

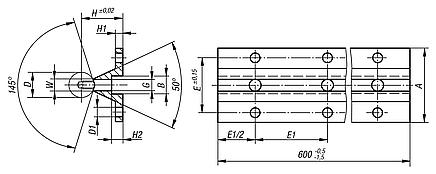

| Order No. | Size | A | B | D
| D1 | E | E1 | G
hole for
DIN 912 cap screw | H | H1 | H2 | W | CAD | Acc. | Price | Order |
|---|
| 21565-12375X0600 | 12 | 40 | 8 | 12 | 4,5 | 29 | 75 | M4x16 | 22 | 5 | 5 | 5,8 |  |  | on request | | | 21565-16500X0600 | 16 | 45 | 9,5 | 16 | 5,5 | 33 | 100 | M5x20 | 26 | 5 | 6 | 7 | | | on request | | | 21565-20500X0600 | 20 | 52 | 11 | 20 | 6,6 | 37 | 100 | M6x25 | 32 | 6 | 6,5 | 8,3 | | | on request | | | 21565-25600X0600 | 25 | 57 | 14 | 25 | 6,6 | 42 | 120 | M8x25 | 36 | 6 | 8,5 | 10,8 | | | on request | | | 21565-30750X0600 | 30 | 69 | 17 | 30 | 9 | 51 | 150 | M10x30 | 42 | 7 | 10,5 | 11 | | | on request | | | 21565-40100X0600 | 40 | 73 | 17 | 40 | 9 | 55 | 200 | M10x30 | 50 | 8 | 10,5 | 15 | | | on request | | | 21565-50100X0600 | 50 | 84 | 19 | 50 | 11 | 63 | 200 | M12x30 | 60 | 9 | 12,5 | 19 | | | on request | |
