        Precision guide shafts with fastening holes

Item description/product images

DescriptionMaterial:

Steel 1.1213.
Stainless steel 1.4034.
Stainless steel 1.4112.

Version:Steel, ground.
Steel, ground and hard-chromed, chrome coating 5 - 10 µm.
Stainless steel, ground.

The precision steel shafts are generally inductively surface hardened.Note:The surface value obtained during the inductive hardening process guarantees high surface wear resistance.

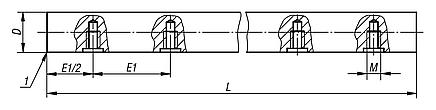

Suitable for shaft supports 21565.On request:Lengths up to a max. 4000 mm.Accessory:Shaft supports 21565.Drawing reference:

1) chamfered

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21590 Precision guide shafts with fastening holes

118 kB

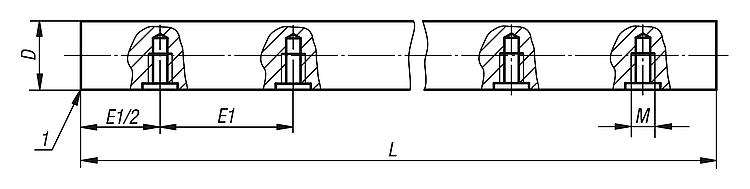

Drawings

Item selection/filter

Order No.	Material	Surface finish body	Steel code	D	E1	L	M	Hardening depth max.	Surface hardness HRC	Price
21590-012375X0600	steel	hardened and ground	1.1213	12h6	75	600	M4	1,3	62 ±2	on request
21590-016500X0600	steel	hardened and ground	1.1213	16h6	100	600	M5	1,6	62 ±2	on request
21590-020500X0600	steel	hardened and ground	1.1213	20h6	100	600	M6	1,6	62 ±2	on request
21590-025600X0600	steel	hardened and ground	1.1213	25h6	120	600	M8	1,8	62 ±2	on request
21590-030750X0600	steel	hardened and ground	1.1213	30h6	150	600	M10	2	62 ±2	on request
21590-040100X0600	steel	hardened and ground	1.1213	40h6	200	600	M10	2	62 ±2	on request
21590-050100X0600	steel	hardened and ground	1.1213	50h6	200	600	M12	2,6	62 ±2	on request
21590-112375X0600	steel	hardened, ground and hard chrome-plated	1.1213	12h7	75	600	M4	1,3	65 - 70	on request
21590-116500X0600	steel	hardened, ground and hard chrome-plated	1.1213	16h7	100	600	M5	1,6	65 - 70	on request
21590-120500X0600	steel	hardened, ground and hard chrome-plated	1.1213	20h7	100	600	M6	1,6	65 - 70	on request
21590-125600X0600	steel	hardened, ground and hard chrome-plated	1.1213	25h7	120	600	M8	1,8	65 - 70	on request
21590-130750X0600	steel	hardened, ground and hard chrome-plated	1.1213	30h7	150	600	M10	2	65 - 70	on request
21590-140100X0600	steel	hardened, ground and hard chrome-plated	1.1213	40h7	200	600	M10	2	65 - 70	on request
21590-150100X0600	steel	hardened, ground and hard chrome-plated	1.1213	50h7	200	600	M12	2,6	65 - 70	on request
21590-212375X0600	stainless steel	hardened and ground	1.4034	12h6	75	600	M4	1,3	51 - 55	on request
21590-216500X0600	stainless steel	hardened and ground	1.4034	16h6	100	600	M5	1,6	51 - 55	on request
21590-220500X0600	stainless steel	hardened and ground	1.4034	20h6	100	600	M6	1,8	51 - 55	on request
21590-225600X0600	stainless steel	hardened and ground	1.4034	25h6	120	600	M8	2	51 - 55	on request
21590-230750X0600	stainless steel	hardened and ground	1.4034	30h6	150	600	M10	2,4	51 - 55	on request
21590-240100X0600	stainless steel	hardened and ground	1.4034	40h6	200	600	M10	2	51 - 55	on request
21590-250100X0600	stainless steel	hardened and ground	1.4034	50h6	200	600	M12	2,6	51 - 55	on request
21590-312375X0600	stainless steel	hardened and ground	1.4112	12h6	75	600	M4	1	52-56	on request
21590-316500X0600	stainless steel	hardened and ground	1.4112	16h6	100	600	M5	1,5	52-56	on request
21590-320500X0600	stainless steel	hardened and ground	1.4112	20h6	100	600	M6	1,5	52-56	on request
21590-325600X0600	stainless steel	hardened and ground	1.4112	25h6	120	600	M8	1,7	52-56	on request
21590-330750X0600	stainless steel	hardened and ground	1.4112	30h6	150	600	M10	1,7	52-56	on request
21590-340100X0600	stainless steel	hardened and ground	1.4112	40h6	200	600	M10	2	52-56	on request
21590-350100X0600	stainless steel	hardened and ground	1.4112	50h6	200	600	M12	2,6	52-56	on request
