Precision guide shafts
 21595

Precision guide shafts

 go back

Item description/product images
DescriptionMaterial:

Steel 1.1213.
Stainless steel 1.4034.
Stainless steel 1.4112.

Version:Steel, ground.
Steel, ground and hard-chromed, chrome coating 5 - 10 µm.
Stainless steel, ground.

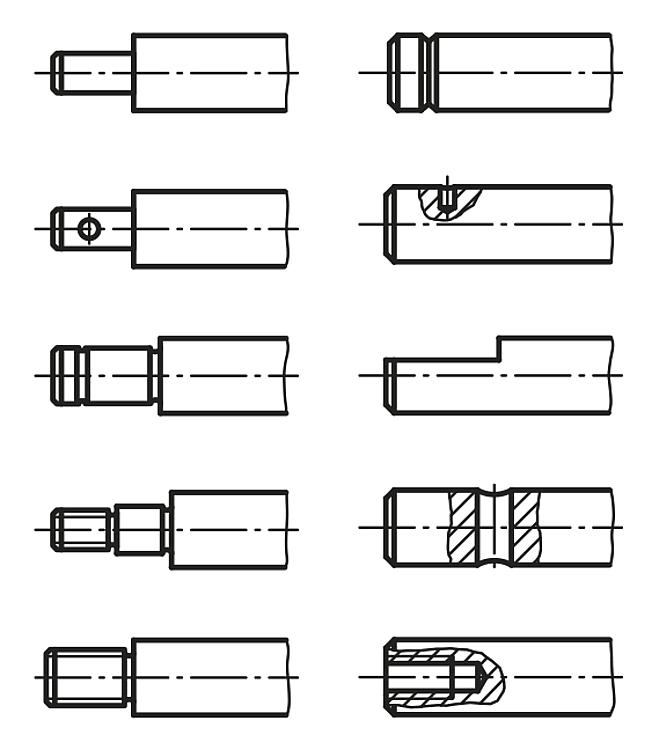

The precision steel shafts are generally inductively surface hardened.Note:The surface value obtained during the inductive hardening process guarantees high surface wear resistance.On request:Processing of the ends and cylindrical lateral areas according to customer design.
Lengths up to a max. 4000 mm.Drawing reference:
1) chamfered
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 21595 Precision guide shafts 136 kB
Precision guide shafts 21595 technical information 70,4 kB

Drawings

Precision guide shafts

Item selection/filter


  •
  • steel
  • stainless steel

  •
  • hardened and ground
  • hardened, ground and hard chrome-plated


  •
  • 3h6
  • 4h6
  • 5h6
  • 6h6
  • 8h6
  • 10h6
  • 12h6
  • 16h6
  • 20h6
  • 25h6
  • 30h6
  • 40h6
  • 50h6
  • 5h7
  • 6h7
  • 8h7
  • 10h7
  • 12h7
  • 16h7
  • 20h7
  • 25h7
  • 30h7
  • 40h7
  • 50h7

  •
  • 330
  • 1000
  • 300

  •
  • hardened
  • 0,8
  • 1
  • 1,3
  • 1,6
  • 1,8
  • 2
  • 2,6
  • 2,4
  • 1,5
  • 1,7

  •
  • 62 ±2
  • 65 - 70
  • 51 - 55
  • 52-56

Reset
Order No.Material

Surface finish
body		Steel
code		D

LHardening
depth
max.		Surface
hardness
HRC		CADAcc.PriceOrder
21595-003X0330steelhardened and ground1.12133h6330hardened62 ±2  on request
21595-004X1000steelhardened and ground1.12134h61000hardened62 ±2  on request
21595-005X1000steelhardened and ground1.12135h610000,862 ±2  on request
21595-006X1000steelhardened and ground1.12136h610000,862 ±2  on request
21595-008X1000steelhardened and ground1.12138h61000162 ±2  on request
21595-010X1000steelhardened and ground1.121310h61000162 ±2  on request
21595-012X1000steelhardened and ground1.121312h610001,362 ±2  on request
21595-016X1000steelhardened and ground1.121316h610001,662 ±2  on request
21595-020X1000steelhardened and ground1.121320h610001,662 ±2  on request
21595-025X1000steelhardened and ground1.121325h610001,862 ±2  on request
21595-030X1000steelhardened and ground1.121330h61000262 ±2  on request
21595-040X1000steelhardened and ground1.121340h61000262 ±2  on request
21595-050X1000steelhardened and ground1.121350h610002,662 ±2  on request
21595-105X1000steelhardened, ground and hard chrome-plated1.12135h710000,865 - 70  on request
21595-106X1000steelhardened, ground and hard chrome-plated1.12136h710000,865 - 70  on request
21595-108X1000steelhardened, ground and hard chrome-plated1.12138h71000165 - 70  on request
21595-110X1000steelhardened, ground and hard chrome-plated1.121310h71000165 - 70  on request
21595-112X1000steelhardened, ground and hard chrome-plated1.121312h710001,365 - 70  on request
21595-116X1000steelhardened, ground and hard chrome-plated1.121316h710001,665 - 70  on request
21595-120X1000steelhardened, ground and hard chrome-plated1.121320h710001,665 - 70  on request
21595-125X1000steelhardened, ground and hard chrome-plated1.121325h710001,865 - 70  on request
21595-130X1000steelhardened, ground and hard chrome-plated1.121330h71000265 - 70  on request
21595-140X1000steelhardened, ground and hard chrome-plated1.121340h71000265 - 70  on request
21595-150X1000steelhardened, ground and hard chrome-plated1.121350h710002,665 - 70  on request
21595-206X1000stainless steelhardened and ground1.40346h610000,851 - 55  on request
21595-208X1000stainless steelhardened and ground1.40348h61000151 - 55  on request
21595-210X1000stainless steelhardened and ground1.403410h61000151 - 55  on request
21595-212X1000stainless steelhardened and ground1.403412h610001,351 - 55  on request
21595-216X1000stainless steelhardened and ground1.403416h610001,651 - 55  on request
21595-220X1000stainless steelhardened and ground1.403420h610001,851 - 55  on request
21595-225X1000stainless steelhardened and ground1.403425h61000251 - 55  on request
21595-230X1000stainless steelhardened and ground1.403430h610002,451 - 55  on request
21595-240X1000stainless steelhardened and ground1.403440h61000251 - 55  on request
21595-250X1000stainless steelhardened and ground1.403450h610002,651 - 55  on request
21595-303X0300stainless steelhardened and ground1.41123h6300hardened52-56  on request
21595-304X1000stainless steelhardened and ground1.41124h61000hardened52-56  on request
21595-305X1000stainless steelhardened and ground1.41125h610000,852-56  on request
21595-306X1000stainless steelhardened and ground1.41126h610000,852-56  on request
21595-308X1000stainless steelhardened and ground1.41128h61000152-56  on request
21595-310X1000stainless steelhardened and ground1.411210h61000152-56  on request
21595-312X1000stainless steelhardened and ground1.411212h61000152-56  on request
21595-316X1000stainless steelhardened and ground1.411216h610001,552-56  on request
21595-320X1000stainless steelhardened and ground1.411220h610001,552-56  on request
21595-325X1000stainless steelhardened and ground1.411225h610001,752-56  on request
21595-330X1000stainless steelhardened and ground1.411230h610001,752-56  on request
21595-340X1000stainless steelhardened and ground1.411240h61000252-56  on request
21595-350X1000stainless steelhardened and ground1.411250h610002,652-56  on request
