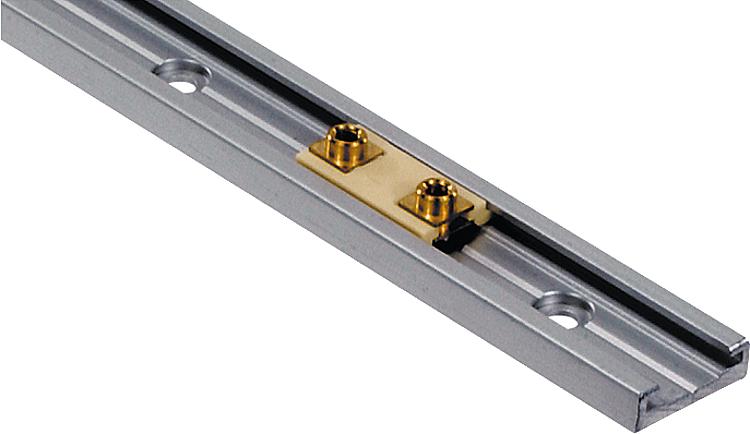

DescriptionMaterial:Bearing material maintenance-free iglidur® J.
Rails anodised aluminium.
Version:Guide rail natural colour anodised.
Carriage fastening thread brass.Note:Miniature slide guides are maintenance-free and corrosion resistant. Very high speeds and accelerations are possible due to the low weight. Applicable temperature max. 80 °C.
Miniature slide guides are insensitive to dust and ideally suited to dry running.

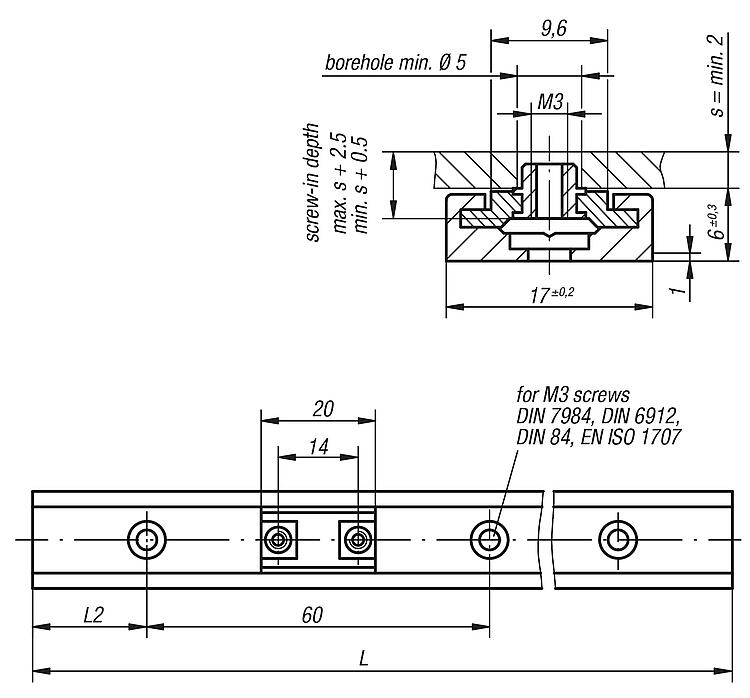

** lengths L2 = 20 mm
* and L = 500 mm included
L2 and L only available in full mm.Special features:
