        Vertical bracket short

Item description/product images

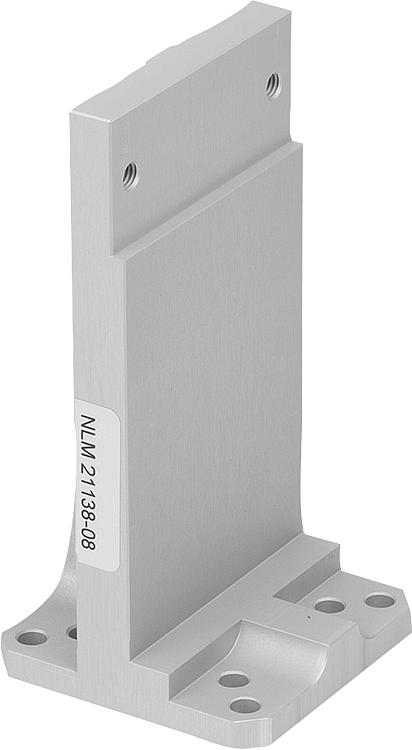

DescriptionMaterial:Aluminium alloy.Version:anodised.Note:The vertical bracket is mounted vertically to the mounting surface.

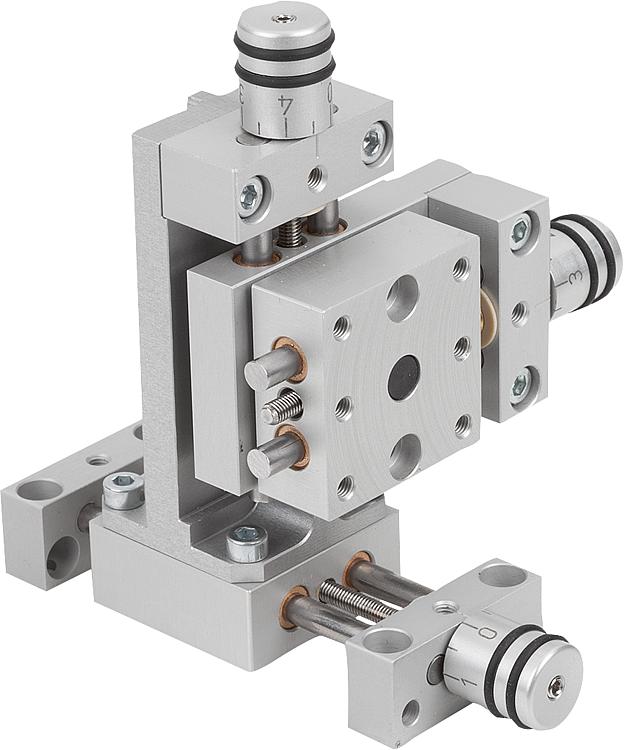

Can be combined with positioning stages, cross stages, vertical stages and all other components of the same size.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21138 Vertical bracket short

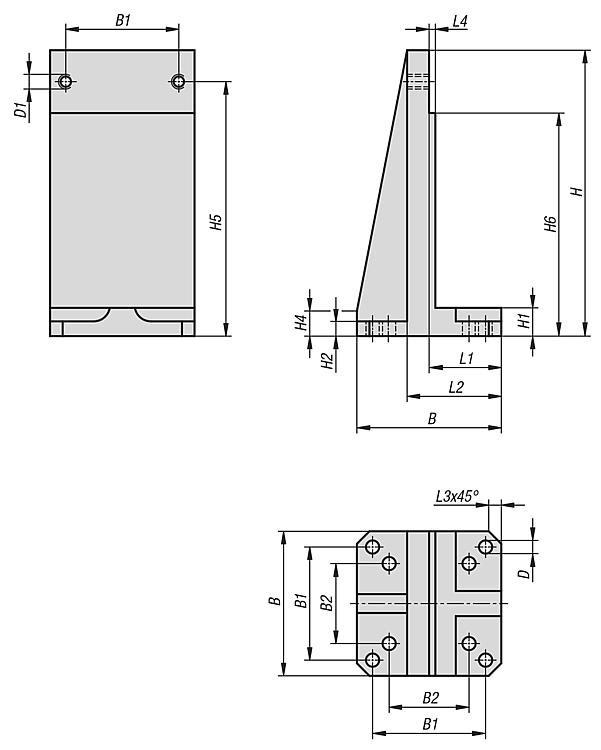

Drawings

Vertical bracket short

Item selection/filter

Order No.	Size	B	B1	B2	D	D1	H	H1	H2	H4	H5	H6	L1	L2	L3	L4	CAD	Acc.	Price	Order
21138-04	4	29	22	15,56	3,2	M3	58	6	2,8	6	53	48	13	18	3	1			on request
21138-08	8	46	36	25,46	4,2	M4	91	9	4,7	8	81	71	23	30	4	2			on request
21138-12	12	75	60	42,43	6,4	M6	146	12	5,7	8	131	116	27	36	7	2			on request
