DescriptionMaterial:Race body die-cast aluminium.
End pieces polyester.
Wipers modified polyamide.
longitudinal seals rubber.

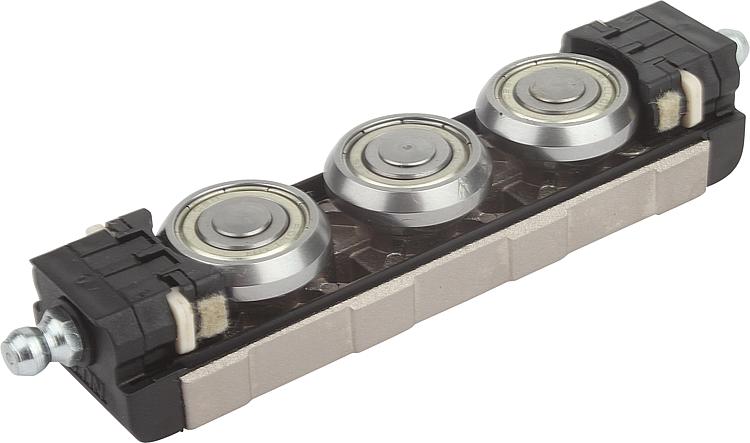

Rollers steel 1.3505.Version:Runner body nickel-plated.Note:Roller carriage with lifetime lubricated ball bearings and patented wiper technology which lubricates the system while in motion.
A simple adjustment of the middle roller makes the roller carriage play-free or sets the desired preload in the rail.
High traverse speeds of up to 7 m/s and extremely quiet (faster and quieter than systems with recycling ball bearings).
Application temperature -30 °C to +120 °C.On request:Roller carriages with 4 or 5 rollers.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Size | A1 | B | B1 | B2 | D
| E | H | H1 | L | L1 | C dynamic
N | C0Y
N | C0Z
N | Mx
Nm | My
Nm | Mz
Nm | CAD | Acc. | Price | Order |
|---|
