        Roller carriages steel

Item description/product images

Show/filter all items

DescriptionMaterial:Race body steel.
Wiper modified polyamide.
Rollers steel 1.3505.Version:Race body electro zinc-plated.Note:Roller carriages with lifetime lubricated ball bearings and polyamide wipers that protect the tracks from dirt.
A simple adjustment of the middle roller makes the roller carriage play-free or sets the desired preload in the rail.
High traverse speeds of up to 7 m/s and extremely quiet (faster and quieter than systems with recycling ball bearings).

Application temperature -30°C to +120°C.On request:Roller carriages with 4 or 5 rollers.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21322 Roller carriages steel

206 kB

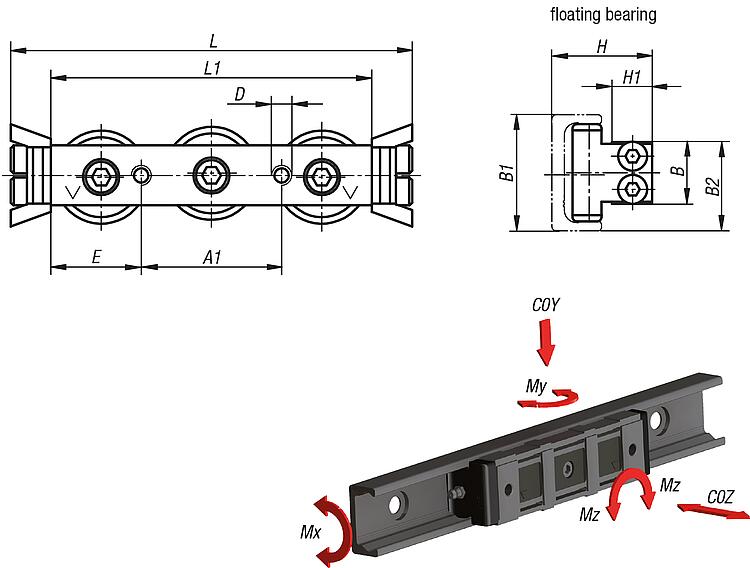

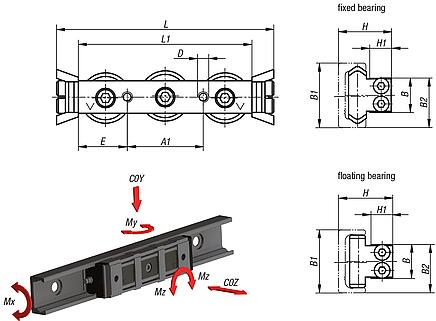

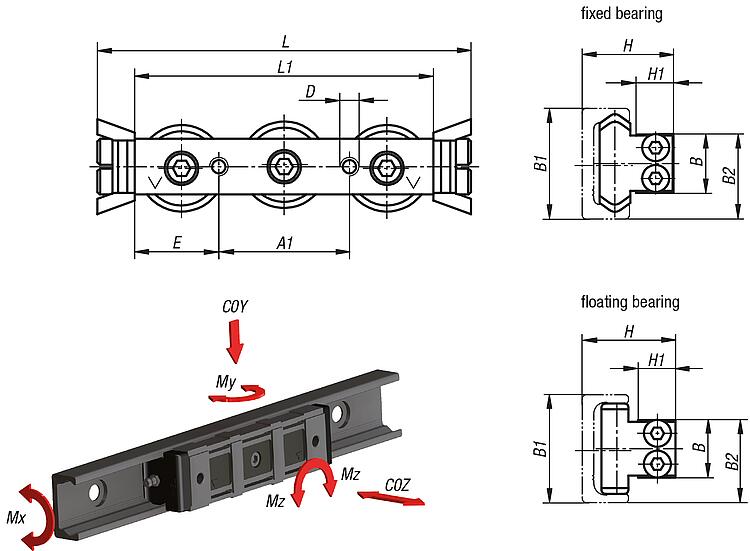

Drawings (total overview)

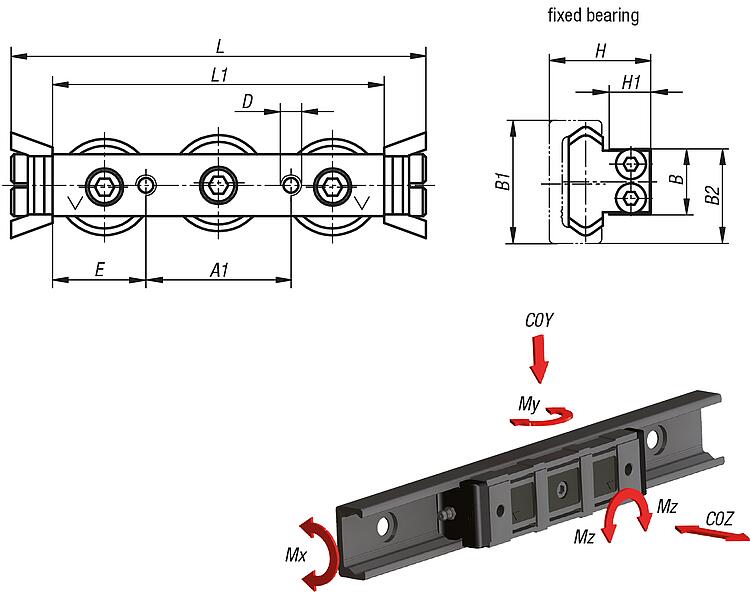

Fixed bearings

More information

Drawings

Item selection/filter

Order No.	Size	A1	B	B1	B2	D	E	H	H1	L	L1	C dynamic N	C0Y N	C0Z N	Mx Nm	My Nm	Mz Nm	Price
21322-1118060	18	20	9,5	18	14	M5	20	15	5,7	76	60	1530	820	260	1,5	4,7	8,2	on request
21322-1128080	28	35	14,9	28	21,7	M5	22,5	23,9	9,7	100	80	4260	2170	640	6,2	16	27,2	on request
21322-1135100	35	45	19,9	35	27,85	M6	27,5	30,2	11,9	120	100	8040	3510	1060	12,9	33,7	61,5	on request
21322-1143120	43	55	24,9	43	34,3	M8	32,5	37	14,5	140	120	12280	5500	1570	23,6	60	104,5	on request

Floating bearings

More information

Drawings

Item selection/filter

Order No.	Size	A1	B	B1	B2	D	E	H min.	H max.	H1	L	L1	C dynamic N	C0Y N	Mz Nm	Price
21322-1218060	18	20	9,5	18	14	M5	20	14,7	16,1	5,7	76	60	1530	820	8,2	on request
21322-1228080	28	35	14,9	28	21,7	M5	22,5	23,3	25,2	9,7	100	80	4260	2170	27,2	on request
21322-1235100	35	45	19,9	35	27,85	M6	27,5	28,9	32,9	11,9	120	100	8040	3510	61,5	on request
21322-1243120	43	55	24,9	43	34,3	M8	32,5	35,6	39,5	14,5	140	120	12280	5500	104,5	on request
