Ball seats for ball joints DIN 71805

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Clevis joints Rod ends Ball joints Axial joints Levelling sets Swivel feet Levelling feet Tube-end plugs Equipment feet Hinges
      - Angle joints
        Ball seats for ball joints DIN 71805

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Trivalent passivated.Note:The ball sockets are spare parts for DIN 71802 ball joints. See circlips for ball seats for suitable retaining rings for Form B.On request:Stainless steel ball seats.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27655 Ball seats for ball joints DIN 71805

151 kB

Drawings (total overview)

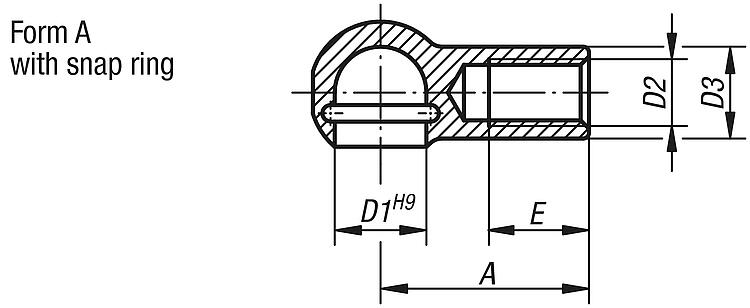

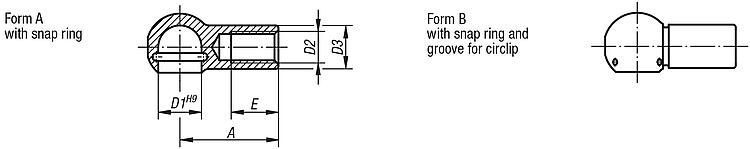

Ball seats for ball joints DIN 71805, Form A

More information

Drawings

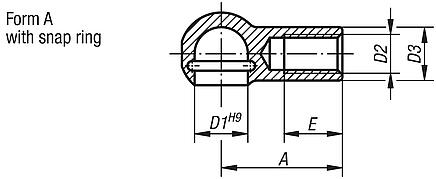

Ball seats for ball joints DIN 71805, Form A

Item selection/filter

Order No.	Form	D1	D2	D3	A	E	Price
27655-0805	A	8	M5	8	22	10,2	on request
27655-1006	A	10	M6	10	25	11,5	on request
27655-1308	A	13	M8	13	30	14	on request
27655-1610	A	16	M10	16	35	15,5	on request
27655-1612	A	16	M12	16	35	15,5	on request
27655-1914	A	19	M14x1,5	22	45	21,5	on request
27655-1916	A	19	M16	22	45	21,5	on request

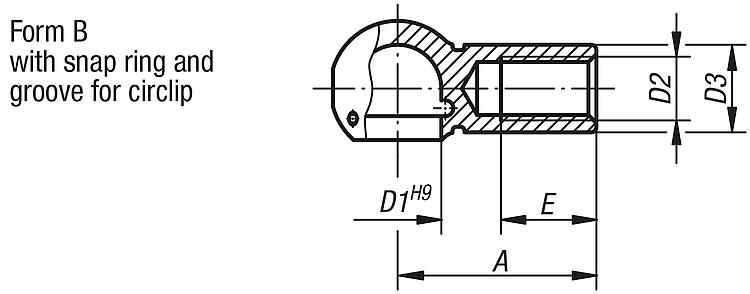

Ball seats for ball joints DIN 71805, Form B

More information

Drawings

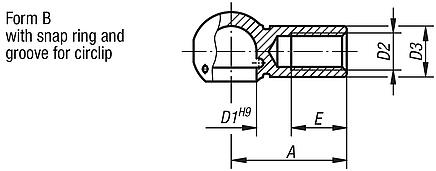

Ball seats for ball joints DIN 71805, Form B

Item selection/filter

Order No.	Form	D1	D2	D3	A	E	Price
27655-080351	B	8	M3,5	8	18	8	on request
27655-08051	B	8	M5	8	22	10,2	on request
27655-10061	B	10	M6	10	25	11,5	on request
27655-13081	B	13	M8	13	30	14	on request
27655-16101	B	16	M10	16	35	15,5	on request
27655-16121	B	16	M12	16	35	15,5	on request
27655-19141	B	19	M14x1,5	22	45	21,5	on request
27655-19161	B	19	M16	22	45	21,5	on request
