        Axial joints for tractive forces adjustable

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Ball thrust pins trivalent passivated.
Ball seat and nuts electro zinc-plated.Note:Axial joint suitable for taking up tractive forces. The ball's movement can be controlled or fully locked in position using the clamping nut.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27670 Axial joints for tractive forces adjustable

212 kB

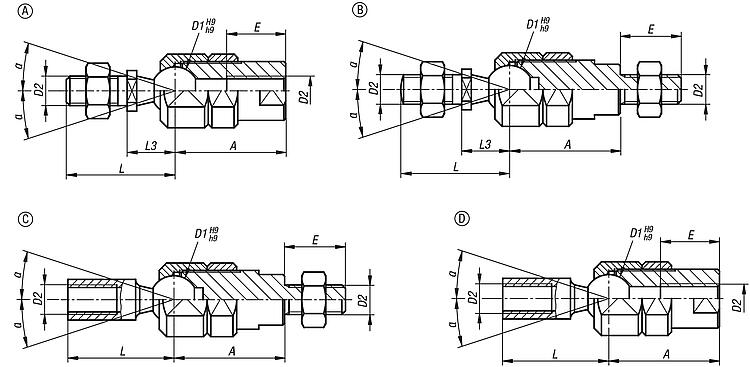

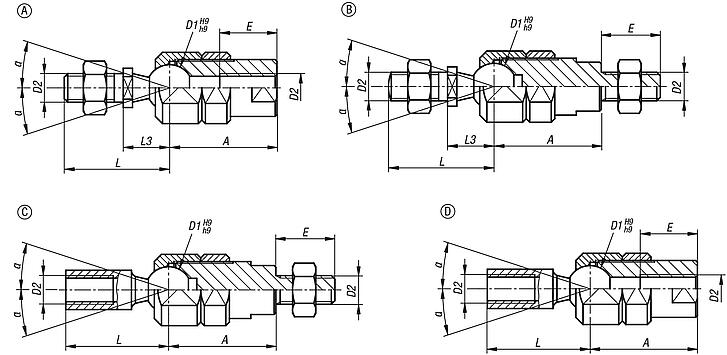

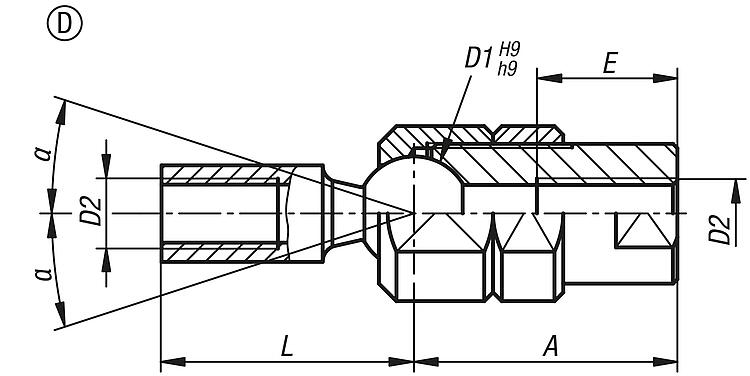

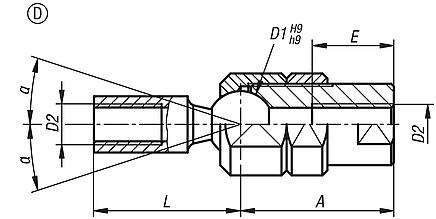

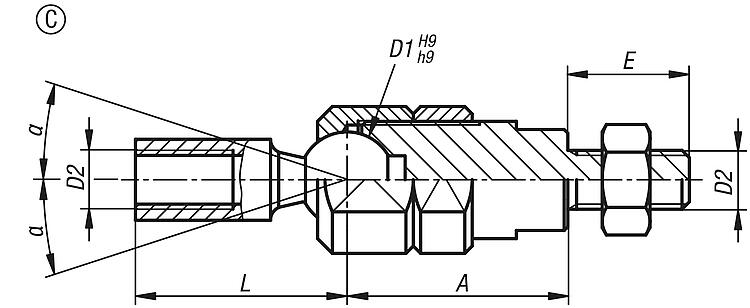

Drawings (total overview)

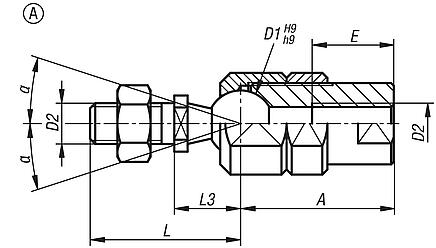

Axial joints for tractive forces adjustable, Form A

More information

Drawings

Axial joints for tractive forces adjustable, Form A

Item selection/filter

Order No.	Form	D1	D2	A	L	L3	E	α	F kN	M Nm	Tightening torque max. Nm	Price
27670-1006	A	10	M6	25	23,5	11	12	20°	2,5	5,2	12,4	on request
27670-1308	A	13	M8	30	29,5	13	16	24°	5	8,8	13,2	on request
27670-1610	A	16	M10	35	36	16	20	28°	7,5	14,5	16,4	on request
27670-1612	A	16	M12	35	36	16	24	28°	7,5	14,5	16,4	on request

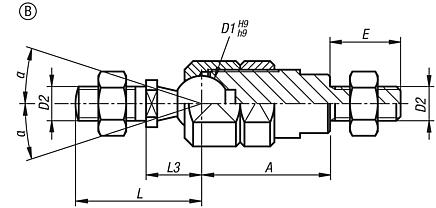

Axial joints for tractive forces adjustable, Form B

More information

Drawings

Axial joints for tractive forces adjustable, Form B

Item selection/filter

Order No.	Form	D1	D2	A	L	L3	E	α	F kN	M Nm	Tightening torque max. Nm	Price
27670-21006	B	10	M6	21	23,5	11	12	20°	2,5	5,2	12,4	on request
27670-21308	B	13	M8	26	29,5	13	14	24°	5	8,8	13,2	on request
27670-21610	B	16	M10	35	36	16	16	28°	7,5	14,5	16,4	on request
27670-21612	B	16	M12	35	36	16	16	28°	7,5	14,5	16,4	on request
