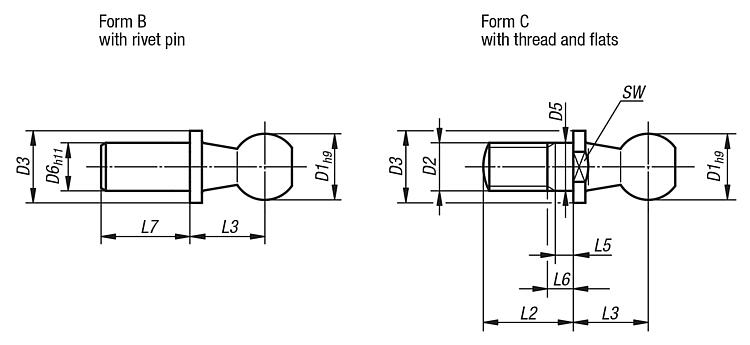

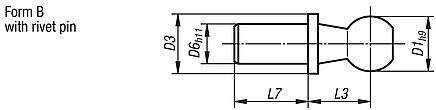

Ball studs DIN 71803 for DIN 71802 angle joints

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.Note:The ball studs are spare parts for DIN 71802 ball joints.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

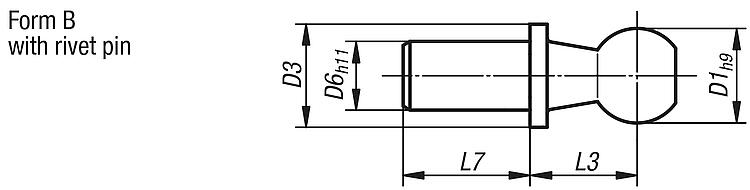

	B	with rivet stud	8 10 13 16 19	8 10 13 16 19	5 6 8 10 14	9 11 13 16 20	4 4,5 5 6 7,5 8 10 13 18				Reset
Order No.	Form	Version 2	D1	D3	D6	L3	L7	CAD	Acc.	Price	Order
27656-0840	B	with rivet stud	8	8	5	9	4			on request
27656-1045	B	with rivet stud	10	10	6	11	4,5			on request
27656-1305	B	with rivet stud	13	13	8	13	5			on request
27656-1606	B	with rivet stud	16	16	10	16	6			on request
27656-0875	B	with rivet stud	8	8	5	9	7,5			on request
27656-1080	B	with rivet stud	10	10	6	11	8			on request
27656-1310	B	with rivet stud	13	13	8	13	10			on request
27656-1613	B	with rivet stud	16	16	10	16	13			on request
27656-1918	B	with rivet stud	19	19	14	20	18			on request

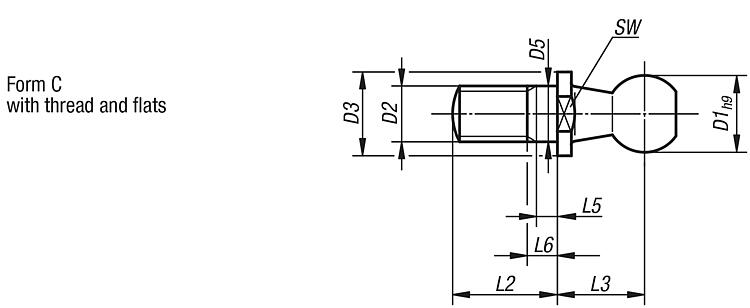

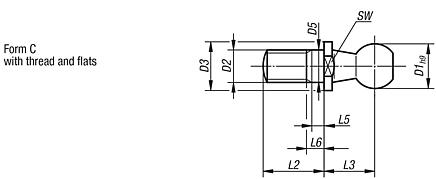

	C	8 10 13 16 19	M5 M6 M8 M10 M12 M14x1,5	8 10 13 16 19	5 6 8 10 12 14	10,2 12,5 16,5 20 28	9 11 13 16 20	1,2 1,5 2,5 5	4 5,3 7,3 10,8	7 8 11 13 16				Reset
Order No.	Form	D1	D2	D3	D5	L2	L3	L5 min.	L6 max.	SW	CAD	Acc.	Price	Order
27656-0805	C	8	M5	8	5	10,2	9	1,2	4	7			on request
27656-1006	C	10	M6	10	6	12,5	11	1,2	4	8			on request
27656-1308	C	13	M8	13	8	16,5	13	1,5	5,3	11			on request
27656-1610	C	16	M10	16	10	20	16	2,5	7,3	13			on request
27656-1612	C	16	M12	16	12	20	16	2,5	7,3	13			on request
27656-1914	C	19	M14x1,5	19	14	28	20	5	10,8	16			on request
