        Levelling sets high version

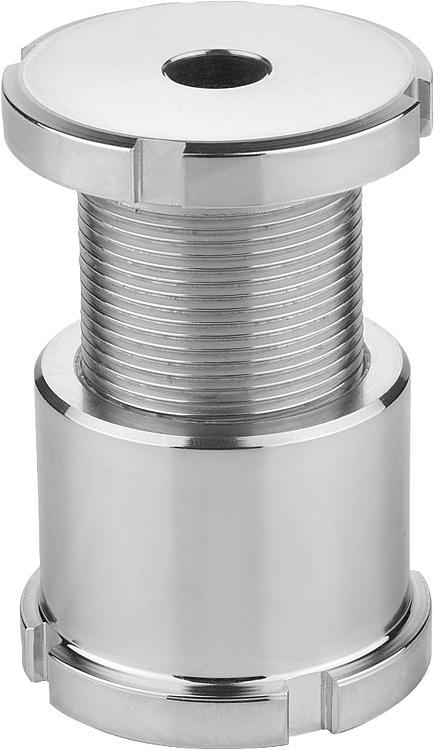

Item description/product images

DescriptionMaterial:

Steel 1.7225.
Stainless steel 1.4305.

Version:Seel version trivalent blue passivated.

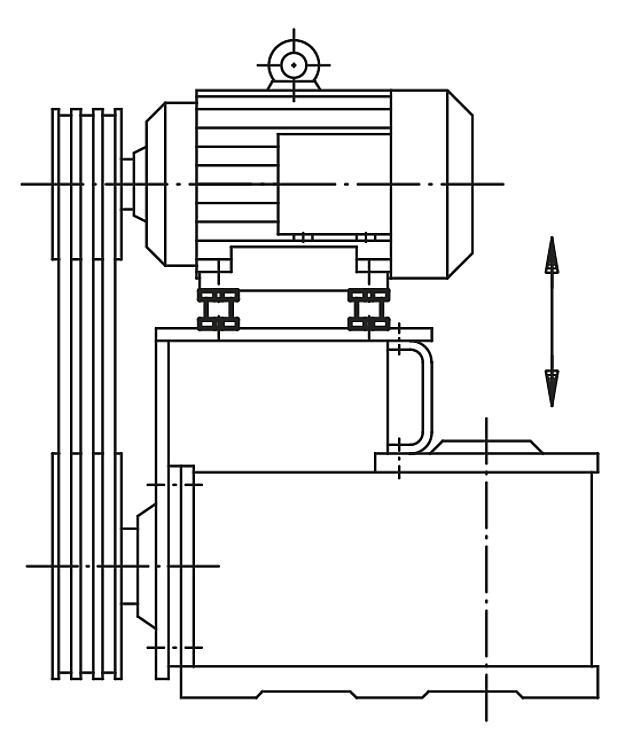

Stainless steel version bright.Note:Levelling sets are used for mounting, levelling and aligning motors, aggregates, drive units and assembly lines. They are characterised by their wide adjustment range from 15 mm to 40 mm. Other sizes available on request.
The static additional load F1 is effective after deducting the tensioning force (screw 8.8, µm = 0.125) from the total load F.
Accessory:96650 Hook wrench with lug, DIN 1810A enhanced.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27700 Levelling sets high version

209 kB

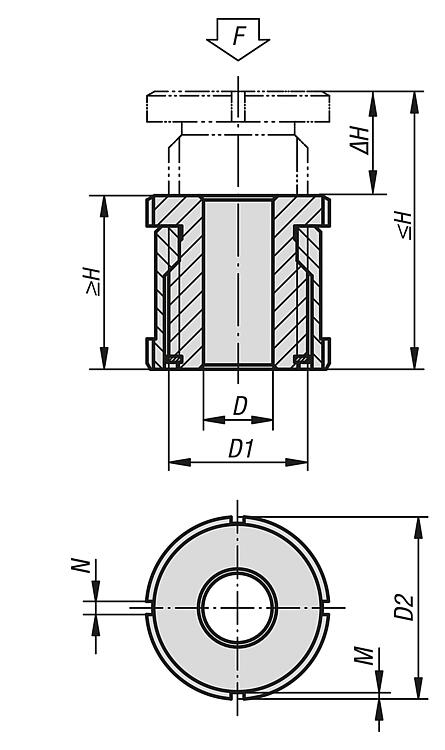

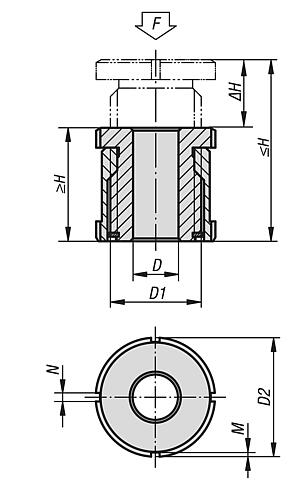

Drawings

Item selection/filter

Order No.	Main material	D	for screw	D1	D2	H min.	H max.	ΔH	N	M	F kN	F1 kN	Price
27700-01504	QT steel	4,5	M4	M15x1	25	28	43	15	4	2	40	36	on request
27700-01505	QT steel	5,5	M5	M15x1	25	28	43	15	4	2	40	33,4	on request
27700-01506	QT steel	6,6	M6	M15x1	25	28	43	15	4	2	40	30,7	on request
27700-02006	QT steel	6,6	M6	M20x1	32	35	55	20	4	2	65	55,7	on request
27700-02008	QT steel	9	M8	M20x1	32	35	55	20	4	2	65	48	on request
27700-02010	QT steel	11	M10	M20x1	32	35	55	20	4	2	65	37,9	on request
27700-02510	QT steel	11	M10	M30x1,5	45	42	67	25	5	2	120	92,9	on request
27700-02512	QT steel	13,5	M12	M30x1,5	45	42	67	25	5	2	120	80,4	on request
27700-02516	QT steel	17,5	M16	M30x1,5	45	42	67	25	5	2	120	45,5	on request
27700-03216	QT steel	17,5	M16	M40x1,5	58	54	86	32	6	2,5	210	136	on request
27700-03220	QT steel	22	M20	M40x1,5	58	54	86	32	6	2,5	210	90	on request
27700-03224	QT steel	26	M24	M40x1,5	58	54	86	32	6	2,5	210	37	on request
27700-04020	QT steel	22	M20	M50x1,5	70	66	106	40	6	2,5	330	210	on request
27700-04024	QT steel	26	M24	M50x1,5	70	66	106	40	6	2,5	330	157	on request
27700-04030	QT steel	33	M30	M50x1,5	70	66	106	40	6	2,5	330	53	on request
27700-015041	stainless steel	4,5	M4	M15x1	25	28	43	15	4	2	27,1	24,14	on request
27700-015051	stainless steel	5,5	M5	M15x1	25	28	43	15	4	2	27,1	22,24	on request
27700-015061	stainless steel	6,6	M6	M15x1	25	28	43	15	4	2	27,1	20,26	on request
27700-020061	stainless steel	6,6	M6	M20x1	32	35	55	20	4	2	43,4	36,56	on request
27700-020081	stainless steel	9	M8	M20x1	32	35	55	20	4	2	43,4	30,86	on request
27700-020101	stainless steel	11	M10	M20x1	32	35	55	20	4	2	43,4	23,41	on request
27700-025101	stainless steel	11	M10	M30x1,5	45	42	67	25	5	2	84	64,01	on request
27700-025121	stainless steel	13,5	M12	M30x1,5	45	42	67	25	5	2	84	54,82	on request
27700-025161	stainless steel	17,5	M16	M30x1,5	45	42	67	25	5	2	84	28,9	on request
27700-032161	stainless steel	17,5	M16	M40x1,5	58	54	86	32	6	2,5	148	92,9	on request
27700-032201	stainless steel	22	M20	M40x1,5	58	54	86	32	6	2,5	148	59,08	on request
27700-032241	stainless steel	26	M24	M40x1,5	58	54	86	32	6	2,5	148	20,3	on request
27700-040201	stainless steel	22	M20	M50x1,5	70	66	106	40	6	2,5	225	136,08	on request
27700-040241	stainless steel	26	M24	M50x1,5	70	66	106	40	6	2,5	225	97,3	on request
27700-040301	stainless steel	33	M30	M50x1,5	70	66	106	40	6	2,5	225	20,6	on request
