        Levelling sets spherical washer with locknut

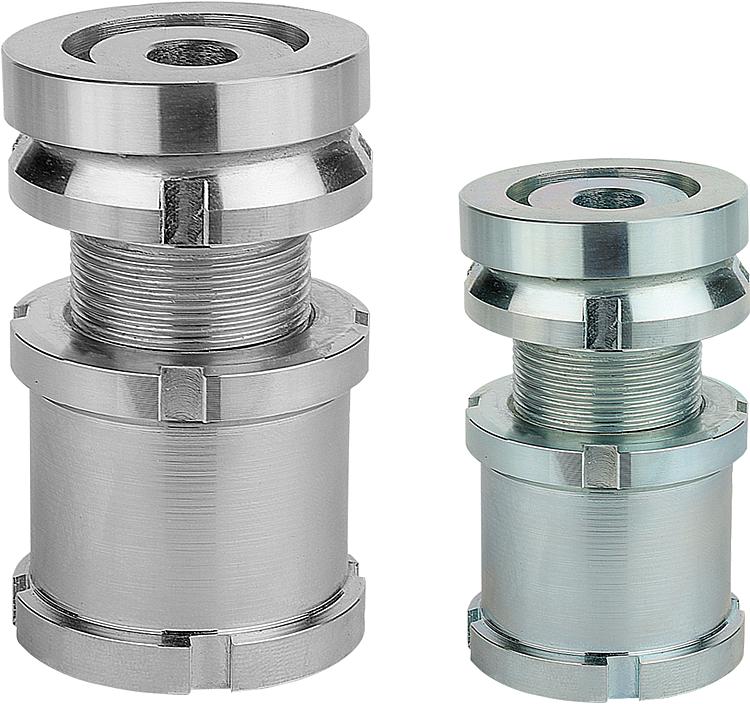

Item description/product images

DescriptionVersion:Seel version trivalent blue passivated.

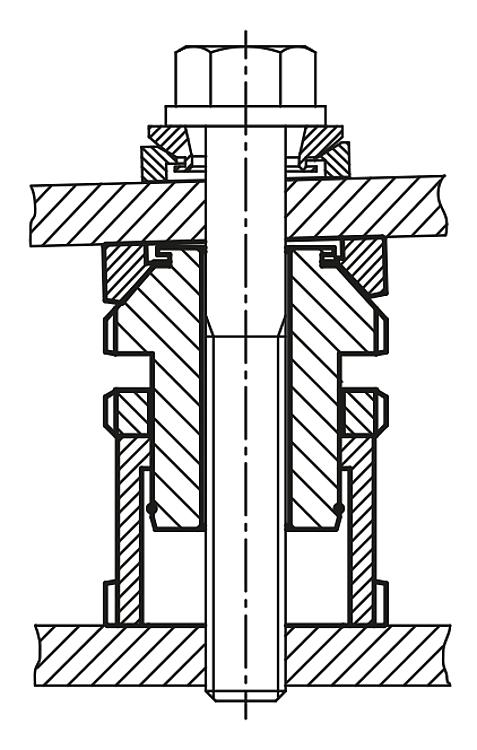

Stainless steel version bright.Note:The spherical washer levelling set with locknut is used to mount and align motors, aggregates, drive units and production lines. The spherical washer permits exact alignment when mounting on sloping surfaces of up to 4°. The locknut secures a prescribed setting.
The are characterised by their wide adjustment range of 10 mm to 39 mm.
The static additional load F1 is effective after deducting the tensioning force (screw 8.8, µm = 0.125) from the total load F.
Accessory:07460 Spherical levelling washers.
96650 Hook wrench with lug, DIN 1810A enhanced.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27708 Levelling sets spherical washer with locknut

363 kB

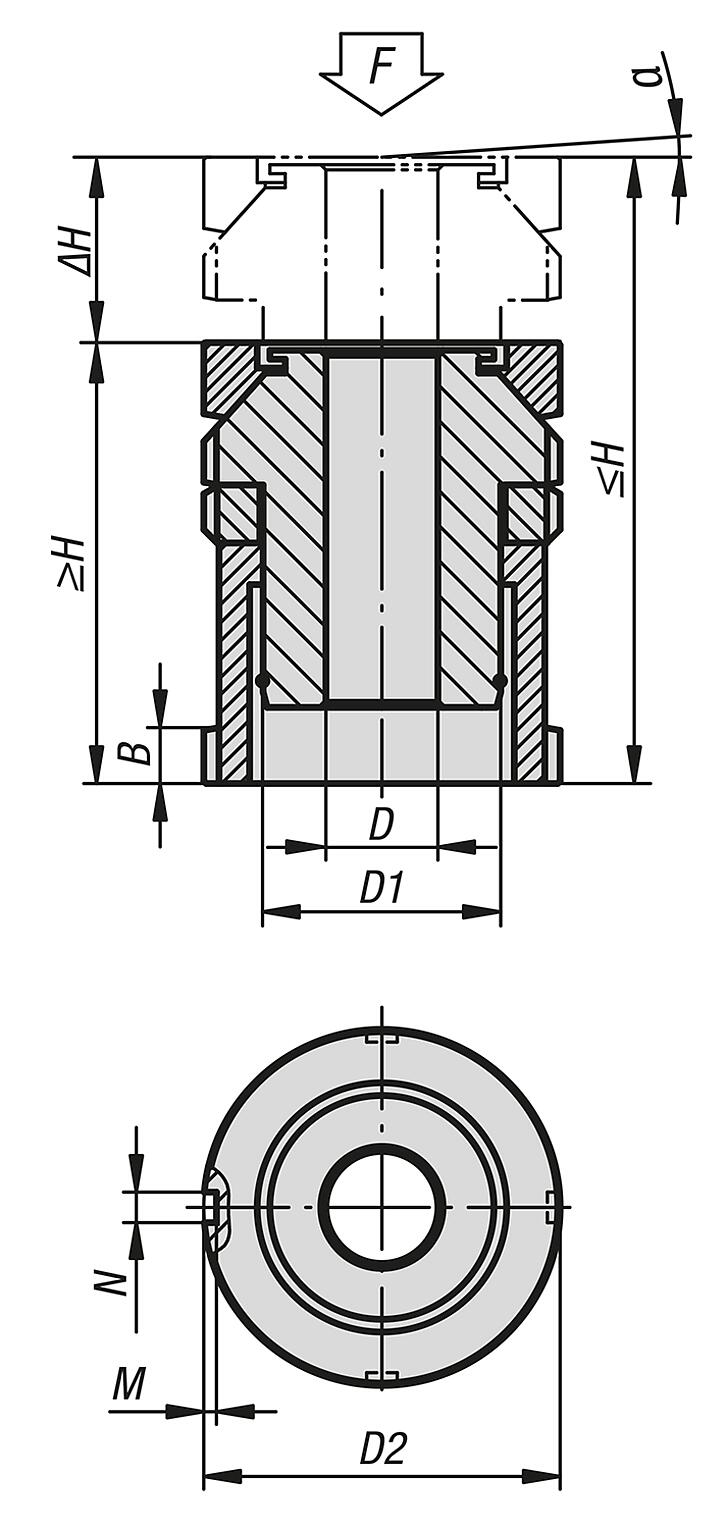

Drawings

Item selection/filter

Order No.	Main material	D	for screw	D1	D2	H min.	H max.	ΔH	N	M	α	F kN	F1 kN	Price
27708-1006	QT steel	6,6	M6	M15x1	25	40	50	10	4	2	4°	40	36	on request
27708-1406	QT steel	6,6	M6	M20x1	32	49	63	14	4	2	4°	65	55,7	on request
27708-1408	QT steel	9	M8	M20x1	32	49	63	14	4	2	4°	65	48	on request
27708-1410	QT steel	11	M10	M20x1	32	49	63	14	4	2	4°	65	37,9	on request
27708-1810	QT steel	11	M10	M30x1,5	45	61	79	18	5	2	4°	120	92,9	on request
27708-1812	QT steel	13,5	M12	M30x1,5	45	61	79	18	5	2	4°	120	80,4	on request
27708-1816	QT steel	17,5	M16	M30x1,5	45	61	79	18	5	2	4°	120	45,5	on request
27708-2316	QT steel	17,5	M16	M40x1,5	58	79	102	23	6	2,5	4°	210	136	on request
27708-2320	QT steel	22	M20	M40x1,5	58	79	102	23	6	2,5	4°	210	90	on request
27708-2324	QT steel	26	M24	M40x1,5	58	79	102	23	6	2,5	4°	210	37	on request
27708-2920	QT steel	22	M20	M50x1,5	70	94	123	29	6	2,5	4°	330	210	on request
27708-2924	QT steel	26	M24	M50x1,5	70	94	123	29	6	2,5	4°	330	157	on request
27708-2930	QT steel	33	M30	M50x1,5	70	94	123	29	6	2,5	4°	330	53	on request
27708-3924	QT steel	26	M24	M60x2	80	105	144	39	7	3	4°	495	322	on request
27708-3930	QT steel	33	M30	M60x2	80	105	144	39	7	3	4°	495	218	on request
27708-10061	stainless steel	6,6	M6	M15x1	25	40	50	10	4	2	4°	27,1	24,14	on request
27708-14061	stainless steel	6,6	M6	M20x1	32	49	63	14	4	2	4°	43,4	36,56	on request
27708-14081	stainless steel	9	M8	M20x1	32	49	63	14	4	2	4°	43,4	30,86	on request
27708-14101	stainless steel	11	M10	M20x1	32	49	63	14	4	2	4°	43,4	23,41	on request
27708-18101	stainless steel	11	M10	M30x1,5	45	61	79	18	5	2	4°	84	64,01	on request
27708-18121	stainless steel	13,5	M12	M30x1,5	45	61	79	18	5	2	4°	84	54,82	on request
27708-18161	stainless steel	17,5	M16	M30x1,5	45	61	79	18	5	2	4°	84	28,9	on request
27708-23161	stainless steel	17,5	M16	M40x1,5	58	79	102	23	6	2,5	4°	148	92,9	on request
27708-23201	stainless steel	22	M20	M40x1,5	58	79	102	23	6	2,5	4°	148	59,08	on request
27708-23241	stainless steel	26	M24	M40x1,5	58	79	102	23	6	2,5	4°	148	20,3	on request
27708-29201	stainless steel	22	M20	M50x1,5	70	94	123	29	6	2,5	4°	225	136,08	on request
27708-29241	stainless steel	26	M24	M50x1,5	70	94	123	29	6	2,5	4°	225	97,3	on request
27708-29301	stainless steel	33	M30	M50x1,5	70	94	123	29	6	2,5	4°	225	20,6	on request
27708-39241	stainless steel	26	M24	M60x2	80	105	144	39	7	3	4°	323	195,3	on request
27708-39301	stainless steel	33	M30	M60x2	80	105	144	39	7	3	4°	323	118,6	on request
