        Levelling sets spherical washer

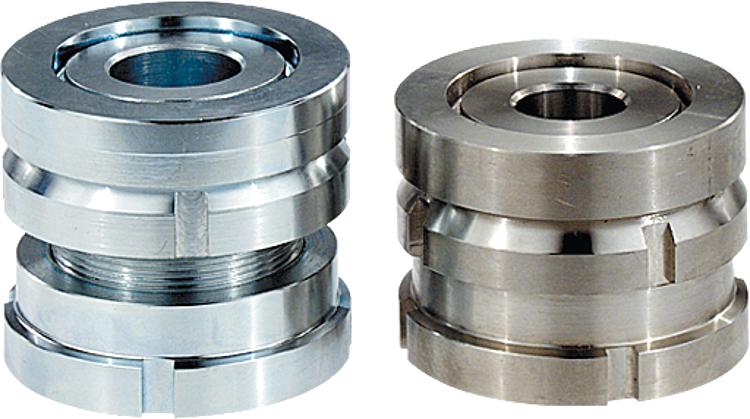

Item description/product images

DescriptionMaterial:

Steel 1.7225.
Stainless steel 1.4305.

Version:Seel version trivalent blue passivated.
Stainless steel version bright.Note:Levelling sets with spherical washers are used for mounting, levelling and aligning motors, aggregates, drive units and assembly lines. The spherical washer permits exact alignment when mounting sloping on surfaces of up to 4°.
The static additional load F1 is effective after deducting the tensioning force (screw 8.8, µm = 0.125) from the total load F.
Accessory:07460 Spherical levelling washers.
96650 Hook wrench with lug, DIN 1810A enhanced.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27705 Levelling sets spherical washer

194 kB

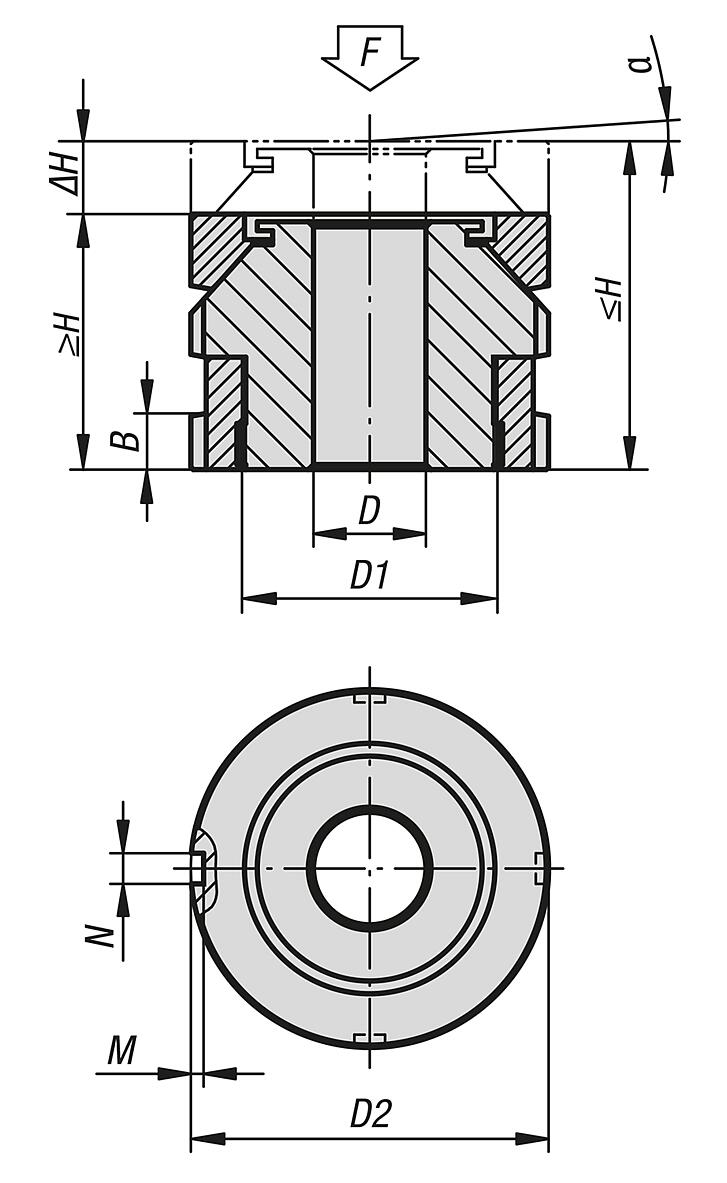

Drawings

Item selection/filter

Order No.	Main material	D	for screw	D1	D2	H min.	H max.	ΔH	N	M	α	F kN	F1 kN	Price
27705-0406	QT steel	6,6	M6	M15x1	25	22	26	4	4	2	4°	40	36	on request
27705-0506	QT steel	6,6	M6	M20x1	32	26	31	5	4	2	4°	65	55,7	on request
27705-0508	QT steel	9	M8	M20x1	32	26	31	5	4	2	4°	65	48	on request
27705-0510	QT steel	11	M10	M20x1	32	26	31	5	4	2	4°	65	37,9	on request
27705-0710	QT steel	11	M10	M30x1,5	45	34	41	7	5	2	4°	120	92,9	on request
27705-0712	QT steel	13,5	M12	M30x1,5	45	34	41	7	5	2	4°	120	80,4	on request
27705-0716	QT steel	17,5	M16	M30x1,5	45	34	41	7	5	2	4°	120	45,5	on request
27705-0916	QT steel	17,5	M16	M40x1,5	58	44	53	9	6	2,5	4°	210	136	on request
27705-0920	QT steel	22	M20	M40x1,5	58	44	53	9	6	2,5	4°	210	90	on request
27705-0924	QT steel	26	M24	M40x1,5	58	44	53	9	6	2,5	4°	210	37	on request
27705-1020	QT steel	22	M20	M50x1,5	70	50	60	10	6	2,5	4°	330	210	on request
27705-1024	QT steel	26	M24	M50x1,5	70	50	60	10	6	2,5	4°	330	157	on request
27705-1030	QT steel	33	M30	M50x1,5	70	50	60	10	6	2,5	4°	330	53	on request
27705-1224	QT steel	26	M24	M60x2	80	56	68	12	7	3	4°	495	322	on request
27705-1230	QT steel	33	M30	M60x2	80	56	68	12	7	3	4°	495	218	on request
27705-04061	stainless steel	6,6	M6	M15x1	25	22	26	4	4	2	4°	27,1	24,14	on request
27705-05061	stainless steel	6,6	M6	M20x1	32	26	31	5	4	2	4°	43,4	36,56	on request
27705-05081	stainless steel	9	M8	M20x1	32	26	31	5	4	2	4°	43,4	30,86	on request
27705-05101	stainless steel	11	M10	M20x1	32	26	31	5	4	2	4°	43,4	23,41	on request
27705-07101	stainless steel	11	M10	M30x1,5	45	34	41	7	5	2	4°	84	64,01	on request
27705-07121	stainless steel	13,5	M12	M30x1,5	45	34	41	7	5	2	4°	84	54,82	on request
27705-07161	stainless steel	17,5	M16	M30x1,5	45	34	41	7	5	2	4°	84	28,9	on request
27705-09161	stainless steel	17,5	M16	M40x1,5	58	44	53	9	6	2,5	4°	148	92,9	on request
27705-09201	stainless steel	22	M20	M40x1,5	58	44	53	9	6	2,5	4°	148	59,08	on request
27705-09241	stainless steel	26	M24	M40x1,5	58	44	53	9	6	2,5	4°	148	20,3	on request
27705-10201	stainless steel	22	M20	M50x1,5	70	50	60	10	6	2,5	4°	225	136,08	on request
27705-10241	stainless steel	26	M24	M50x1,5	70	50	60	10	6	2,5	4°	225	97,3	on request
27705-10301	stainless steel	33	M30	M50x1,5	70	50	60	10	6	2,5	4°	225	20,6	on request
27705-12241	stainless steel	26	M24	M60x2	80	56	68	12	7	3	4°	323	195,3	on request
27705-12301	stainless steel	33	M30	M60x2	80	56	68	12	7	3	4°	323	118,6	on request
