Hinges, stainless steel with fastening screws

27876-11

Hinges, stainless steel with fastening screws

Products
- Product overview
  - Systems and components for machine and plant construction
    - Clevis joints Rod ends Ball joints Axial joints Levelling sets Swivel feet Levelling feet Tube-end plugs Equipment feet Hinges
      - Hinges
        Hinges, stainless steel with fastening screws

Item description/product images

DescriptionMaterial:

Stainless steel 1.4301.

Version:Polished or blasted.Note:The high quality stainless steel hinges with fastening screws have an opening angle of 95°. The hinges can be used in the foodstuff, packaging, chemical and pharmaceutical industries.

The hinges are available in polished or abrasive blasted versions.Special features:

Stainless steel

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27876-11 Hinges, stainless steel with fastening screws

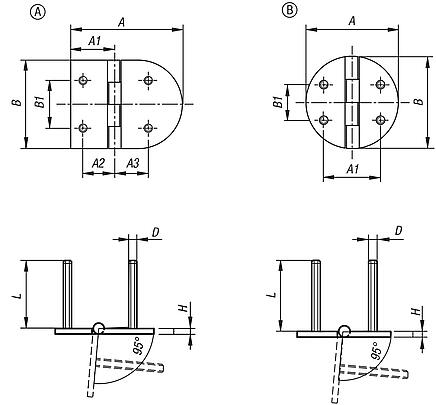

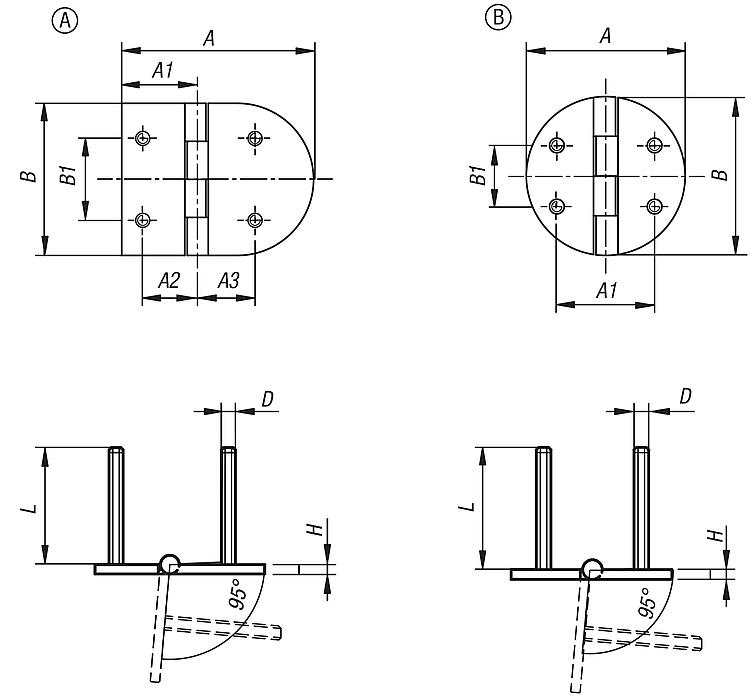

Drawings (total overview)

Hinges, stainless steel with fastening screws

Stainless steel hinges

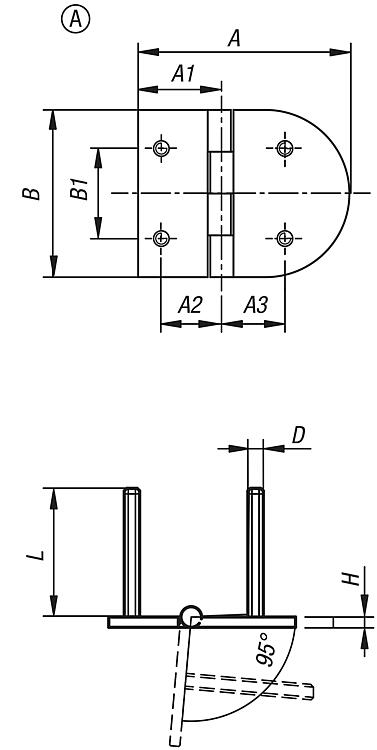

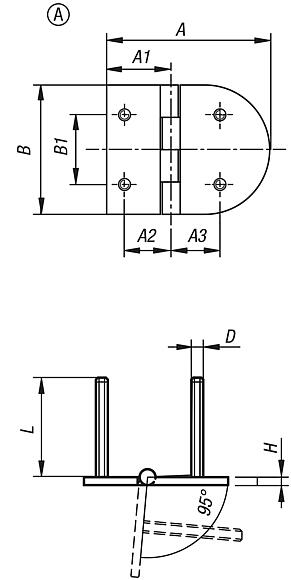

with fastening screws, Form A

More information

Drawings

Stainless steel hinges
with fastening screws, Form A

Item selection/filter

Order No.	Form	Form definition	Surface finish body	A	A1	A2	A3	B	B1	H	D	L	CAD	Acc.	Price	Order
27876-11-82650	A	oval	polished	82	32	23	25	65	32	4	M6	50			on request
27876-11-82651	A	oval	blasted	82	32	23	25	65	32	4	M6	50			on request

Stainless steel hinges

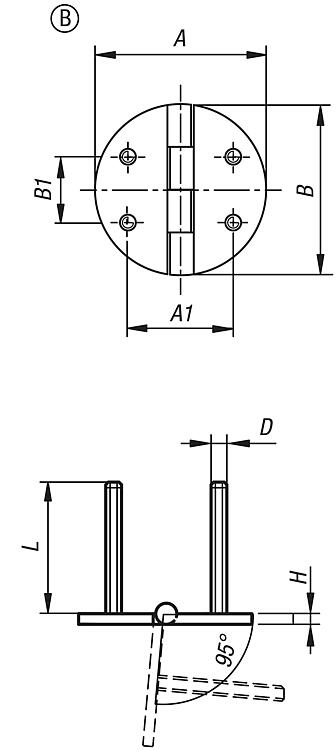

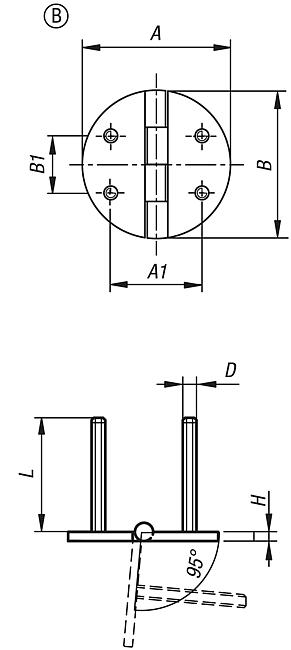

with fastening screws, Form B

More information

Drawings

Stainless steel hinges
with fastening screws, Form B

Item selection/filter

Order No.	Form	Form definition	Surface finish body	A	A1	A2	A3	B	B1	H	D	L	CAD	Acc.	Price	Order
27876-11-65650	B	round	polished	65	40	-	-	65	25	4	M6	50			on request
27876-11-65651	B	round	blasted	65	40	-	-	65	25	4	M6	50			on request
