Oil level gauges long version

28001

Oil level gauges long version

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Oil level gauges long version

Item description/product images

DescriptionMaterial:Housing aluminium.
Tube polycarbonate.
Caps polyamide.
O-ring and flat seal NBR, Shore 70.
Screw and hex. nut steel.
Version:Viewing glass transparent.
Screws and nuts electro zinc-plated.

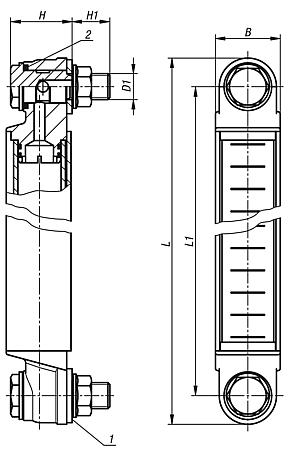

Note:The oil level gauges can either be fastened as shown in the illustration or directly in the tapped hole. Centre distance for the fastening holes = L1±0.3. The maximum operating temperature is 90 °C. The maximum pressure is 1 bar. The maximum tightening torque of the fastening screws is 5 Nm.Drawing reference:

1) flat seal
2) O-ring

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28001 Oil level gauges long version

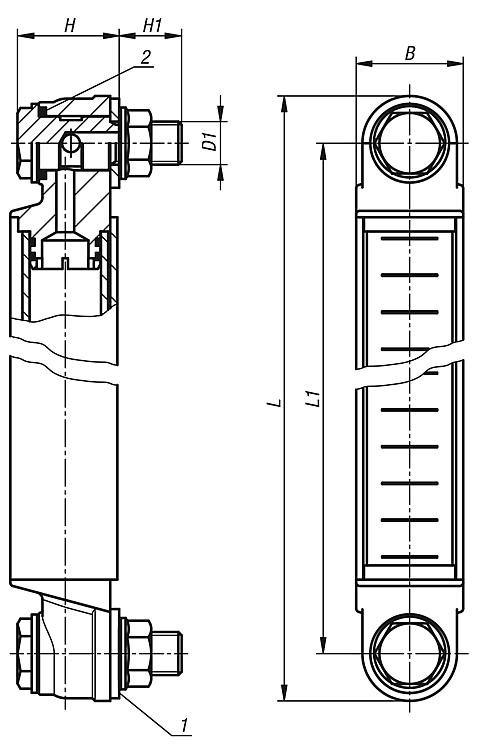

Drawings

Oil level gauges long version

Item selection/filter

Order No.	B	D1	H	H1	L	L1	CAD	Acc.	Price	Order
28001-1300	30	M12	30	16,5	325	300			on request
28001-1400	30	M12	30	16,5	425	400			on request
28001-1500	30	M12	30	16,5	525	500			on request
