Oil level gauges

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Oil level gauges

Item description/product images

Show/filter all items

DescriptionMaterial:Housing steel.
Viewing glass thermoplastic polyamide.
O-ring and flat seal rubber (NBR).
Reflector aluminium.
Screw and hex nut steel.Version:Housing painted black.
Transparent viewing glass, high mechanical stability, non-ageing, temperature resistant with oil up to 100 °C, with water up to 70 °C.
Reflector painted white, markings and scale black.
Screw and hexagon nut, electro zinc-plated.Note:The oil level gauges can either be fastened as shown in the illustration or directly in the threaded hole.
Centre distance for the fastening holes = L1 ±0.5.
The oil level gauges are suitable for tanks operating without pressure.
Maximum operating temperature: 100 °C.Drawing reference:

Form A: without thermometer
Form B: with thermometer

1) flat seal
2) O-ring

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28000 Oil level gauges

185 kB

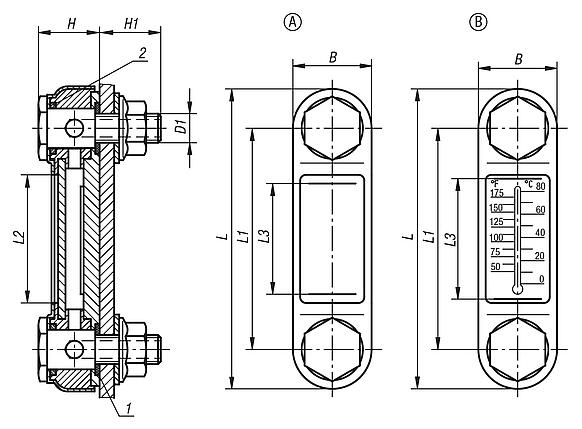

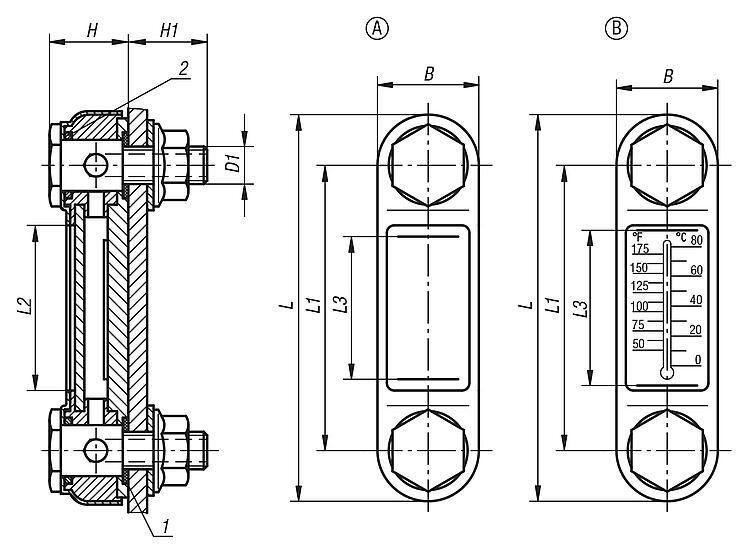

Drawings (total overview)

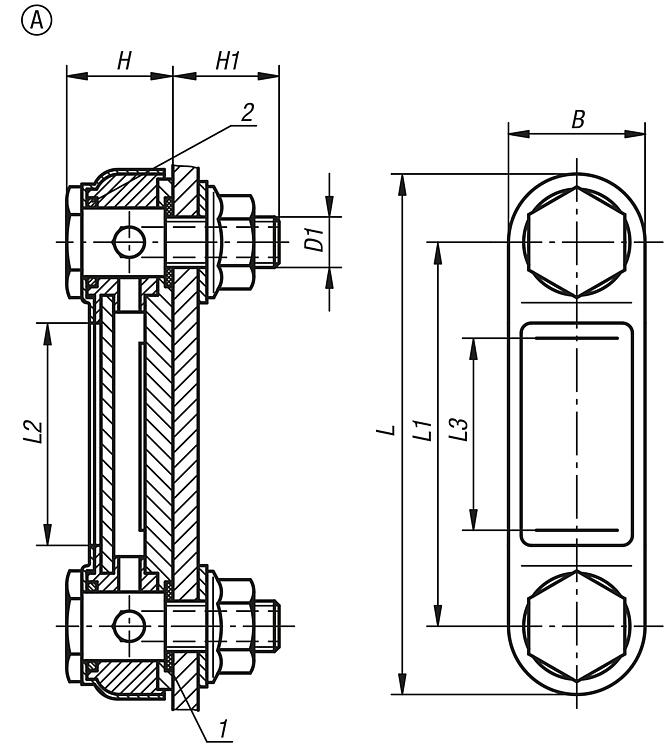

Oil level gauges, Form A, without thermometer

More information

Drawings

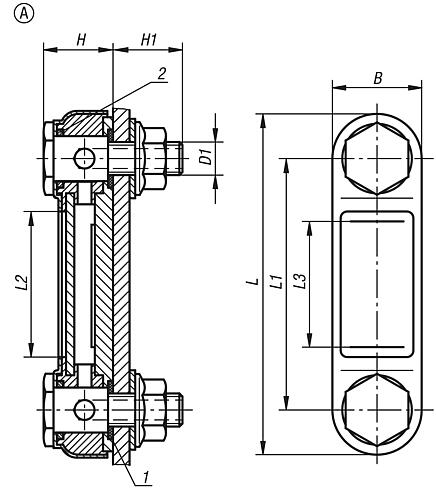

Oil level gauges, Form A, without thermometer

Item selection/filter

Order No.	Form	B	D1	H	H1	L	L1	L2	L3	Number of fastening screws	Price
28000-107610	A	31	M10	24,5	20	107	76	39	37	2	on request
28000-107612	A	31	M12	24,5	20	107	76	39	37	2	on request
28000-112710	A	31	M10	24,5	20	156	127	90	80	2	on request
28000-112712	A	31	M12	24,5	20	156	127	90	80	2	on request
28000-125412	A	34	M12	33	17	286	254	200	178	2	on request

Oil level gauges, Form B, with thermometer

More information

Drawings

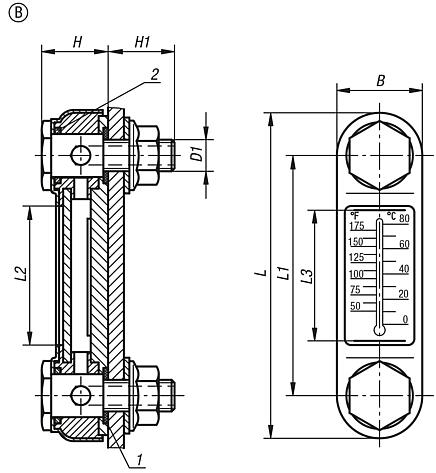

Oil level gauges, Form B, with thermometer

Item selection/filter

Order No.	Form	B	D1	H	H1	L	L1	L2	L3	Number of fastening screws	Thermometer scale	Price
28000-207610	B	31	M10	24,5	20	107	76	39	37	2	0 - 80 °C / 50 - 175 °F	on request
28000-207612	B	31	M12	24,5	20	107	76	39	37	2	0 - 80 °C / 50 - 175 °F	on request
28000-212710	B	31	M10	24,5	20	156	127	90	80	2	0 - 100 °C / 50 - 200 °F	on request
28000-212712	B	31	M12	24,5	20	156	127	90	80	2	0 - 100 °C / 50 - 200 °F	on request
28000-225412	B	34	M12	33	17	286	254	200	178	2	0 - 100 °C / 50 - 200 °F	on request
