DescriptionMaterial:Housing in thermoplastic polyamide.
Plastic reflector.Version:Housing, transparent, high mechanical stability, non-ageing, temperature resistant with oil up to 90 °C, resistant to solvents but not to alcohol or frost.
Flat seal, asbestos-free.
Reflector white.On request:Rubber gasket (NBR).Drawing reference:

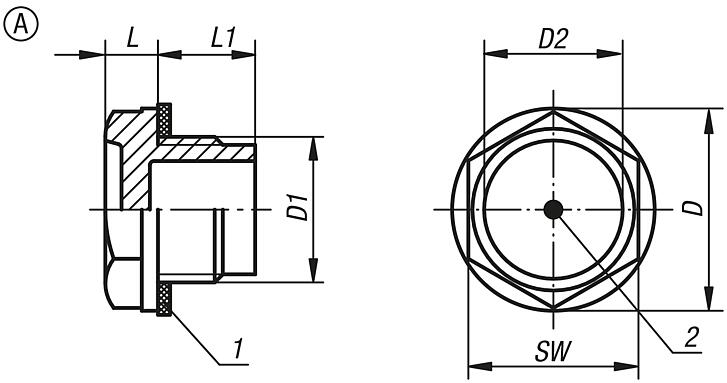

Form A: without reflector

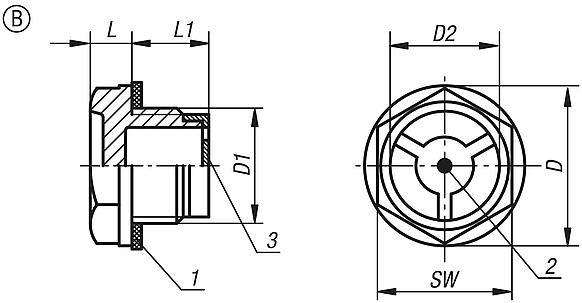

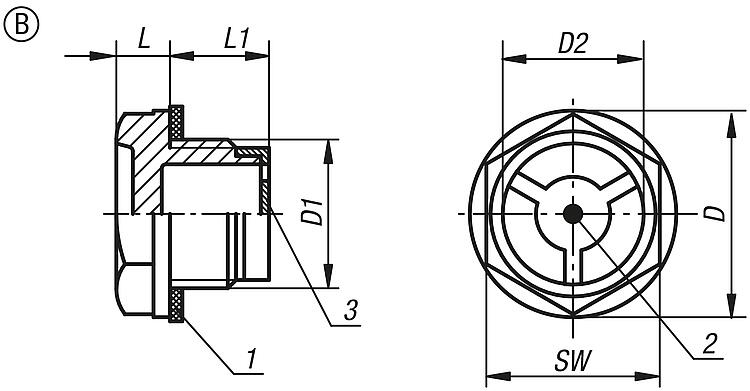

Form B: with reflector

1) flat seal
2) check mark
3) reflector

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28004 Oil level sight glasses

140 kB

Drawings (total overview)

Oil level sight glasses, Form A, without reflector

More information

Drawings

Oil level sight glasses, Form A, without reflector

Item selection/filter

	A	20,5 22 28 36 42 51 58 74 20 25,5	G1/4 G3/8 G1/2 G3/4 G1 G1 1/4 G1 1/2 G2 M14X1,5 M16X1,5 M18X1,5 M20X1,5 M22X1,5 M26X1,5 M27X1,5 M40X1,5	12 16 21 30 32 39 48 14	8 6,5 8,5 9 10 12 7,5 6	8,5 12 13,5 16 17 21 20 8 12,5	17 18 24 30 36 42 50 64 21	5 7 15 20 25 - 10				Reset
Order No.	Form	D	D1	D2	L	L1	SW	Tightening torque max. Nm	CAD	Acc.	Price	Order
28004-120014	A	20,5	G1/4	12	8	8,5	17	5			on request
28004-122038	A	22	G3/8	12	6,5	12	18	7			on request
28004-128012	A	28	G1/2	16	8	12	24	15			on request
28004-135034	A	36	G3/4	21	8,5	13,5	30	20			on request
28004-143100	A	42	G1	30	9	16	36	25			on request
28004-151114	A	51	G1 1/4	32	10	17	42	-			on request
28004-158112	A	58	G1 1/2	39	10	21	50	-			on request
28004-174200	A	74	G2	48	12	20	64	-			on request
28004-1201415	A	20	M14X1,5	12	7,5	8	17	5			on request
28004-1221615	A	22	M16X1,5	12	6,5	12,5	18	7			on request
28004-1251815	A	25,5	M18X1,5	14	6	12,5	21	10			on request
28004-1282015	A	28	M20X1,5	16	7,5	12	24	15			on request
28004-1282215	A	28	M22X1,5	16	7,5	12,5	24	15			on request
28004-1362615	A	36	M26X1,5	21	8,5	13,5	30	20			on request
28004-1362715	A	36	M27X1,5	21	8,5	13,5	30	20			on request
28004-1514015	A	51	M40X1,5	32	10	17	42	-			on request

Oil level sight glasses, Form B, with reflector

More information

Drawings

Oil level sight glasses, Form B, with reflector

Item selection/filter

	B	22 28 36 42 51 58 74 25,5	G3/8 G1/2 G3/4 G1 G1 1/4 G1 1/2 G2 M16X1,5 M18X1,5 M20X1,5 M22X1,5 M26X1,5 M27X1,5 M40X1,5	12 16 21 30 32 39 48 14	6,5 8 8,5 9 10 12 6 7,5	12 13,5 16 17 21 20 12,5	18 24 30 36 42 50 64 21	7 15 20 25 - 10				Reset
Order No.	Form	D	D1	D2	L	L1	SW	Tightening torque max. Nm	CAD	Acc.	Price	Order
28004-222038	B	22	G3/8	12	6,5	12	18	7			on request
28004-228012	B	28	G1/2	16	8	12	24	15			on request
28004-235034	B	36	G3/4	21	8,5	13,5	30	20			on request
28004-243100	B	42	G1	30	9	16	36	25			on request
28004-251114	B	51	G1 1/4	32	10	17	42	-			on request
28004-258112	B	58	G1 1/2	39	10	21	50	-			on request
28004-274200	B	74	G2	48	12	20	64	-			on request
28004-2221615	B	22	M16X1,5	12	6,5	12,5	18	7			on request
28004-2251815	B	25,5	M18X1,5	14	6	12,5	21	10			on request
28004-2282015	B	28	M20X1,5	16	7,5	12	24	15			on request
28004-2282215	B	28	M22X1,5	16	7,5	12,5	24	15			on request
28004-2362615	B	36	M26X1,5	21	8,5	13,5	30	20			on request
28004-2362715	B	36	M27X1,5	21	8,5	13,5	30	20			on request
28004-2514015	B	51	M40X1,5	32	10	17	42	-			on request
