29014Tube clamps flange, stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Investment cast 1.4308 stainless steel.
ISO 4762 cap screw and ISO 4032 hex nut, stainless steel.
From ø30 mm ISO 4017 hex head bolt, stainless steel. Version:Electropolished.Note:The tube clamps with diameters 30 and 40 mm have a silicone sleeve that protects the thread of the hex head screw from contamination and damage.On request:Clamping levers for tightening.Accessory:- Round and square tubes 29050Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

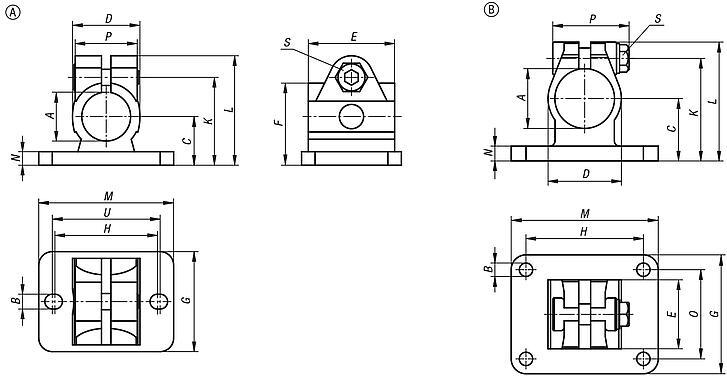

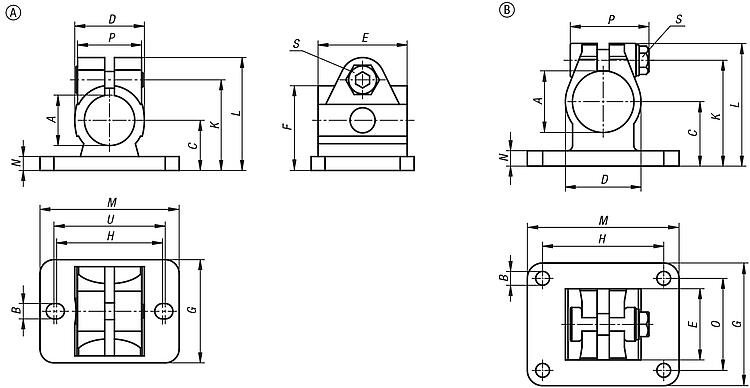

Drawings (total overview) |

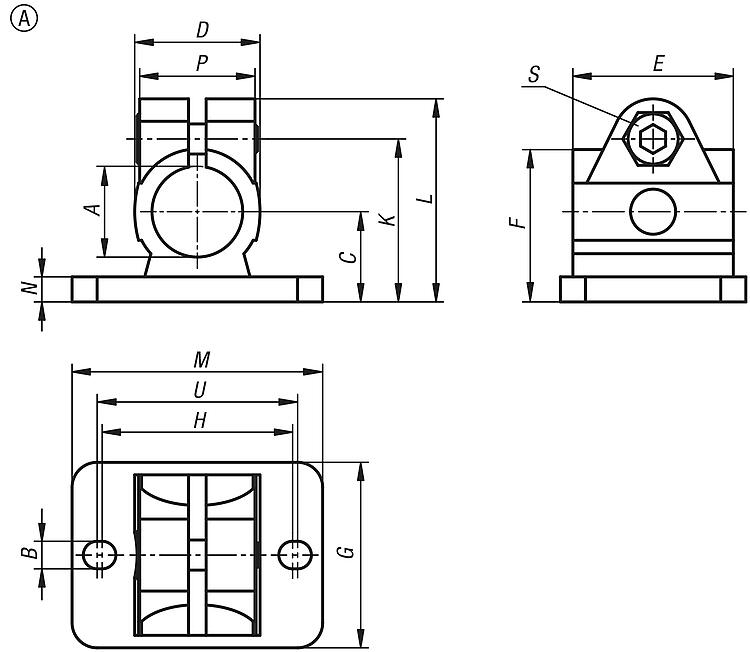

| Order No. | Form | A | B | C | D
| E | F | G | H | K | L | M | N | P | S | U | CAD | Acc. | Price | Order |
|---|
| 29014-112 | A | 12,1 | 5,5 | 18 | 25 | 32 | 30,4 | 37 | 38 | 32,5 | 40.5 | 50 | 5 | 23 | M6x18 | 40 |  | | on request | | | 29014-114 | A | 14,1 | 5,5 | 18 | 25 | 32 | 30,4 | 37 | 38 | 32,5 | 40.5 | 50 | 5 | 23 | M6x18 | 40 | | | on request | | | 29014-116 | A | 16,1 | 5,5 | 18 | 25 | 32 | 30,4 | 37 | 38 | 32,5 | 40.5 | 50 | 5 | 23 | M6x18 | 40 | | | on request | | | 29014-118 | A | 18,1 | 5,5 | 18 | 25 | 32 | 30,4 | 37 | 38 | 32,5 | 40.5 | 50 | 5 | 23 | M6x18 | 40 | | | on request | | | 29014-120 | A | 20,1 | 5,5 | 18 | 25 | 32 | 30,4 | 37 | 38 | 32,5 | 40.5 | 50 | 5 | 23 | M6x18 | 40 | | | on request | |
|

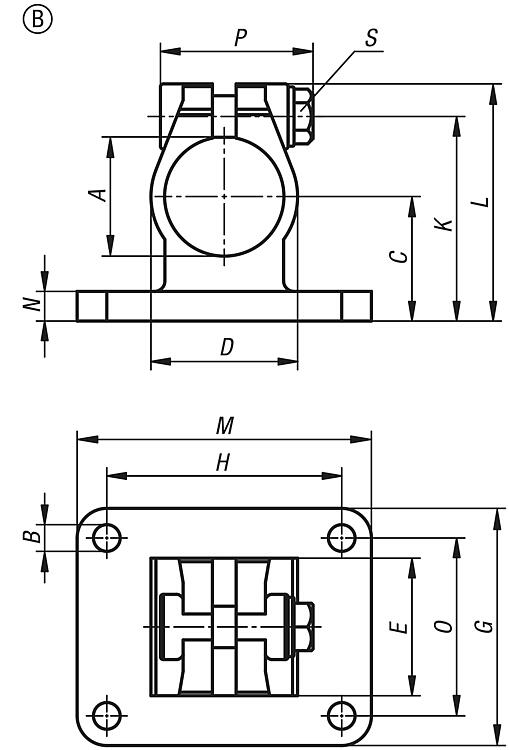

| Order No. | Form | A | B | C | D
| E | G | H | K | L | M | N | O | P | S | CAD | Acc. | Price | Order |
|---|
| 29014-130 | B | 30,1 | 7 | 30 | 37,4 | 32,4 | 55 | 60 | 50 | 59,2 | 78 | 7 | 40 | 45.5 | M8x30 | | | on request | | | 29014-140 | B | 40,17 | 9 | 42 | 49,4 | 46,4 | 80 | 60 | 69 | 80 | 80 | 10 | 60 | 52 | M10x35 | | | on request | |
|
