        Tube clamps, straight, aluminium

Item description/product images

Show/filter all items

DescriptionMaterial:Cast aluminium.
DIN 7984 screws and DIN 985 nuts, steel.Version:Vibratory ground.
Screws and nuts electro zinc-plated.On request:Clamping levers for tightening.Accessory:Round and square tubes 29050.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29022 Tube clamps, straight, aluminium

336 kB

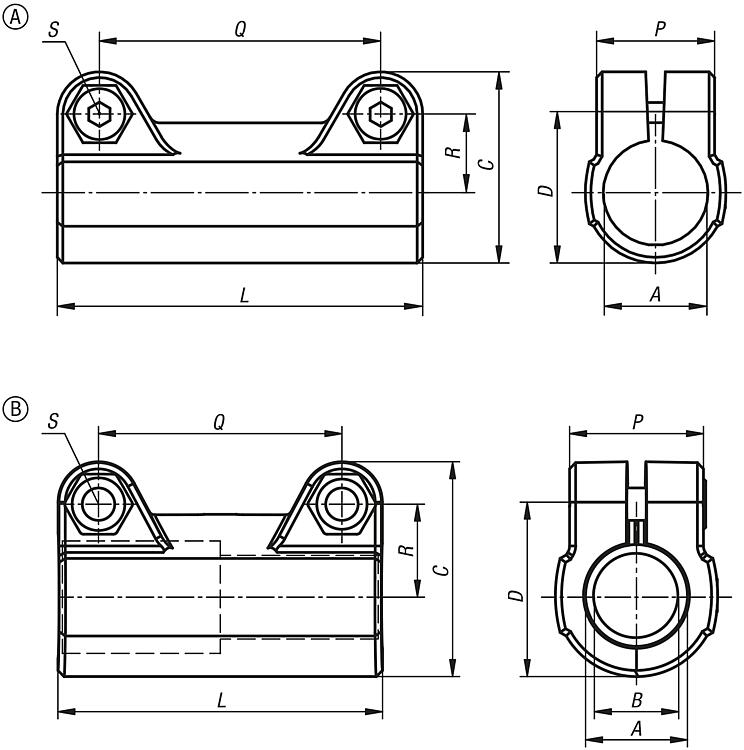

Drawings (total overview)

Tube clamps, straight, aluminium, Form A

More information

Drawings

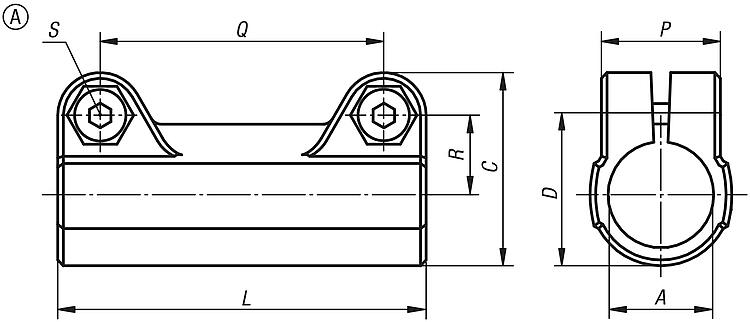

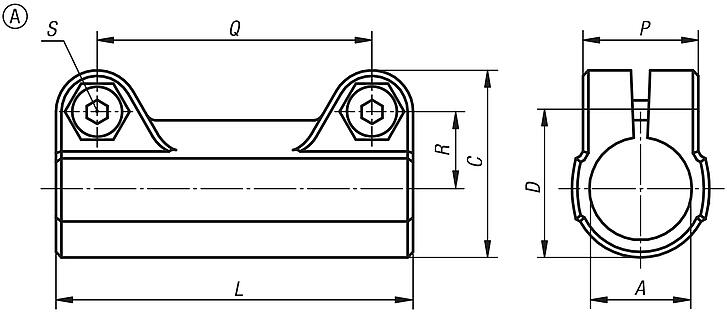

Tube clamps, straight, aluminium, Form A

Item selection/filter

	A	20,1 25,1 30,1 40,17 50,22 60,27	53 73 84 103	40 56 66 80	80 120 140 150	33 40 45 58	60 94 114 118	22,5 32 38 47	M8x25 M10x30 M10x35 M12x45				Reset
Order No.	Form	A	C	D	L	P	Q	R	S	CAD	Acc.	Price	Order
29022-52020	A	20,1	53	40	80	33	60	22,5	M8x25			on request
29022-52525	A	25,1	53	40	80	33	60	22,5	M8x25			on request
29022-53030	A	30,1	53	40	80	33	60	22,5	M8x25			on request
29022-54040	A	40,17	73	56	120	40	94	32	M10x30			on request
29022-55050	A	50,22	84	66	140	45	114	38	M10x35			on request
29022-56060	A	60,27	103	80	150	58	118	47	M12x45			on request

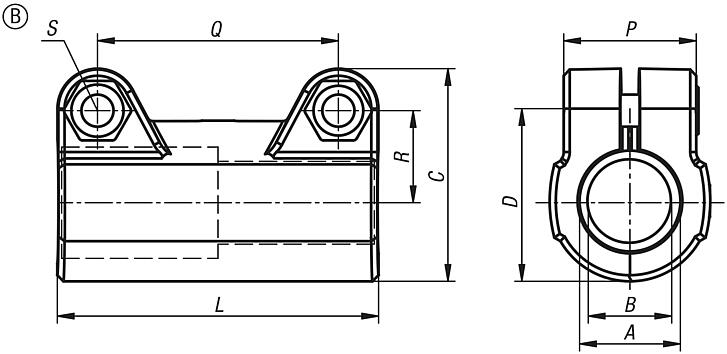

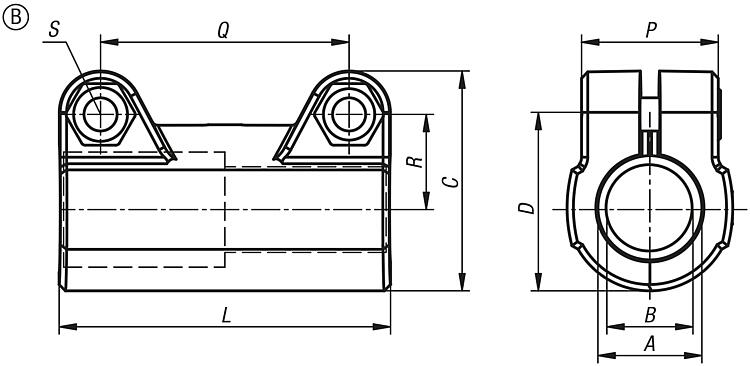

Tube clamp straight, aluminium, Form B

More information

Drawings

Item selection/filter

	B	30,1 40,17 50,22 60,27	25,1 32,15 40,17 48,27	53 73 84 103	40 56 66 80	80 120 140 150	33 40 45 58	60 94 114 118	22,5 32 38 47	M8x25 M10x30 M10x35 M12x45				Reset
Order No.	Form	A	B	C	D	L	P	Q	R	S	CAD	Acc.	Price	Order
29022-53025	B	30,1	25,1	53	40	80	33	60	22,5	M8x25			on request
29022-54032	B	40,17	32,15	73	56	120	40	94	32	M10x30			on request
29022-55040	B	50,22	40,17	84	66	140	45	114	38	M10x35			on request
29022-56048	B	60,27	48,27	103	80	150	58	118	47	M12x45			on request
