Coolant hose LOC-LINE® Flexi
 96200

Coolant hose LOC-LINE® Flexi

 go back

Item description/product images
DescriptionMaterial:Polyoxymethylene (POM).Version:Flexible hose blue or black.
Accessories orange.Note:The flexible hose is used to direct liquids or extract liquids, dust, steam or smoke. It can be extended and shortened as needed. The material is resistant to most chemicals and solvents. It is not electrically conductive, so it is also suitable for use on EDM's.

Precise adjustment, vibration resistant, position reliability, pressure stability. Freely combinable with nozzles, fasteners, junctions, T-pieces, reducers, extensions etc.

Recommneded line pressure:
Size 1/4˝ 2 - 3.5 bar
Size 1/2˝ 1.4 - 2 bar
Size 3/4˝ 0.7 - 1.4 bar

Flow rate:
Size 1/4˝ 950 l/min.
Size 1/2˝ 1800 l/min.
Size 3/4˝ 4300 l/min.Temperature range:-20 °C to +80 °C.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 96200 Coolant hose LOC-LINE® Flexi 1,1 MB

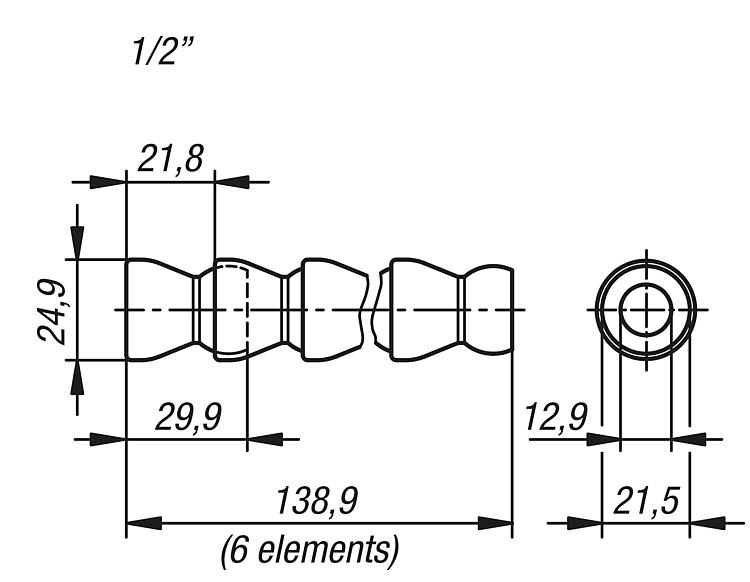

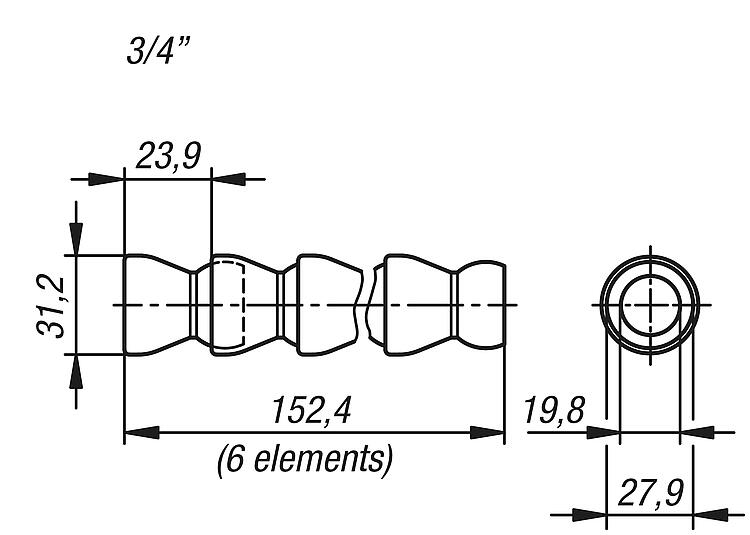

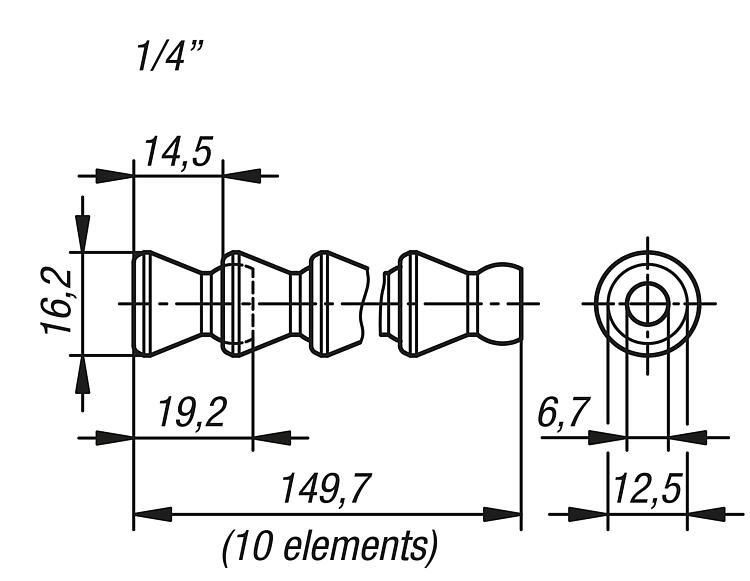

Drawings

Coolant hose LOC-LINE® Flexi

Item selection/filter
Order No.Article description

ItemSizeApplicationImageCADAcc.PriceOrder
96200-1400141FLEXIBLE HOSE SIZE:1/4 L=140, BLUEFlexible Hose1/4 on request
96200-1400142FLEXIBLE HOSE SIZE:1/4 L=140, BLACKFlexible Hose1/4 on request
96200-1415001FLEXIBLE HOSE SIZE:1/4 L=15M, BLUEFlexible Hose1/4 on request
96200-1415002FLEXIBLE HOSE SIZE:1/4 L=15M, BLACKFlexible Hose1/4 on request
96200-1401ROUND NOZZLE SIZE:1/4, D=1,5Round Nozzle1/4punctiform jet on request
96200-1402ROUND NOZZLE SIZE:1/4, D=3Round Nozzle1/4punctiform jet on request
96200-1403ROUND NOZZLE SIZE:1/4, D=6Round Nozzle1/4punctiform jet on request
96200-1404FLAT NOZZLE WIDE SPRAY SIZE:1/4 B=25Flat Nozzle1/4flat wide jet on request
96200-1405FLAT NOZZLE SIZE:1/4 B=12X1Flat Nozzle1/4jet with constant profile on request
96200-1406FLAT NOZZLE SIZE:1/4 B=12X1,5Flat Nozzle1/4jet with constant profile on request
96200-1407FLAT NOZZLE SIZE:1/4, 5-HOLEFlat Nozzle1/4several parallel single jets on request
96200-1408FLAT NOZZLE SIZE:1/4, 7-HOLEFlat Nozzle1/4several parallel single jets on request
96200-1409GRINDING NOZZLE SIZE:1/4 B=25Grinding Nozzle1/4straight bundled jet on request
96200-1410FLAT NOZZLE WITH BALL JOINT SIZE:1/4, 16-HOLE, D=1Flat Nozzle1/4several parallel single jets on request
96200-1411FLAT NOZZLE WITH BALL JOINT SIZE:1/4, 16-HOLE, D=1,5Flat Nozzle1/4several parallel single jets on request
96200-1412FLAT NOZZLE WITH BALL JOINT SIZE:1/4, 20-HOLE, D=2Flat Nozzle1/4several parallel single jets on request
96200-1413ANGLED NOZZLE 90° SIZE:1/4, D=1,5Angled Nozzle1/4punctiform jet on request
96200-1414ANGLED NOZZLE 90° SIZE:1/4, D=3Angled Nozzle1/4punctiform jet on request
96200-1415ANGLED NOZZLE 90° SIZE:1/4, D=6Angled Nozzle1/4punctiform jet on request
96200-1416ANGLED NOZZLE 90° SIZE:1/4, 6-HOLEAngled Nozzle1/4several parallel single jets on request
96200-1417SCREW CONNECTION 1/8 NPT SIZE:1/4Screw Connection1/4with ball and external thread on request
96200-1418SCREW CONNECTION 1/4 NPT SIZE:1/4Screw Connection1/4with ball and external thread on request
96200-1419DISTRIBUTOR SIZE:1/4Distributor1/42 hoses from 1 supply line on request
96200-1420DISTRIBUTOR SIZE:1/4Distributor1/42 hoses at 90° from 1 supply line on request
96200-1421CONNECTING PIECE SIZE:1/4Connecting Piece1/4for tight bends on request
96200-1422COUPLING SIZE:1/4Coupling1/4socket both sides on request
96200-1423ADAPTER SIZE:1/4, D=1/8Adapter1/4with socket and internal thread on request
96200-1424EXTENSION SIZE:1/4 L=95Extension1/4for bridging long stretches on request
96200-1425HOSE BEND 90° SIZE:1/4Hose Bend1/4for bends on request
96200-1426RING SYSTEM SIZE:1/4Ring System1/4lateral spray on request
96200-1427LOCKING RING WITH SCREW SIZE:1/4Locking Ring1/4prevents bending or positional change at high pressure on request
96200-1428CHECK VALVE SIZE:1/4Check Valve1/4prevents dripping on request
96200-1429SHUT-OFF VALVE EXTERNAL THREAD SIZE:1/4, 1/4 NPTShut-Off Valve1/4regulates and stops the flow on request
96200-1430SHUT-OFF VALVE INTERNAL THREAD SIZE:1/4, 1/4 NPTShut-Off Valve1/4regulates and stops the flow on request
96200-1431SHUT-OFF VALVE WITH SEGMENT ADAPTER SIZE:1/4Shut-Off Valve1/4regulates and stops the flow on request
96200-1499ASSEMBLY TOOL SIZE:1/4Assembly Tool1/4for assembling hose elements on request
96200-1200141FLEXIBLE HOSE SIZE:1/2 L=140, BLUEFlexible Hose1/2 on request
96200-1200142FLEXIBLE HOSE SIZE:1/2 L=140, BLACKFlexible Hose1/2 on request
96200-1215001FLEXIBLE HOSE SIZE:1/2 L=15M, BLUEFlexible Hose1/2 on request
96200-1215002FLEXIBLE HOSE SIZE:1/2 L=15M, BLACKFlexible Hose1/2 on request
96200-1201ROUND NOZZLE SIZE:1/2, D=6Round Nozzle1/2punctiform jet on request
96200-1202ROUND NOZZLE SIZE:1/2, D=9Round Nozzle1/2punctiform jet on request
96200-1203ROUND NOZZLE SIZE:1/2, D=12Round Nozzle1/2punctiform jet on request
96200-1204FLAT NOZZLE WIDE SPRAY SIZE:1/2 B=32Flat Nozzle1/2flat wide jet on request
96200-1205FLAT NOZZLE WIDE SPRAY SIZE:1/2 B=63Flat Nozzle1/2flat wide jet on request
96200-1206FLAT NOZZLE SIZE:1/2 B=18X2Flat Nozzle1/2jet with constant profile on request
96200-1207FLAT NOZZLE SIZE:1/2 B=18X3,2Flat Nozzle1/2jet with constant profile on request
96200-1208FLAT NOZZLE SIZE:1/2, 5-HOLE, D=3,2Flat Nozzle1/2several parallel single jets on request
96200-1209FLAT NOZZLE SIZE:1/2, 7-HOLE, D=2Flat Nozzle1/2several parallel single jets on request
96200-1210GRINDING NOZZLE SIZE:1/2 B=32Grinding Nozzle1/2straight bundled jet on request
96200-1211GRINDING NOZZLE SIZE:1/2 B=42Grinding Nozzle1/2straight bundled jet on request
96200-1212FLAT NOZZLE WITH BALL JOINT SIZE:1/2, 20-HOLE, D=2Flat Nozzle1/2several parallel single jets on request
96200-1213ANGLED NOZZLE 90° SIZE:1/2, D=6Angled Nozzle1/2punctiform jet on request
96200-1214ANGLED NOZZLE 90° SIZE:1/2, D=9Angled Nozzle1/2punctiform jet on request
96200-1215ANGLED NOZZLE 90° SIZE:1/2, D=12Angled Nozzle1/2punctiform jet on request
96200-1216ANGLED NOZZLE 90° SIZE:1/2, 8-HOLEAngled Nozzle1/2several parallel single jets on request
96200-1217SCREW CONNECTION 3/8 NPT SIZE:1/2Screw Connection1/2with ball and external thread on request
96200-1218SCREW CONNECTION 1/2 NPT SIZE:1/2Screw Connection1/2with ball and external thread on request
96200-1219DISTRIBUTOR SIZE:1/2Distributor1/22 hoses from 1 supply line on request
96200-1220DISTRIBUTOR REDUCED SIZE:1/2-1/4Distributor1/2 - 1/42 hoses from 1 supply line on request
96200-1221DISTRIBUTOR SIZE:1/2Distributor1/22 hoses at 90° from 1 supply line on request
96200-1222CONNECTING PIECE SIZE:1/2, ORANGEConnecting Piece1/2for tight bends on request
96200-1223COUPLING SIZE:1/2, ORANGECoupling1/2socket both sides on request
96200-1224REDUCER SLEEVE SIZE:1/2-1/4Reducer sleeve1/2 - 1/4reduces from 1/2" to 1/4" on request
96200-1225EXTENSION SIZE:1/2 L=95Extension1/2for bridging long stretches on request
96200-1226HOSE BEND 90° SIZE:1/2Hose Bend1/2for bends on request
96200-1227RING SYSTEM SIZE:1/2Ring System1/2lateral spray on request
96200-1228LOCKING RING WITH SCREW SIZE:1/2Locking Ring1/2prevents bending or positional change at high pressure on request
96200-1229CHECK VALVE SIZE:1/2Check Valve1/2prevents dripping on request
96200-1230SHUT-OFF VALVE EXTERNAL THREAD SIZE:1/2, 1/2 NPTShut-Off Valve1/2regulates and stops the flow on request
96200-1231SHUT-OFF VALVE INTERNAL THREAD SIZE:1/2, 1/2 NPTShut-Off Valve1/2regulates and stops the flow on request
96200-1232SHUT-OFF VALVE WITH SEGMENT ADAPTER SIZE:1/2Shut-Off Valve1/2regulates and stops the flow on request
96200-1299ASSEMBLY TOOL SIZE:1/2Assembly Tool1/2for assembling hose elements on request
96200-3400151FLEXIBLE HOSE SIZE:3/4 L=152, BLUEFlexible Hose3/4 on request
96200-3400152FLEXIBLE HOSE SIZE:3/4 L=152, BLACKFlexible Hose3/4 on request
96200-3401501FLEXIBLE HOSE SIZE:3/4 L=1,5M, BLUEFlexible Hose3/4 on request
96200-3401502FLEXIBLE HOSE SIZE:3/4 L=1,5M, BLACKFlexible Hose3/4 on request
96200-3415001FLEXIBLE HOSE SIZE:3/4 L=15M, BLUEFlexible Hose3/4 on request
96200-3415002FLEXIBLE HOSE SIZE:3/4 L=15M, BLACKFlexible Hose3/4 on request
96200-3401ROUND NOZZLE SIZE:3/4, D=16Round Nozzle3/4punctiform jet on request
96200-3402ROUND NOZZLE SIZE:3/4, D=19Round Nozzle3/4punctiform jet on request
96200-3403FLAT NOZZLE WIDE SPRAY SIZE:3/4 B=76Flat Nozzle3/4flat wide jet on request
96200-3404SCREW CONNECTION NPT 3/4 SIZE:3/4Screw Connection3/4with ball and male thread on request
96200-3405SCREW CONNECTION BSPT 3/4 SIZE:3/4Screw Connection3/4with ball and male thread on request
96200-3406CONNECTING FOOT WITH SCREW HOLE SIZE:3/4Connecting Foot3/4 on request
96200-3407DISTRIBUTOR SIZE:3/4Distributor3/42 hoses from 1 supply line on request
96200-3408DISTRIBUTOR REDUCED SIZE:3/4-1/2Distributor3/4-1/2reduces from 3/4" to 1/2" on request
96200-3409REDUCER SLEEVE SIZE:3/4-1/2Reducer sleeve3/4-1/2reduces from 1/2" to 1/4" on request
96200-3410COUPLING SIZE:3/4Coupling3/4socket both sides on request
96200-3411CONNECTING PIECE SIZE:3/4Connecting Piece3/4for tight bends on request
96200-3412SHUT-OFF VALVE EXTERNAL THREAD SIZE:3/4, NPT 3/4Shut-Off Valve3/4regulates and stops the flow on request
96200-3413SHUT-OFF VALVE INTERNAL THREAD SIZE:3/4, NPT 3/4Shut-Off Valve3/4regulates and stops the flow on request
96200-3414SHUT-OFF VALVE WITH SEGMENT ADAPTER SIZE:3/4Shut-Off Valve3/4regulates and stops the flow on request
96200-3499ASSEMBLY TOOL SIZE:3/4Assembly Tool3/4for assembling hose elements on request
