DescriptionMaterial:Polyoxymethylene (POM).
Nozzle stainless steel.Version:Colour blue/orange.Note:The extremely compact design makes this high-pressure nozzle ideal for use where space is at a premium. When screwed in position, the nozzle can be adjusted using a pin and retains its positional stability. Additional security is not required. It can be rotated 360° and withstands working pressure ranges of up to 70 bar.
Resistant to: acetone, alcohol, ethyl, grease, oil, commercially available dishwashing detergent, petrol, paint, solvents, sodium hydroxide.
Not resistant to: chlorine, acids, ammonium hydroxide, strong bases, hypochlorite ionic solutions, sodium hypochlorite.
Form A: nozzle pivot range up to 72°
Form B: nozzle pivot range up to 110° (for applications where the jet is also required below the screw-on level)Temperature range:Maximum temperature range 50 °C.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

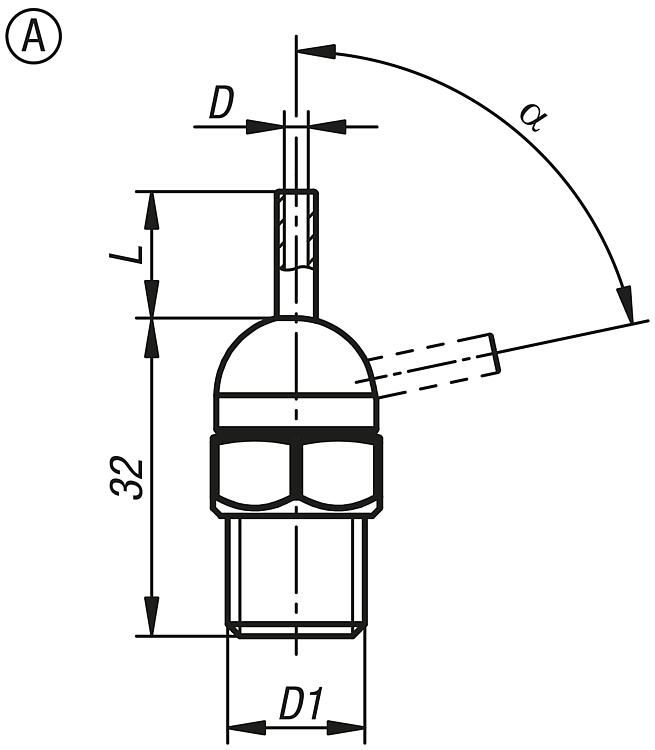

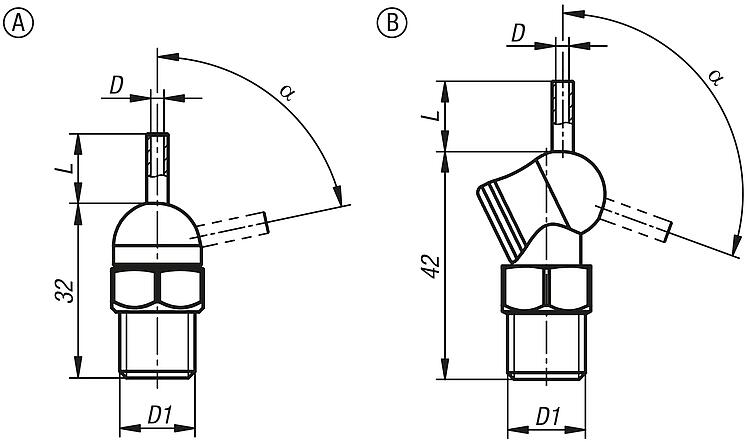

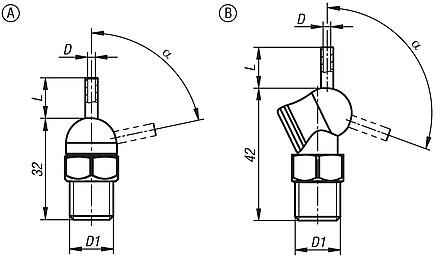

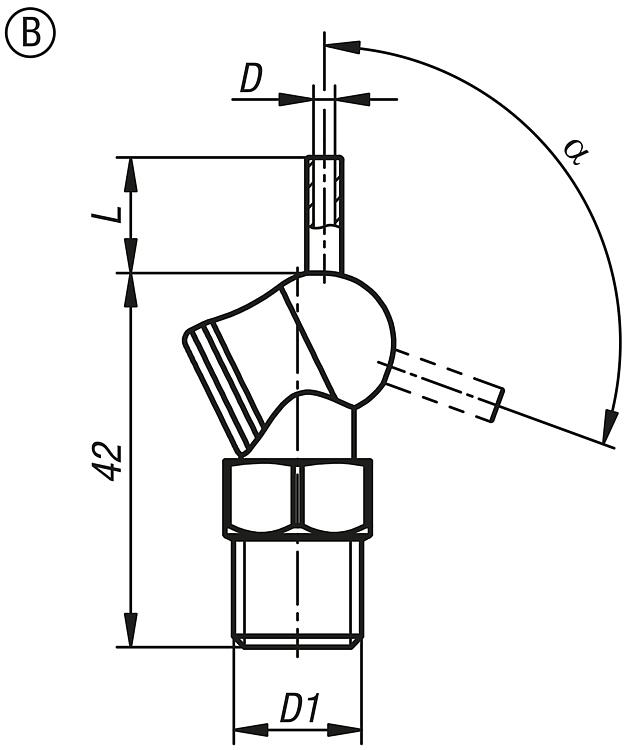

Drawings (total overview) |
| Order No. | Form | D | D1 | L | α | CAD | Acc. | Price | Order |
|---|
| 96205-11816000 | A | 1,6 | R1/8 | - | 72° |  | | on request | | | 96205-11816064 | A | 1,6 | R1/8 | 6,4 | 72° | | | on request | | | 96205-11816127 | A | 1,6 | R1/8 | 12,7 | 72° | | | on request | | | 96205-11816318 | A | 1,6 | R1/8 | 31,8 | 72° | | | on request | | | 96205-11822000 | A | 2,2 | R1/8 | - | 72° | | | on request | | | 96205-11822064 | A | 2,2 | R1/8 | 6,4 | 72° | | | on request | | | 96205-11822127 | A | 2,2 | R1/8 | 12,7 | 72° | | | on request | | | 96205-11822318 | A | 2,2 | R1/8 | 31,8 | 72° | | | on request | | | 96205-11830000 | A | 3 | R1/8 | - | 72° | | | on request | | | 96205-11830064 | A | 3 | R1/8 | 6,4 | 72° | | | on request | | | 96205-11830127 | A | 3 | R1/8 | 12,7 | 72° | | | on request | | | 96205-11830318 | A | 3 | R1/8 | 31,8 | 72° | | | on request | | | 96205-11841000 | A | 4,1 | R1/8 | - | 70° | | | on request | | | 96205-11841064 | A | 4,1 | R1/8 | 6,4 | 70° | | | on request | | | 96205-11841127 | A | 4,1 | R1/8 | 12,7 | 70° | | | on request | | | 96205-11841318 | A | 4,1 | R1/8 | 31,8 | 70° | | | on request | | | 96205-11416000 | A | 1,6 | R1/4 | - | 72° | | | on request | | | 96205-11416064 | A | 1,6 | R1/4 | 6,4 | 72° | | | on request | | | 96205-11416127 | A | 1,6 | R1/4 | 12,7 | 72° | | | on request | | | 96205-11416318 | A | 1,6 | R1/4 | 31,8 | 72° | | | on request | | | 96205-11422000 | A | 2,2 | R1/4 | - | 72° | | | on request | | | 96205-11422064 | A | 2,2 | R1/4 | 6,4 | 72° | | | on request | | | 96205-11422127 | A | 2,2 | R1/4 | 12,7 | 72° | | | on request | | | 96205-11422318 | A | 2,2 | R1/4 | 31,8 | 72° | | | on request | | | 96205-11430000 | A | 3 | R1/4 | - | 72° | | | on request | | | 96205-11430064 | A | 3 | R1/4 | 6,4 | 72° | | | on request | | | 96205-11430127 | A | 3 | R1/4 | 12,7 | 72° | | | on request | | | 96205-11430318 | A | 3 | R1/4 | 31,8 | 72° | | | on request | | | 96205-11441000 | A | 4,1 | R1/4 | - | 70° | | | on request | | | 96205-11441064 | A | 4,1 | R1/4 | 6,4 | 70° | | | on request | | | 96205-11441127 | A | 4,1 | R1/4 | 12,7 | 70° | | | on request | | | 96205-11441318 | A | 4,1 | R1/4 | 31,8 | 70° | | | on request | |
|
| Order No. | Form | D | D1 | L | α | CAD | Acc. | Price | Order |
|---|
| 96205-21816000 | B | 1,6 | R1/8 | - | 110° | | | on request | | | 96205-21816064 | B | 1,6 | R1/8 | 6,4 | 110° | | | on request | | | 96205-21816127 | B | 1,6 | R1/8 | 12,7 | 110° | | | on request | | | 96205-21816318 | B | 1,6 | R1/8 | 31,8 | 110° | | | on request | | | 96205-21822000 | B | 2,2 | R1/8 | - | 110° | | | on request | | | 96205-21822064 | B | 2,2 | R1/8 | 6,4 | 110° | | | on request | | | 96205-21822127 | B | 2,2 | R1/8 | 12,7 | 110° | | | on request | | | 96205-21822318 | B | 2,2 | R1/8 | 31,8 | 110° | | | on request | | | 96205-21830000 | B | 3 | R1/8 | - | 110° | | | on request | | | 96205-21830064 | B | 3 | R1/8 | 6,4 | 110° | | | on request | | | 96205-21830127 | B | 3 | R1/8 | 12,7 | 110° | | | on request | | | 96205-21830318 | B | 3 | R1/8 | 31,8 | 110° | | | on request | | | 96205-21841000 | B | 4,1 | R1/8 | - | 102° | | | on request | | | 96205-21841064 | B | 4,1 | R1/8 | 6,4 | 102° | | | on request | | | 96205-21841127 | B | 4,1 | R1/8 | 12,7 | 102° | | | on request | | | 96205-21841318 | B | 4,1 | R1/8 | 31,8 | 102° | | | on request | | | 96205-21416000 | B | 1,6 | R1/4 | - | 110° | | | on request | | | 96205-21416064 | B | 1,6 | R1/4 | 6,4 | 110° | | | on request | | | 96205-21416127 | B | 1,6 | R1/4 | 12,7 | 110° | | | on request | | | 96205-21416318 | B | 1,6 | R1/4 | 31,8 | 110° | | | on request | | | 96205-21422000 | B | 2,2 | R1/4 | - | 110° | | | on request | | | 96205-21422064 | B | 2,2 | R1/4 | 6,4 | 110° | | | on request | | | 96205-21422127 | B | 2,2 | R1/4 | 12,7 | 110° | | | on request | | | 96205-21422318 | B | 2,2 | R1/4 | 31,8 | 110° | | | on request | | | 96205-21430000 | B | 3 | R1/4 | - | 110° | | | on request | | | 96205-21430064 | B | 3 | R1/4 | 6,4 | 110° | | | on request | | | 96205-21430127 | B | 3 | R1/4 | 12,7 | 110° | | | on request | | | 96205-21430318 | B | 3 | R1/4 | 31,8 | 110° | | | on request | | | 96205-21441000 | B | 4,1 | R1/4 | - | 102° | | | on request | | | 96205-21441064 | B | 4,1 | R1/4 | 6,4 | 102° | | | on request | | | 96205-21441127 | B | 4,1 | R1/4 | 12,7 | 102° | | | on request | | | 96205-21441318 | B | 4,1 | R1/4 | 31,8 | 102° | | | on request | |
|
