Ball chains

96390

Ball chains

Products
- Product overview
  - norelem technoshop
    - Coolant hoses Feeler gauge strips Magnetic labels and envelopes Protective nets Supercraft mallets and inserts Taper and cylinder cleaners
      - Ball chains

Item description/product images

Show/filter all items

DescriptionMaterial:

A: Chain brass or stainless steel.
B: Chain brass or stainless steel, key ring stainless steel.
C: Chain brass, ring 1.4310 stainless steel.

Note:If no length is specified 1000 mm will be supplied.Drawing reference:

1) same parts

Form A: ball chain, single
Form B: ball chain with key ring
Form C: ball chain with ring clip

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 96390 Ball chains

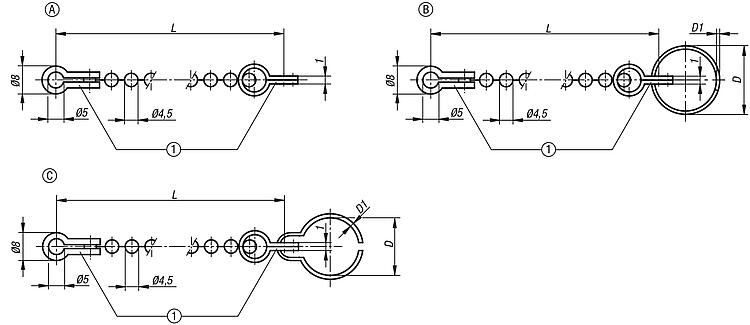

Drawings (total overview)

Ball chains

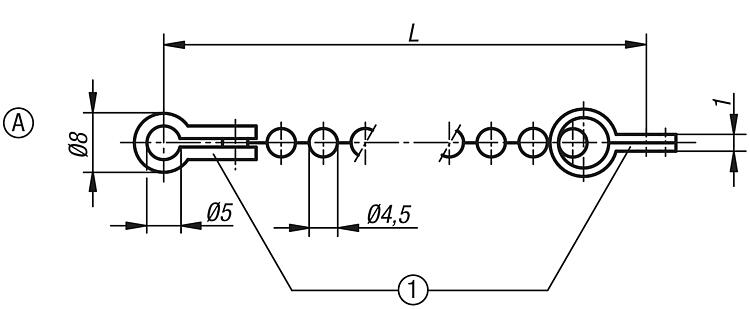

Ball chains, Form A, single

More information

Drawings

Ball chains, Form A, single

Overview of items (compressed)

Item selection/filter

Order No. brass	Order No. stainless steel	Form	L	Filter
96390-00X	96390-01X	A	160/320/500/1000

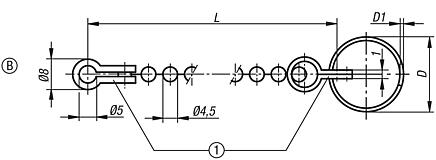

Ball chains, Form B, with key ring

More information

Drawings

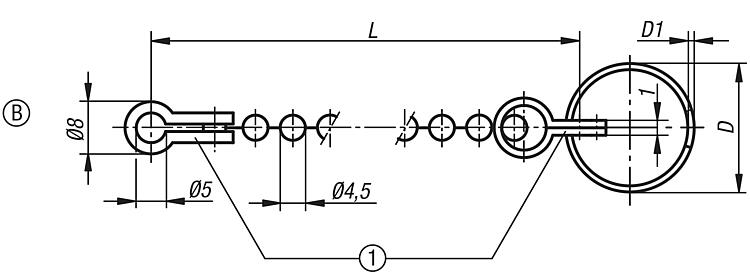

Ball chains, Form B, with key ring

Overview of items (compressed)

Item selection/filter

Order No. brass	Order No. stainless steel	Form	L	D	D1	Filter
96390-015X	96390-115X	B	160/320/500/1000	15	1
96390-019X	96390-119X	B	160/320/500/1000	19	1
96390-023X	96390-123X	B	160/320/500/1000	23	1,2
96390-028X	96390-128X	B	160/320/500/1000	28	1,7

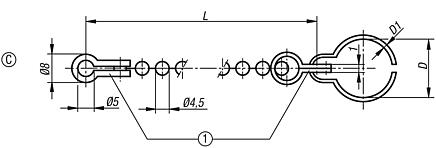

Ball chains, Form C, with ring clip

More information

Drawings

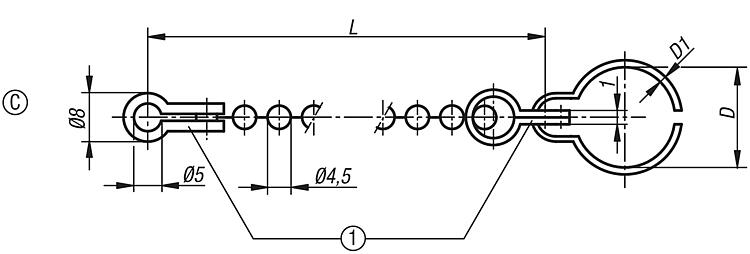

Ball chains, Form C, with ring clip

Overview of items (compressed)

Item selection/filter

Order No.	Form	Main material	L	D	D1	Filter
96390-09X	C	brass	160/320/500/1000	9	1
96390-12X	C	brass	160/320/500/1000	12	1,2
96390-14X	C	brass	160/320/500/1000	14	1,6
96390-16X	C	brass	160/320/500/1000	16	1,6
96390-20X	C	brass	160/320/500/1000	20	2
96390-24X	C	brass	160/320/500/1000	24	2
96390-30X	C	brass	160/320/500/1000	30	2,6
96390-36X	C	brass	160/320/500/1000	36	2,6
