UNILOCK 5-axis base plate for general clamping, system size 80 mm
Item description/product images
DescriptionMaterial:Steel.Version:Main body oxidised. Contact faces case-hardened and ground.Note:The UNILOCK 5-axis baseplates for general clamping fit onto machine tables with grid hole systems or in T-slots, or onto grid hole tooling plates. Due to their robust construction, these elevated devices are ideal as a base supports for large and heavy workpieces. The arrangement of the fastening slots facilitates flexible adaptation to the workpiece and the machine table. Wider T-slot spacings can be achieved with the larger version. In the small version, the fastening slots are open for improved chip evacuation.Advantages:Stable base structure for mounting the 5-axis basic modules for clamping large and heavy workpieces. Rapid fastening of the base plates onto a machine table due to a large number of fastening slots. Flexible positioning of the workpieces on the machine table.Drawing reference:

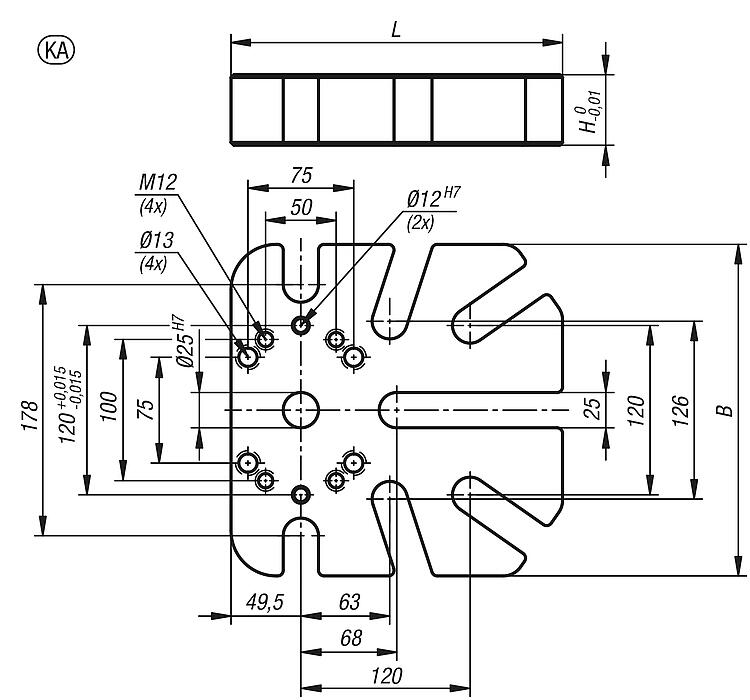

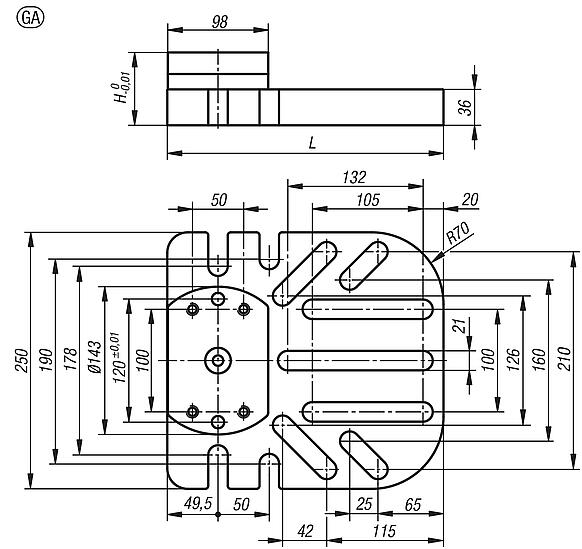

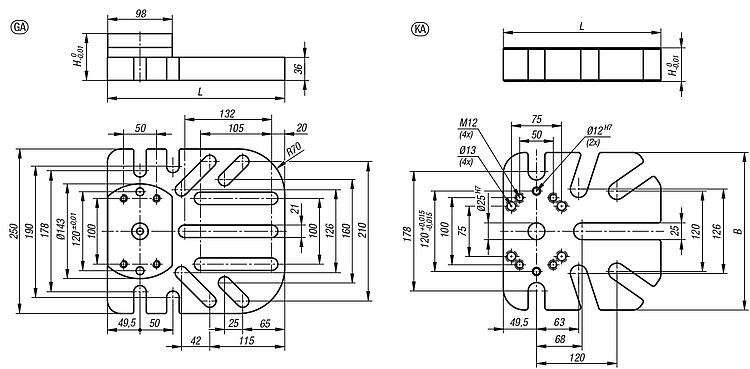

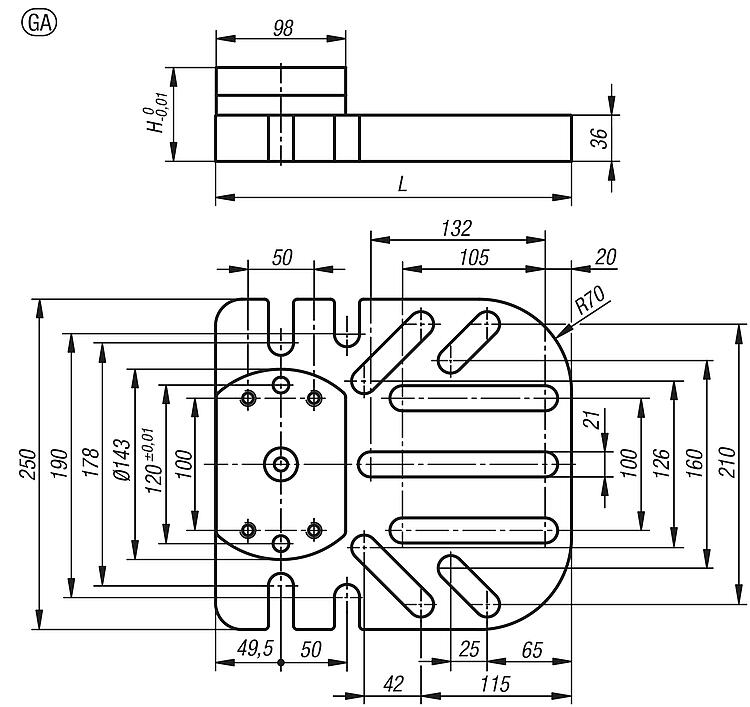

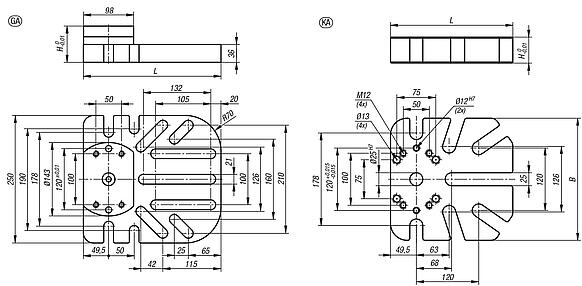

Form GA: large version Form KA: small version
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
