        UNILOCK 5-axis reducer adapter size 80 mm

Item description/product images

DescriptionMaterial:Body rust-free tool steel.
Clamping pin low carbon steel.Version:Contact faces on the body hardened and ground.
Clamping pin oxidised. Contact faces hardened and ground.Note:The UNILOCK 5-axis reducer adapter is suitable for clamping and positioning workpieces. Reducer adapters can be screwed onto the workpiece and mounted on the basic module or add-on module. Reducer adapters are available as hardened versions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 42206 UNILOCK 5-axis reducer adapter size 80 mm

216 kB

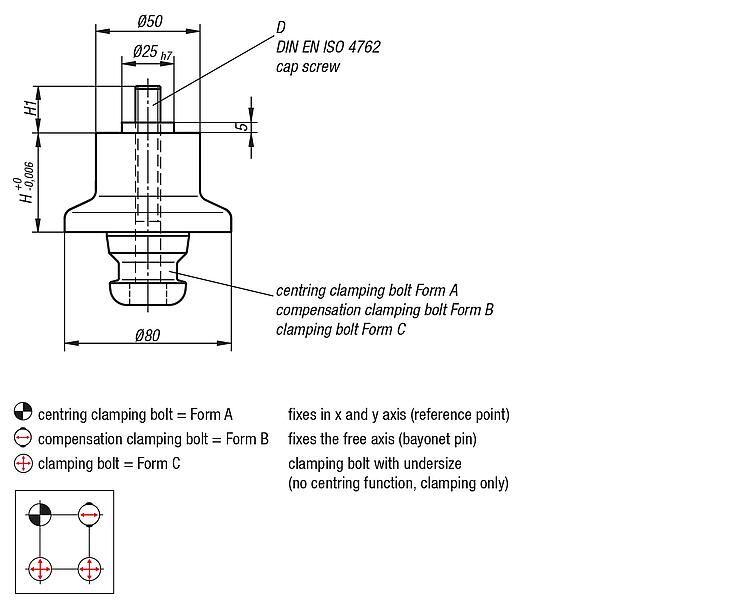

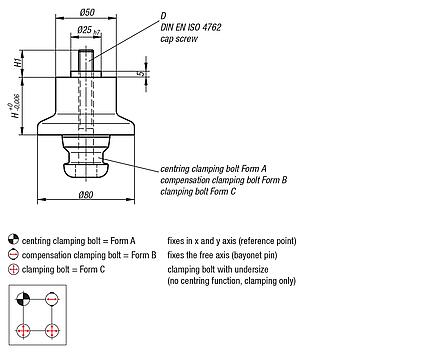

Drawings

Item selection/filter

Order No.	Version 2	Form	Form definition	D	H	H1	Price
42206-501101	hard	A	Centring Pin	M10X100	50	25,5	on request
42206-502101	hard	B	adjustment pin	M10X100	50	25,5	on request
42206-503101	hard	C	Clamping Pin	M10X100	50	25,5	on request
42206-501121	hard	A	Centring Pin	M12X100	50	27,5	on request
42206-502121	hard	B	adjustment pin	M12X100	50	27,5	on request
42206-503121	hard	C	Clamping Pin	M12X100	50	27,5	on request
