42205UNILOCK 5-axis face-grip adapter size 80 mm |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Body rust-free tool steel.
Clamping pin low carbon steel.Version:Contact faces on the body hardened and ground.
Clamping pin oxidised. Contact faces hardened and ground.Note:The UNILOCK 5-axis face-grip adapters are suitable for clamping workpieces, which must be machined on all sides. The workpieces are freely accessible without interfering edges from the clamping elements. The workpieces are attached from below using a socket head screw to pull them onto the face-grip toothed surface. The face-grip adapters can be directly mounted on the basic module with rotation lock or on the add-on module H 75 mm with rotation lock.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Dimensions | CAD | Acc. | Price | Order |
|---|

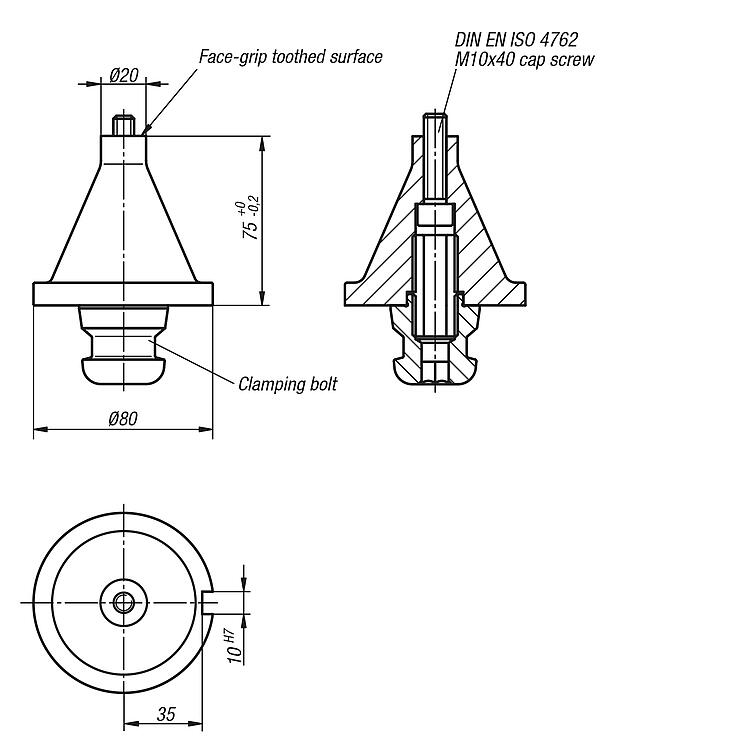

| 42205-2007510 | see drawing |  | | on request | |
