        Feet with threaded pin, DIN 6320 (Edition 1971)

Item description/product images

Show/filter all items

DescriptionMaterial:Carbon steel 1.1172.Version:Black oxidised.Note:Rest pads 02010 and 02020 can also be used as feet.Drawing reference:

Form A: Smooth face

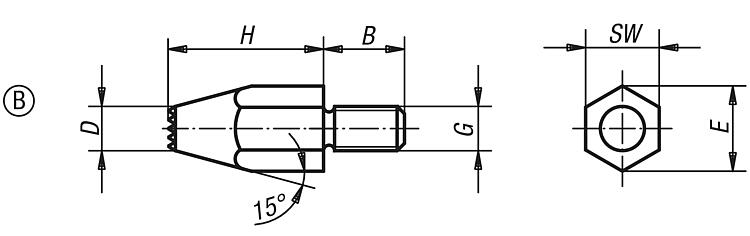

Form B: Carbide tips

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02030 Feet with threaded pin, DIN 6320 (Edition 1971)

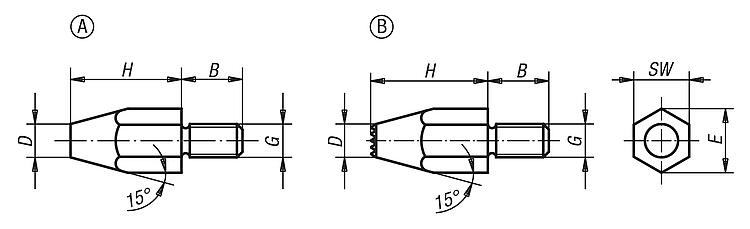

Drawings (total overview)

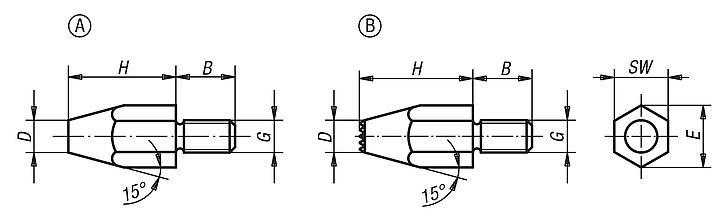

Feet with threaded pin, DIN 6320 (Edition 1971)

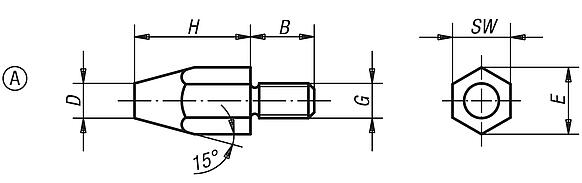

Feet with external thread, Form A with smooth face

More information

Drawings

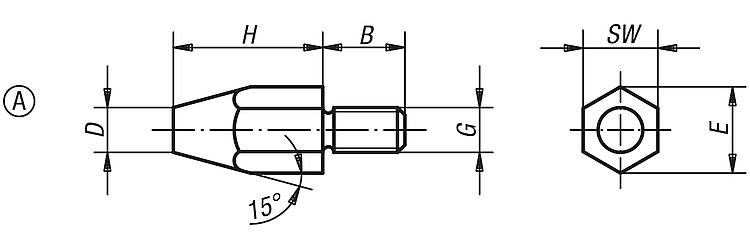

Feet with external thread, Form A with smooth face

Item selection/filter

Order No.	Form	D	G	H	B	E	SW	CAD	Acc.	Price	Order
02030-06	A	8	M6	10	11	11,5	10			on request
02030-061	A	6	M6	20	11	11,5	10			on request
02030-08	A	10	M8	15	13	15	13			on request
02030-081	A	9	M8	30	13	15	13			on request
02030-10	A	13	M10	20	16	19,6	17			on request
02030-101	A	13	M10	40	16	19,6	17			on request
02030-12	A	15	M12	25	20	21,9	19			on request
02030-121	A	15	M12	50	20	21,9	19			on request

Feet with external thread, Form B with carbide tips

More information

Drawings

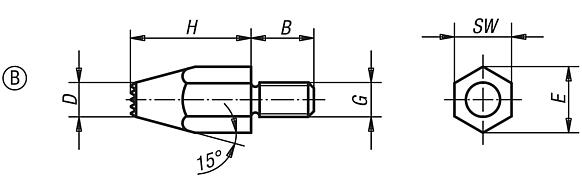

Feet with external thread, Form B with carbide tips

Item selection/filter

Order No.	Form	D	G	H	B	E	SW	CAD	Acc.	Price	Order
02030-083	B	11,5	M8	15	13	15	13			on request
02030-123	B	15	M12	25	20	21,9	19			on request
