Positioning feet with external thread and convex face, Form B

go back

Products
- Product overview
  - Flexible standard component system
    - Self-aligning pads Fixture feet Clamp rests Support elements
      - Rest pads and positioning feet
        Positioning feet

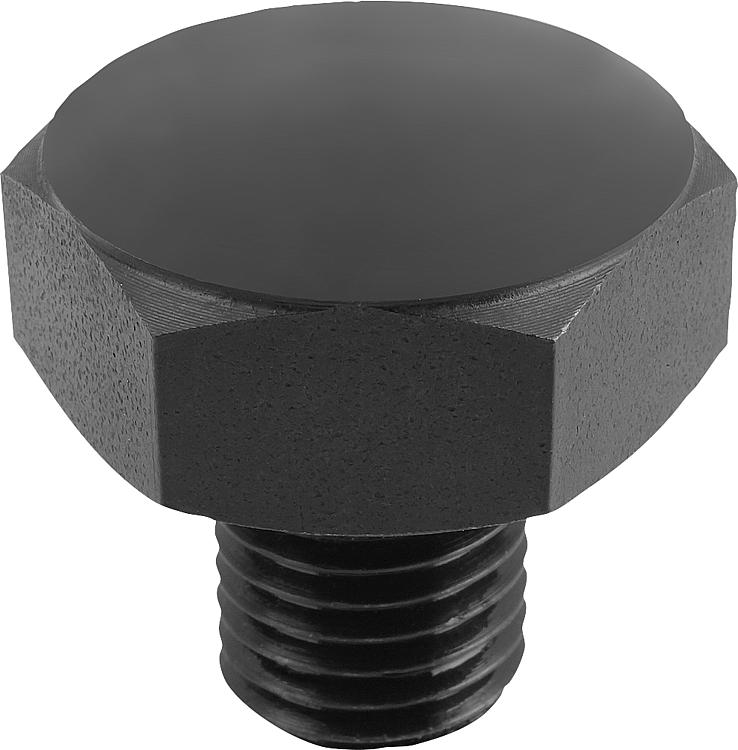

        Positioning feet with external thread and convex face, Form B

Item description/product images

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02040_B Positioning feet with external thread and convex face, Form B

167 kB

Drawings

Item selection/filter

Order No.	Form	B	G	H	E	SW	Tightening torque max. Nm	Price
02040-208	B	8	M6	8	14,4	13	8,5	on request
02040-2104	B	10	M6	10	14,4	13	8,5	on request
02040-2081	B	10	M8	8	19,4	17	18	on request
02040-2101	B	10	M8	10	19,4	17	18	on request
02040-2103	B	12	M10	10	21,9	19	32	on request
02040-2152	B	12	M10	15	21,9	19	32	on request
02040-210	B	14	M12	10	25,2	22	60	on request
02040-215	B	14	M12	15	25,2	22	60	on request
02040-2151	B	19	M16	15	33	30	140	on request
02040-2201	B	19	M16	20	33	30	140	on request
