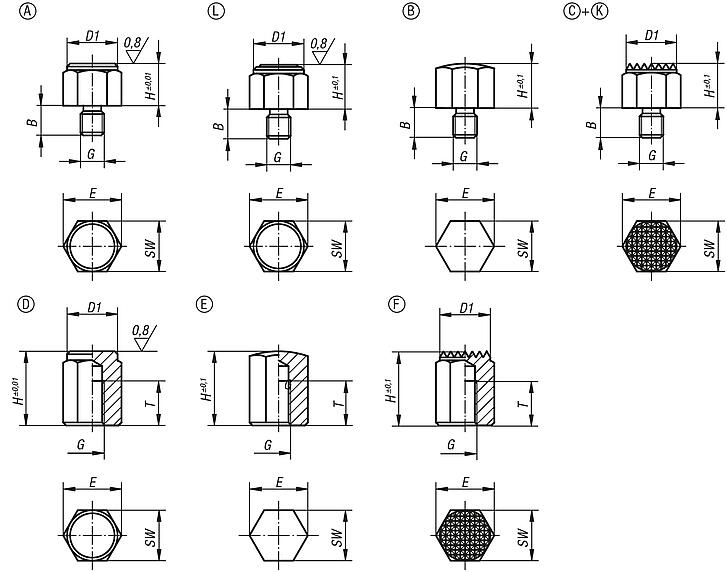

        Positioning feet

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction.Drawing reference:

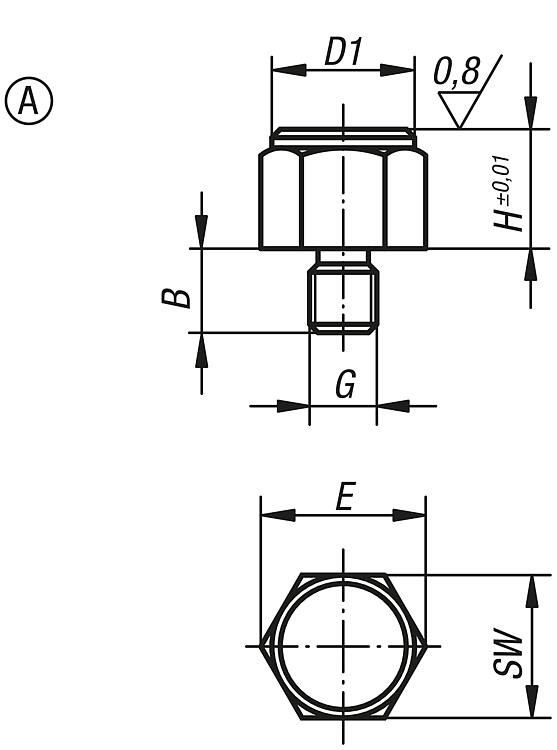

Form A: External thread and flat face

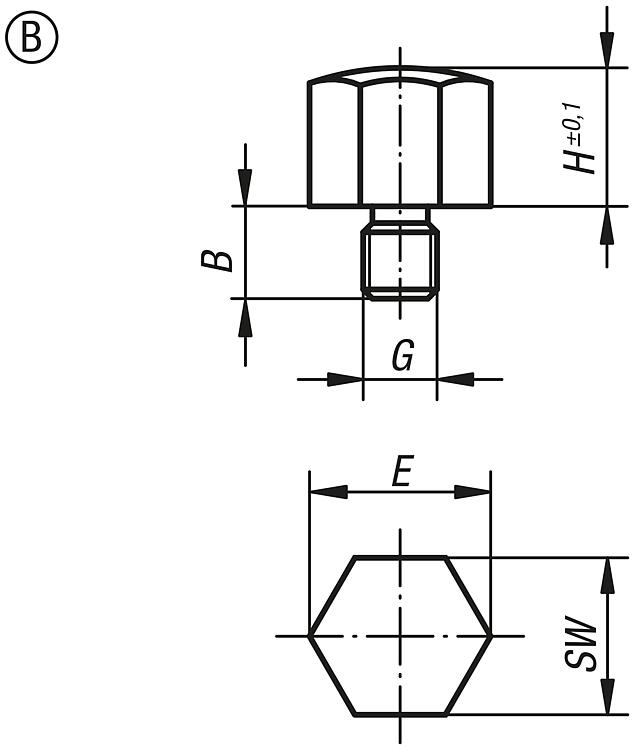

Form B: External thread and convex face

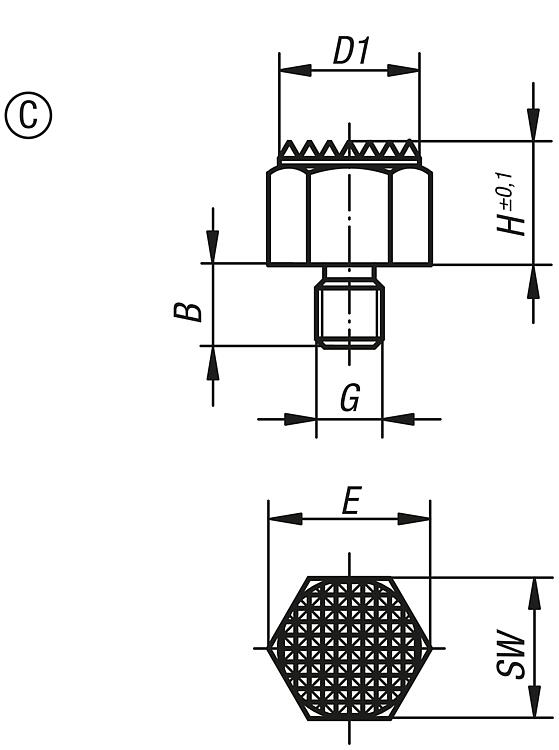

Form C: External thread and serrated face

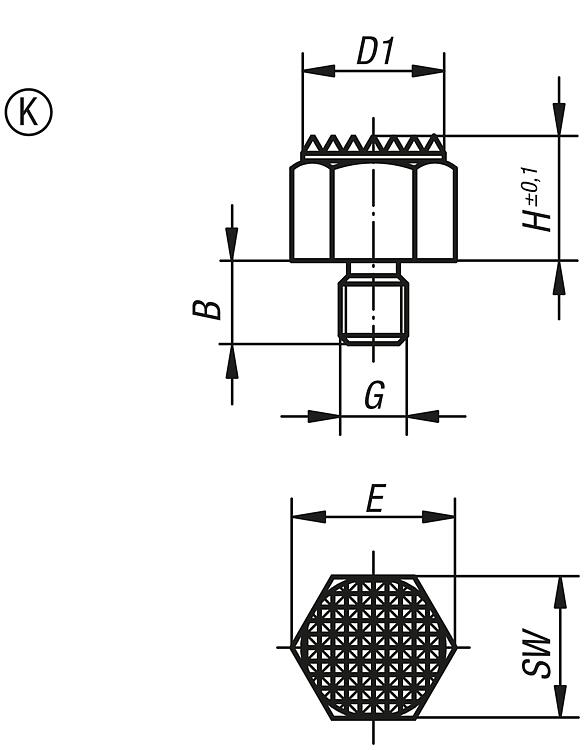

Form K: External thread and carbide serrated face

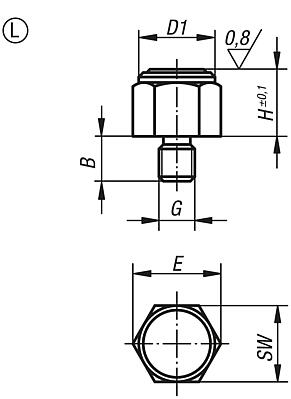

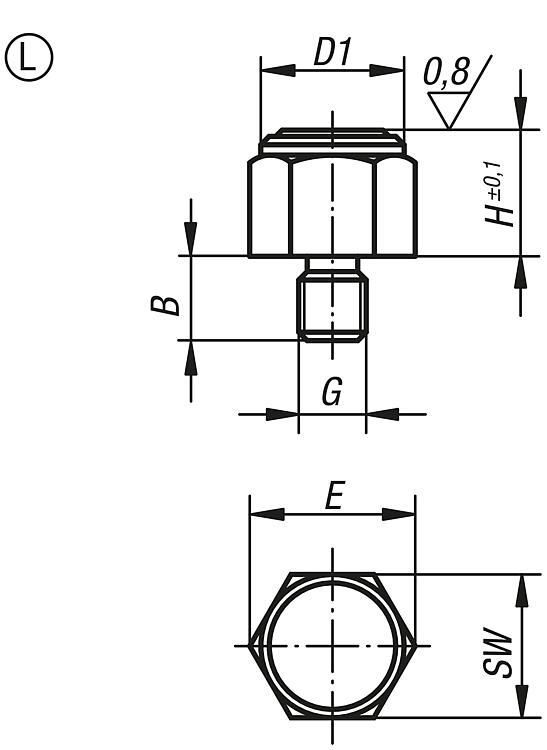

Form L: External thread and POM insert

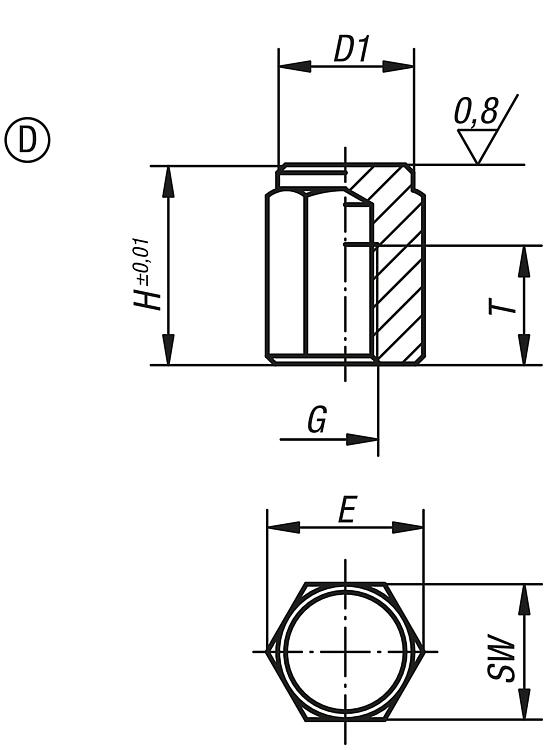

Form D: External thread and flat face

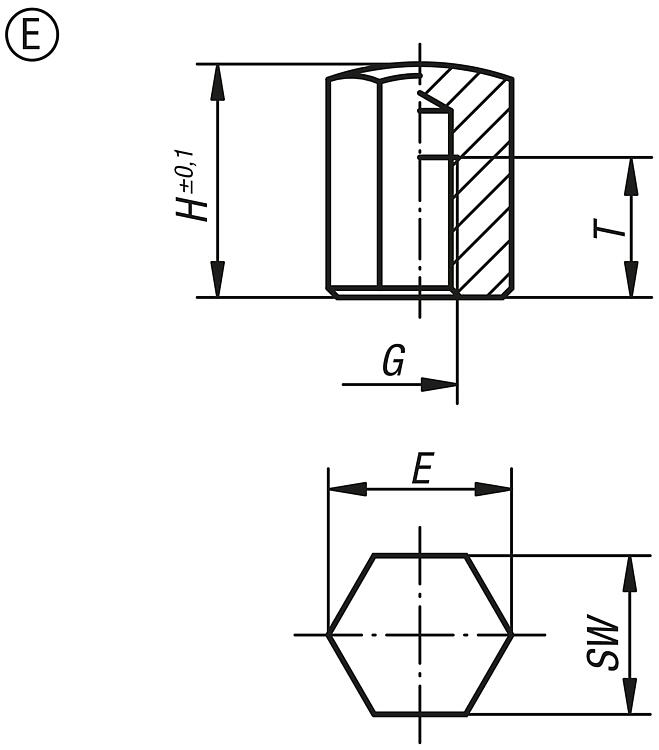

Form E: External thread and convex face

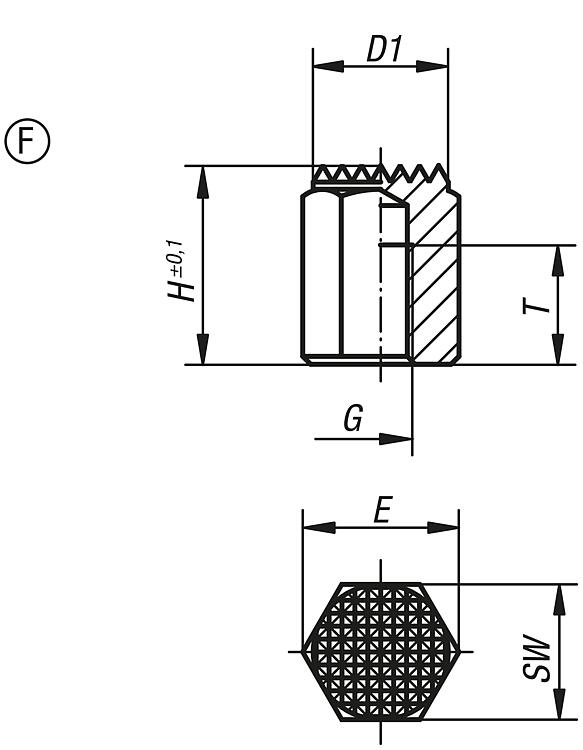

Form F: External thread and serrated face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02040 Positioning feet

239 kB

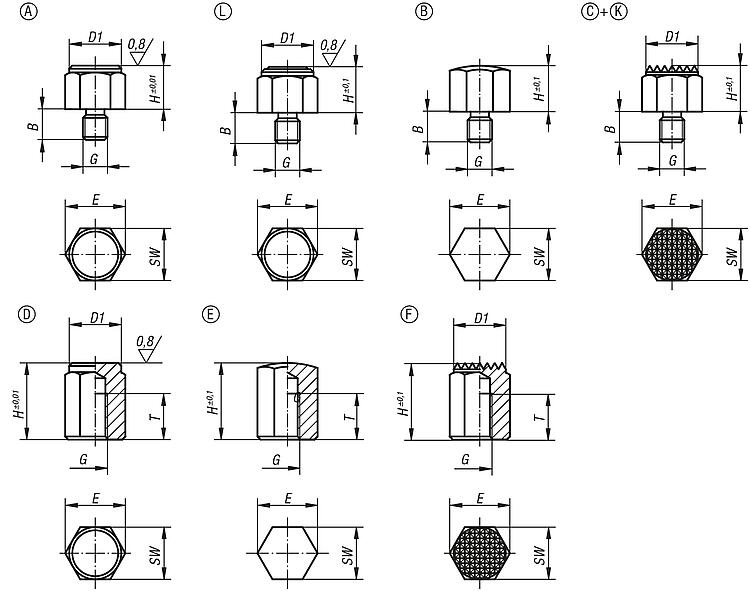

Drawings (total overview)

Positioning feet with external thread and flat face, Form A

More information

Drawings

Positioning feet with external thread and flat face, Form A

Item selection/filter

	A	8 10 12 14 19	13 17 19 22 30	M6 M8 M10 M12 M16	8 10 15 20	14,4 19,4 21,9 25,2 33	13 17 19 22 30	8,5 18 32 60 140				Reset
Order No.	Form	B	D1	G	H	E	SW	Tightening torque max. Nm	CAD	Acc.	Price	Order
02040-108	A	8	13	M6	8	14,4	13	8,5			on request
02040-1104	A	10	13	M6	10	14,4	13	8,5			on request
02040-1081	A	10	17	M8	8	19,4	17	18			on request
02040-1101	A	10	17	M8	10	19,4	17	18			on request
02040-1103	A	12	19	M10	10	21,9	19	32			on request
02040-1152	A	12	19	M10	15	21,9	19	32			on request
02040-110	A	14	22	M12	10	25,2	22	60			on request
02040-115	A	14	22	M12	15	25,2	22	60			on request
02040-1151	A	19	30	M16	15	33	30	140			on request
02040-1201	A	19	30	M16	20	33	30	140			on request

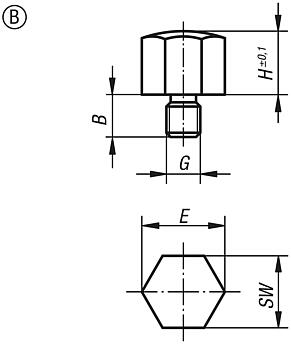

Positioning feet with external thread and convex face, Form B

More information

Drawings

Positioning feet with external thread and convex face, Form B

Item selection/filter

	B	8 10 12 14 19	M6 M8 M10 M12 M16	8 10 15 20	14,4 19,4 21,9 25,2 33	13 17 19 22 30	8,5 18 32 60 140				Reset
Order No.	Form	B	G	H	E	SW	Tightening torque max. Nm	CAD	Acc.	Price	Order
02040-208	B	8	M6	8	14,4	13	8,5			on request
02040-2104	B	10	M6	10	14,4	13	8,5			on request
02040-2081	B	10	M8	8	19,4	17	18			on request
02040-2101	B	10	M8	10	19,4	17	18			on request
02040-2103	B	12	M10	10	21,9	19	32			on request
02040-2152	B	12	M10	15	21,9	19	32			on request
02040-210	B	14	M12	10	25,2	22	60			on request
02040-215	B	14	M12	15	25,2	22	60			on request
02040-2151	B	19	M16	15	33	30	140			on request
02040-2201	B	19	M16	20	33	30	140			on request

Positioning feet with external thread and serrated face, Form C

More information

Drawings

Positioning feet with external thread and serrated face, Form C

Item selection/filter

	C	8 10 12 14 19	13 17 19 22 30	M6 M8 M10 M12 M16	8 10 15 20	14,4 19,4 21,9 25,2 33	13 17 19 22 30	8,5 18 32 60 140				Reset
Order No.	Form	B	D1	G	H	E	SW	Tightening torque max. Nm	CAD	Acc.	Price	Order
02040-308	C	8	13	M6	8	14,4	13	8,5			on request
02040-3102	C	10	13	M6	10	14,4	13	8,5			on request
02040-3081	C	10	17	M8	8	19,4	17	18			on request
02040-3101	C	10	17	M8	10	19,4	17	18			on request
02040-3103	C	12	19	M10	10	21,9	19	32			on request
02040-3152	C	12	19	M10	15	21,9	19	32			on request
02040-310	C	14	22	M12	10	25,2	22	60			on request
02040-315	C	14	22	M12	15	25,2	22	60			on request
02040-3151	C	19	30	M16	15	33	30	140			on request
02040-3201	C	19	30	M16	20	33	30	140			on request

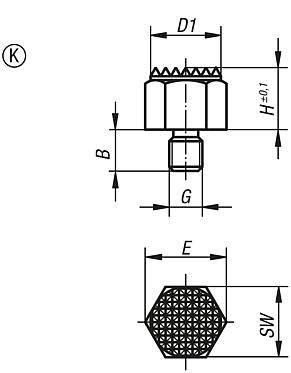

Positioning feet with external thread and carbide diamond grip, Form K

More information

Drawings

Positioning feet with external thread and carbide diamond grip, Form K

Item selection/filter

	K	10 14 19	17 22 30	M8 M12 M16	10 15 20	19,4 25,2 33	17 22 30	18 60 140				Reset
Order No.	Form	B	D1	G	H	E	SW	Tightening torque max. Nm	CAD	Acc.	Price	Order
02040-7101	K	10	17	M8	10	19,4	17	18			on request
02040-710	K	14	22	M12	10	25,2	22	60			on request
02040-715	K	14	22	M12	15	25,2	22	60			on request
02040-7151	K	19	30	M16	15	33	30	140			on request
02040-7201	K	19	30	M16	20	33	30	140			on request

Positioning feet with external thread and POM insert, Form L

More information

Drawings

Positioning feet with external thread and POM insert, Form L

Item selection/filter

	L	10 14 19	17 22 30	M8 M12 M16	10 15 20	19,4 25,2 33	17 22 30	18 60 140				Reset
Order No.	Form	B	D1	G	H	E	SW	Tightening torque max. Nm	CAD	Acc.	Price	Order
02040-8101	L	10	17	M8	10	19,4	17	18			on request
02040-810	L	14	22	M12	10	25,2	22	60			on request
02040-815	L	14	22	M12	15	25,2	22	60			on request
02040-8151	L	19	30	M16	15	33	30	140			on request
02040-8201	L	19	30	M16	20	33	30	140			on request

Positioning feet with internal thread and flat face, From D

More information

Drawings

Positioning feet with internal thread and flat face, From D

Item selection/filter

	D	13 17 19 22 30	M6 M8 M10 M12 M16	10 15 25 20 30 40 50	6 10 16 15 20 25	14,4 19,4 21,9 25,2 33	13 17 19 22 30				Reset
Order No.	Form	D1	G	H	T	E	SW	CAD	Acc.	Price	Order
02040-410	D	13	M6	10	6	14,4	13			on request
02040-4151	D	13	M6	15	10	14,4	13			on request
02040-4101	D	17	M8	10	6	19,4	17			on request
02040-415	D	17	M8	15	6	19,4	17			on request
02040-4251	D	17	M8	25	16	19,4	17			on request
02040-4201	D	19	M10	20	10	21,9	19			on request
02040-4302	D	19	M10	30	15	21,9	19			on request
02040-4401	D	19	M10	40	15	21,9	19			on request
02040-420	D	22	M12	20	10	25,2	22			on request
02040-425	D	22	M12	25	15	25,2	22			on request
02040-430	D	22	M12	30	20	25,2	22			on request
02040-440	D	22	M12	40	25	25,2	22			on request
02040-450	D	22	M12	50	25	25,2	22			on request
02040-4301	D	30	M16	30	20	33	30			on request
02040-4501	D	30	M16	50	25	33	30			on request

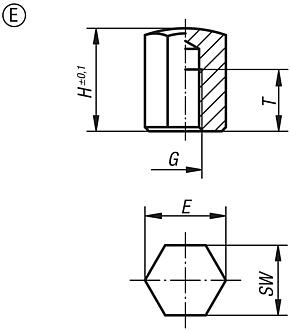

Positioning feet with internal thread and spherical face, Form E

More information

Drawings

Positioning feet with internal thread and spherical face, Form E

Item selection/filter

	E	M6 M8 M10 M12 M16	10 15 25 20 30 40 50	6 10 16 15 20 25	14,4 19,4 21,9 25,2 33	13 17 19 22 30				Reset
Order No.	Form	G	H	T	E	SW	CAD	Acc.	Price	Order
02040-510	E	M6	10	6	14,4	13			on request
02040-5151	E	M6	15	10	14,4	13			on request
02040-5101	E	M8	10	6	19,4	17			on request
02040-515	E	M8	15	6	19,4	17			on request
02040-5251	E	M8	25	16	19,4	17			on request
02040-5201	E	M10	20	10	21,9	19			on request
02040-5302	E	M10	30	15	21,9	19			on request
02040-5401	E	M10	40	15	21,9	19			on request
02040-520	E	M12	20	10	25,2	22			on request
02040-525	E	M12	25	15	25,2	22			on request
02040-530	E	M12	30	20	25,2	22			on request
02040-540	E	M12	40	25	25,2	22			on request
02040-550	E	M12	50	25	25,2	22			on request
02040-5301	E	M16	30	20	33	30			on request
02040-5501	E	M16	50	25	33	30			on request

Positioning feet with internal thread and serrated face, Form F

More information

Drawings

Positioning feet with internal thread and serrated face, Form F

Item selection/filter

	F	13 17 19 22 30	M6 M8 M10 M12 M16	10 15 25 20 30 40 50	6 10 16 15 20 25	14,4 19,4 21,9 25,2 33	13 17 19 22 30				Reset
Order No.	Form	D1	G	H	T	E	SW	CAD	Acc.	Price	Order
02040-610	F	13	M6	10	6	14,4	13			on request
02040-6151	F	13	M6	15	10	14,4	13			on request
02040-6101	F	17	M8	10	6	19,4	17			on request
02040-615	F	17	M8	15	6	19,4	17			on request
02040-6251	F	17	M8	25	16	19,4	17			on request
02040-6201	F	19	M10	20	10	21,9	19			on request
02040-6302	F	19	M10	30	15	21,9	19			on request
02040-6401	F	19	M10	40	15	21,9	19			on request
02040-620	F	22	M12	20	10	25,2	22			on request
02040-625	F	22	M12	25	15	25,2	22			on request
02040-630	F	22	M12	30	20	25,2	22			on request
02040-640	F	22	M12	40	25	25,2	22			on request
02040-650	F	22	M12	50	25	25,2	22			on request
02040-6301	F	30	M16	30	20	33	30			on request
02040-6501	F	30	M16	50	25	33	30			on request
