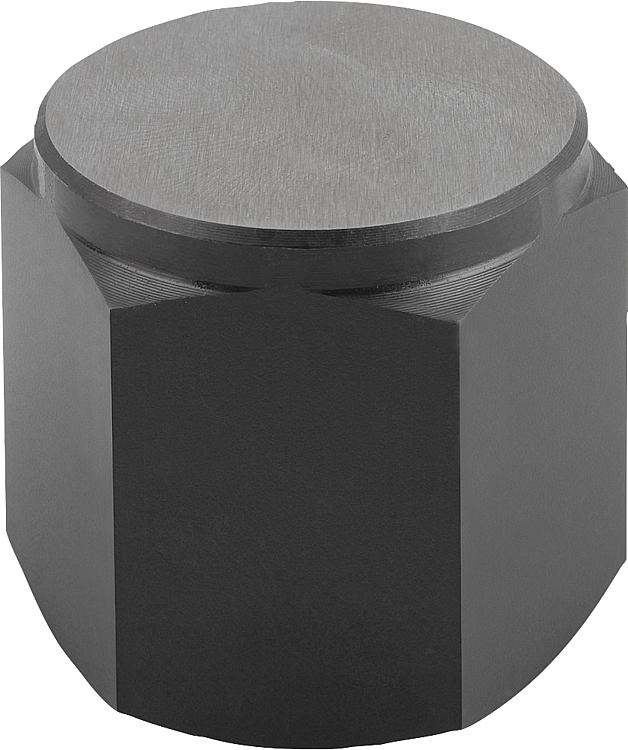

Positioning feet with internal thread and flat face, From D
02040_D

Positioning feet with internal thread and flat face, From D

go back

Item description/product images

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 02040_D Positioning feet with internal thread and flat face, From D 193 kB

Drawings

Positioning feet with internal thread and flat face, From D

Item selection/filter

Order No.

FormD1GHTESWCADAcc.PriceOrder
02040-410D13M610614,413 on request
02040-4151D13M6151014,413 on request
02040-4101D17M810619,417 on request
02040-415D17M815619,417 on request
02040-4251D17M8251619,417 on request
02040-4201D19M10201021,919 on request
02040-4302D19M10301521,919 on request
02040-4401D19M10401521,919 on request
02040-420D22M12201025,222 on request
02040-425D22M12251525,222 on request
02040-430D22M12302025,222 on request
02040-440D22M12402525,222 on request
02040-450D22M12502525,222 on request
02040-4301D30M1630203330 on request
02040-4501D30M1650253330 on request
