        Positioning feet with external thread and serrated face, Form C

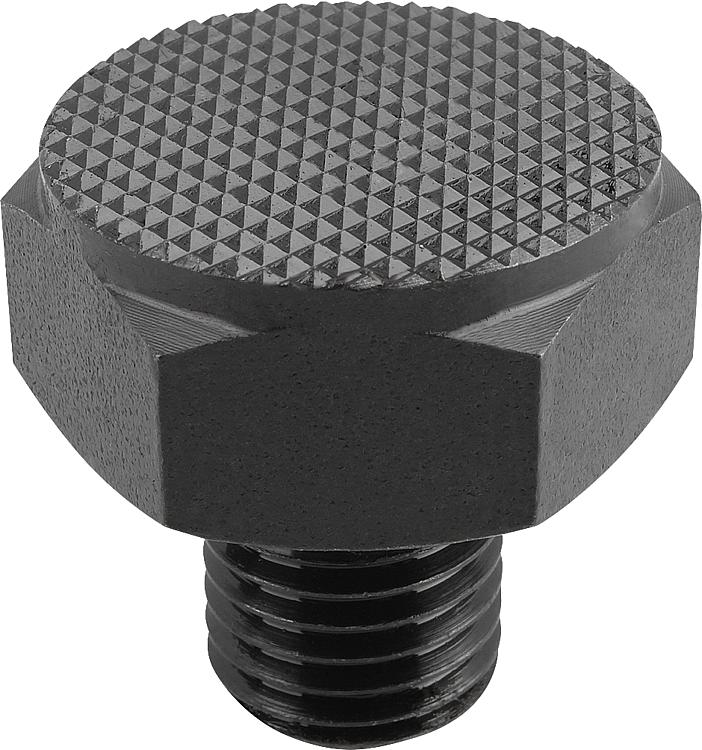

Item description/product images

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02040_C Positioning feet with external thread and serrated face, Form C

266 kB

Drawings

Item selection/filter

Order No.	Form	B	D1	G	H	E	SW	Tightening torque max. Nm	Price
02040-308	C	8	13	M6	8	14,4	13	8,5	on request
02040-3102	C	10	13	M6	10	14,4	13	8,5	on request
02040-3081	C	10	17	M8	8	19,4	17	18	on request
02040-3101	C	10	17	M8	10	19,4	17	18	on request
02040-3103	C	12	19	M10	10	21,9	19	32	on request
02040-3152	C	12	19	M10	15	21,9	19	32	on request
02040-310	C	14	22	M12	10	25,2	22	60	on request
02040-315	C	14	22	M12	15	25,2	22	60	on request
02040-3151	C	19	30	M16	15	33	30	140	on request
02040-3201	C	19	30	M16	20	33	30	140	on request
