        Rest pads adjustable with locknut

Item description/product images

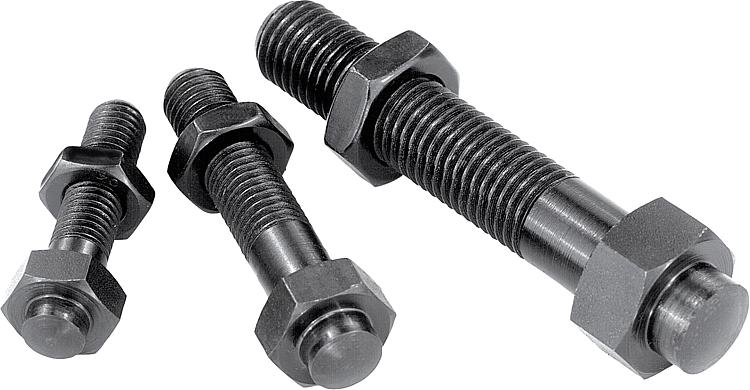

DescriptionMaterial:Carbon steel 1.1181.Version:Surface hardened, black oxidised.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02150 Rest pads adjustablewith locknut

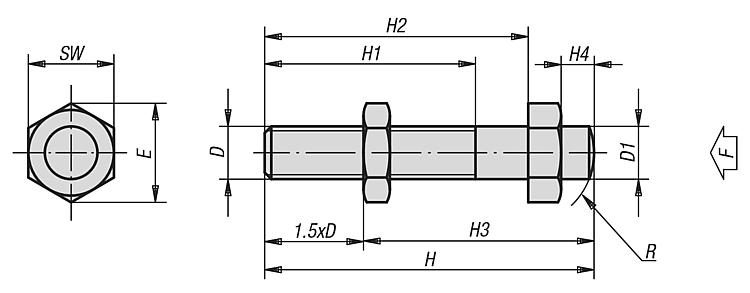

Drawings

Rest pads adjustablewith locknut

Item selection/filter

	M5 M6 M8 M10 M12 M14 M16 M20	5 6 8 10 12 14 16 20	50 52 70 95 100 120 110	32 40 50 63 70	40 56 80 100 88	20,5 21 22 25 42 36 51 44 45 65 50	42,5 41 38 37 55 52 77 79 76 96 90	5 6 8 10	11,5 15 19,6 21,9 25,4 27,7 34,6	10 13 17 19 22 24 30	7 8 11 14 16 20 25 28	1000 1430 2620 4180 6100 8320 11520 18000				Reset
Order No.	D	D1	H	H1	H2	H3 min.	H3 max.	H4	E	SW	R	F ca.N	CAD	Acc.	Price	Order
02150-05	M5	5	50	32	40	20,5	42,5	5	11,5	10	7	1000			on request
02150-06	M6	6	50	32	40	21	41	5	11,5	10	8	1430			on request
02150-08	M8	8	50	32	40	22	38	5	15	13	11	2620			on request
02150-10	M10	10	52	32	40	25	37	5	19,6	17	14	4180			on request
02150-101	M10	10	70	32	56	42	55	6	19,6	17	14	4180			on request
02150-12	M12	12	70	40	56	36	52	6	21,9	19	16	6100			on request
02150-121	M12	12	95	50	80	51	77	6	21,9	19	16	6100			on request
02150-14	M14	14	100	63	80	44	79	8	25,4	22	20	8320			on request
02150-16	M16	16	100	63	80	45	76	8	27,7	24	25	11520			on request
02150-161	M16	16	120	63	100	65	96	8	27,7	24	25	11520			on request
02150-20	M20	20	110	70	88	50	90	10	34,6	30	28	18000			on request
